Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless , Duplex , Nickel Alloy , Carbon Steel | Standard: | ASTM B16.49 , ASTM A403 , ISO 2851, JIS G 2312, DIN 3867 |
|---|---|---|---|
| Type: | Bending , Flange , Thready , 3PE Coating | DNT: | PT, MT, RT , ... |
| High Light: | ASTM B16.49 Pipe Spool,PED Pipe Spool,ASTM B16.49 Pipe Spool |
||

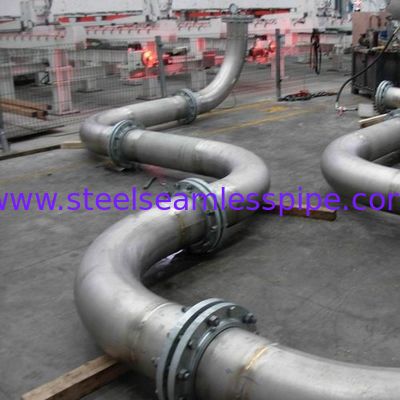

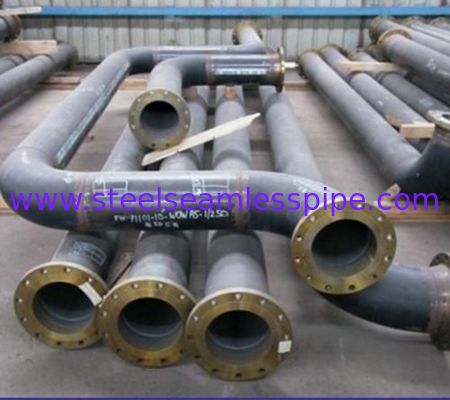

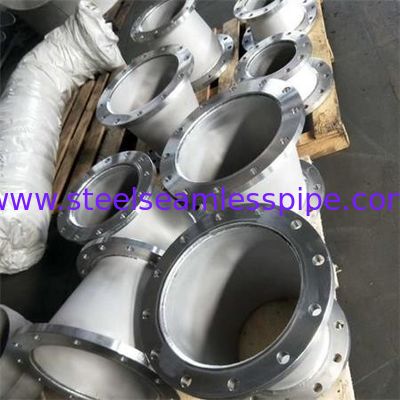

Pipe Spool , ASTM B16.49 , Bend pipe with flange type , 100% RT & PT
What makes us the leading induction pipe bending solutions provider?
Our Butt Welding equipment includes:
Standards:
End bevel: according to the bevel of welding pipe fittings construction all the size can product according to the clients' requiry.
Standard:
Pressure: SCH5 to SCH160
Bending radius(R): R=3D, 5D, 7D and 12D
Bending angle (θ):15°, 30°, 45°, 60°, 90°, 135°, 180°
Outer diamete(D): D≤1800mm
Wall thickness(T): T≤120mm
Straight Length (L): The length between two ends general from 300mm-1500mm
Materials
Bending, squeezing, pressing, forging, machining and more
| Duplex/Super Duplex |
| A182-F51 F60 1.4462 S31803 S32205 SAF2205 |
| A182-F53 1.4410 S32750 |
| A182-F55 1.4501 S32760 |
| A182-F44 6Mo 1.4547 S31254 254Mo |
| AL-6XN N08367 |
| Duplex Pipe Fittings Production Range |
| Specification: ASTM A 815, ASME SA 815, ASTM A 182, ASME SA 182 |
| Type: Seamless/ welded/ Fabricated |
| Range:OD 1/2 NB’’ TO 24 NB’’ , WT Sch 10S, 40S, 80S, 160s, XXS,… |
| Dimension: ANSI/ASME B16.9, B16.28, MSS-SP-43 |
| Buttweld Duplex Pipe Fittings |
| Seamless / Welded 100% Radiography Tested |
| Products Size |
| Duplex Elbows - Long Radius Duplex Stub Ends |
| Sizes 1/2’’ - 48’’ |
| Duplex Elbows - Short Radius Duplex Crosses |
| Duplex Reducing Elbows Duplex Reducing Crosses |
| Duplex 45°Elbows Duplex 180°LR Return Bends |
| Duplex Tees Duplex 180°SR Return Bends |
| Duplex Fabricated Tees Duplex Pipe Bends / Piggable Bends |
| Duplex Reducers Duplex Couplings |
| Duplex Concentric Reducers Duplex Pipe Nipples |
| Duplex Eccentric Reducers Duplex Forged / Plate Cut Rings |
| Duplex 3D Elbow Duplex End Caps |
| Duplex 5D Elbow Duplex Forged / Plate Circles |
| Stainless steel duplex flanges |
| Forged and plate flanges |
| Specification ASTM A182 / ASME SA182 F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61. |
| UNS Grade UNS S31803, S32205, S2205, S32550, S32750, S32760 |
| Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size 1/2’’ to 24’’ |
| Dimensions ANSI/ASME B16.5, B16.47 Series A & B, B16.47, BS4504, BS 10, EN-1092, DIN, etc. |
| Class/pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Products Size |
| Duplex Slip-On Flanges Duplex Threaded Flanges |
| 1/8’’ - 36’’ |
| Raised Face or Flat Face |
| Duplex Weld Neck Flanges Duplex Socket Weld Flanges |
| Duplex Blind Flanges Duplex Reducing Flanges |
| Duplex Lap Joint Flanges Duplex Plate Flanges |
