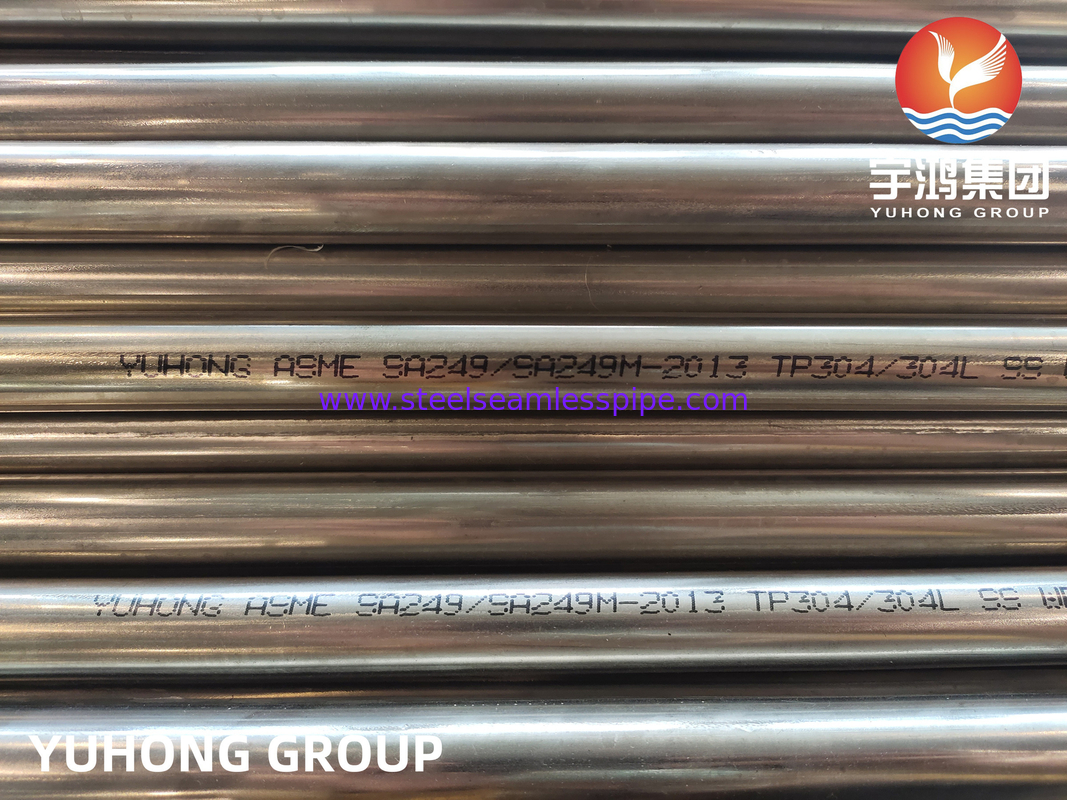

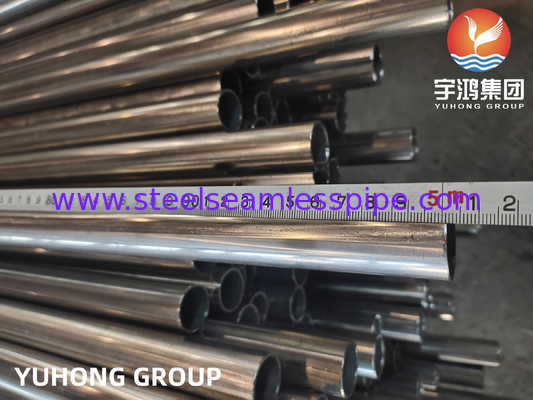

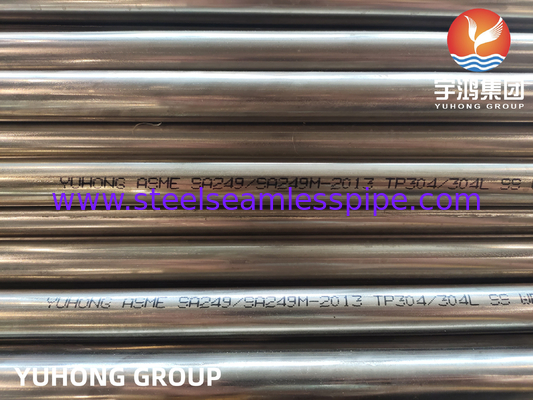

ASTM A249 / A249M Stainless Steel Welded Tube TP304L TP316L TP304 Bright Annealed Welded Tube 38.1*1.2*3000mm

ASTM A249 / A249M Stainless Steel Welded Tube TP304L TP316L TP304 Bright Annealed Welded Tube 38.1*1.2*3000mm

  • ASTM A249 / A249M Stainless Steel Welded Tube TP304L TP316L TP304 Bright Annealed  Welded Tube 38.1*1.2*3000mm
  • ASTM A249 / A249M Stainless Steel Welded Tube TP304L TP316L TP304 Bright Annealed  Welded Tube 38.1*1.2*3000mm
  • ASTM A249 / A249M Stainless Steel Welded Tube TP304L TP316L TP304 Bright Annealed  Welded Tube 38.1*1.2*3000mm
  • ASTM A249 / A249M Stainless Steel Welded Tube TP304L TP316L TP304 Bright Annealed  Welded Tube 38.1*1.2*3000mm
ASTM A249 / A249M Stainless Steel Welded Tube TP304L TP316L TP304 Bright Annealed  Welded Tube 38.1*1.2*3000mm
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001
Model Number: TP304, TP304L, TP304H, TP304LN, 1.4301, 1.4306, 1.4307 , 08X18H10
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: ACCORDING TO CLIENT'S REQUEST
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 10days
Supply Ability: 1500 tons per month
Contact Now
Detailed Product Description
Material: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… OD: 6.35mm TO 114.3mm
WT: 0.71mm TO 3.4 Mm Length: 6 Meters Or According To Customer's Request
High Light:

stainless welded pipe

,

stainless steel coiled tubing


STAINLESS STEEL WELDED PIPE,ASTM A312 ASTM A358 TP316/316L TP321/321H BEVELLED END 100% RT. UT. HT. ET



YUHONG GROUP deal with stainless steel welded pipe and tube already more than 10 years, every
year sell more than 5000 tons of stainless steel pipe and tube. Our client already cover more than 45
countries. Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical,
Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.
Standard Specification:
ASTM A249 / A249M Standard Specification for Welded Austenitic Steel Boiler, Superheater,
Heat-Exchanger, and Condenser Tubes
ASTM A269:Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing
for General Service
ASTM A312 / A312M:Standard Specification for Seamless, Welded, and Heavily Cold Worked
Austenitic Stainless Steel Pipes
ASTM A358/A358M:Standard Specification for Electric-Fusion-Welded Austenitic
ASTM A778:Standard Specification for Welded, Unannealed Austenitic Stainless
Steel Tubular Products
ASTM A789 / A789M:Standard Specification for Seamless and Welded Ferritic Austenitic Stainless Steel Tubing for General Service
ASTM A790 / A790M:Standard Specification for Seamless and Welded Ferritic Austenitic Stainless Steel Pipe
Others like BS, JIS , DIN , EN , GOST standard we all can supply .





Material Grade:



American Standard

Austenitic Steel:
TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…
Duplex Steel :
S32101,S32205,S31803,S32304,S32750, S32760, S31254
Others:TP405,TP409, TP410, TP430, TP439,...

Europen Standard 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501
GOST 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ





Size Range:



Production Outside Diameter Wall Thickness
Welded Pipe 6.00mm to 830mm 0.5mm to 48mm







Final Finishing:
Solution Annealed & Pickled.
Bright Annealed.





ASTM A249 / A249M TP304L TP316L TP304 Stainless Steel Heat Exchanger tube Bright Annealed Welded Tube ASME SA213

ASTM A249 / A249M:Standard Specification for Welded Austenitic Steel Boiler, Superheater

Heat-Exchanger, and Condenser Tubes.

Other Standard:DIN 17456 , DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463,...



Some of the quality tests carried out by us includes:



Corrosion Test Conducted only when specially requested by the client

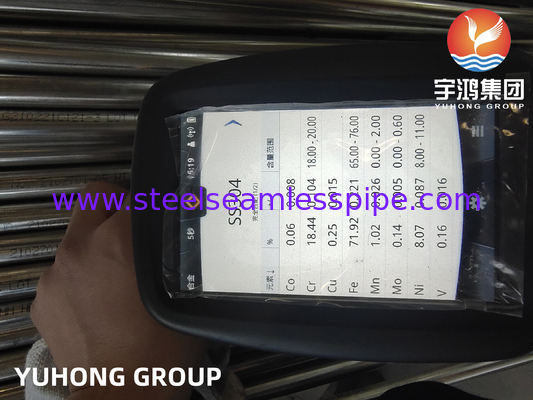

Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections










Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing
  •








ASTM A249 / A249M Stainless Steel Welded Tube TP304L TP316L TP304 Bright Annealed  Welded Tube 38.1*1.2*3000mm 0
