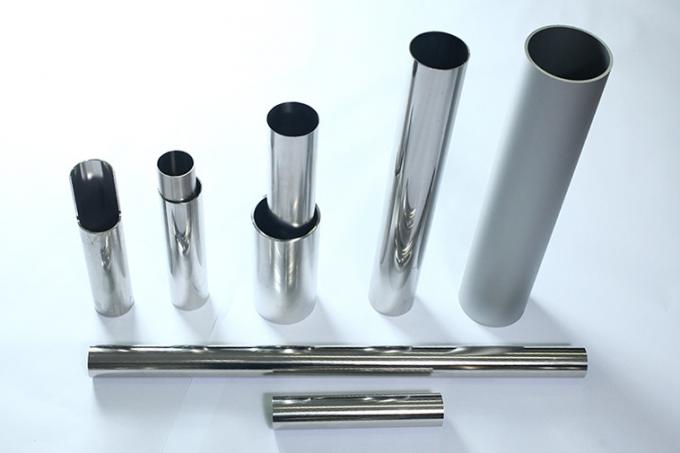

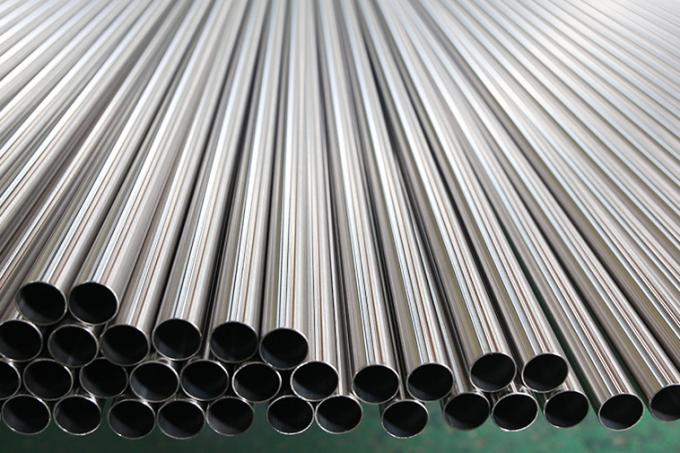

A554 TP304/304L TP316/316L Stainless Steel Decorative Tube / Pipe for Baluster Handrail -Satin / mirror

A554 TP304/304L TP316/316L Stainless Steel Decorative Tube / Pipe for Baluster Handrail -Satin / mirror

    • A554 TP304/304L TP316/316L Stainless Steel Decorative Tube / Pipe for Baluster Handrail -Satin / mirror
    • A554 TP304/304L TP316/316L Stainless Steel Decorative Tube / Pipe for Baluster Handrail -Satin / mirror
    • A554 TP304/304L TP316/316L Stainless Steel Decorative Tube / Pipe for Baluster Handrail -Satin / mirror
    • A554 TP304/304L TP316/316L Stainless Steel Decorative Tube / Pipe for Baluster Handrail -Satin / mirror
    • A554 TP304/304L TP316/316L Stainless Steel Decorative Tube / Pipe for Baluster Handrail -Satin / mirror
    • A554 TP304/304L TP316/316L Stainless Steel Decorative Tube / Pipe for Baluster Handrail -Satin / mirror
  • A554 TP304/304L TP316/316L Stainless Steel Decorative Tube / Pipe for Baluster Handrail -Satin / mirror

    Product Details:

    Place of Origin: China
    Brand Name: YUHONG
    Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001
    Model Number: TP304, TP304L, TP304H, TP304LN, 1.4301, 1.4306, 1.4307 , 08X18H10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: ACCORDING TO CLIENT'S REQUEST
    Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
    Delivery Time: 10days
    Supply Ability: 1500 tons per month
    Contact Now
    Detailed Product Description
    Material: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… OD: 6.35mm TO 114.3mm
    WT: 0.71mm TO 3.4 Mm

    Welded Stainless Steel Mechanical Tubing

    Overview
    1.1 This specification covers welded stainless steel tubing for mechanical applications where appearance, mechanical properties, or corrosion resistance is needed.
    1.2 This specification covers as-welded or cold-reduced mechanical tubing in sizes to 16 in. (406.4 mm) outside diameter, inclusive (for round tubing) and in wall thicknesses 0.020 in. (0.51 mm) and over.
    1.3 Tubes shall be furnished in one of the following shapes as specified by the purchaser: round, square, rectangular, or special.
    1.4 Supplementary requirements of an optional nature are provided and when desired shall be so stated in the order.
    1.5 Values stated in inch-pound units, in accordance with the specifications, are to be regarded as the standard.

    Tube Gauge for ASTM A554 ASTM A554 Stainless Steel Welded Tubing, Polished, Plain End , TP304 / 304L TP316 / 316L TP321 / 321H Round

    O.D./In. Wall/In. Wt./Ft.
    .500 .049 .236
    .625 .035 .221
    .750 .065 .476
    .875 .035 .314
    1.000 .049 .498
    1.000 .065 .649
    1.000 .083 .813
    1.250 .049 .629
    1.250 .065 .823
    1.500 .035 .548
    1.500 .065 .996
    O.D./In. Wall/In. Wt./Ft.
    1.625 .065 1.083
    1.750 .035 .641
    1.750 .120 2.090
    1.875 .049 .956
    2.000 .035 .735
    2.000 .049 1.021
    2.000 .065 1.343
    2.250 .049 1.152
    2.500 .049 1.283
    3.000 .065 2.030
    4.000 .065 2.730


    Tube Gauge for ASTM A554 ASTM A554 Stainless Steel Welded Tubing, Polished, Plain End , TP304 / 304L TP316 / 316L TP321 / 321H Square

    O.D./In. Wall/In. Wt./Ft.
    .750 x .750 .065 .605
    .750 x .750 .120 1.028
    1.000 x 1.000 .049 .634
    1.000 x 1.000 .065 .827
    1.000 x 1.000 .083 1.035
    1.000 x 1.000 .120 1.436
    1.250 x 1.250 .065 1.047
    1.250 x 1.250 .083 1.317
    1.250 x 1.250 .120 1.844
    1.500 x 1.500 .065 1.268
    1.500 x 1.500 .083 1.599
    1.500 x 1.500 .120 2.252
    1.500 x 1.500 .180 3.230
    1.750 x 1.750 .120 2.660
    2.000 x 2.000 .065 1.710
    2.000 x 2.000 .083 2.164
    2.000 x 2.000 .120 3.050
    2.000 x 2.000 .180 4.136
    2.000 x 2.000 .250 5.410
    O.D./In. Wall/In. Wt./Ft.
    2.500 x 2.500 .083 2.730
    2.500 x 2.500 .120 3.900
    2.500 x 2.500 .180 5.352
    3.000 x 3.000 .083 3.290
    3.000 x 3.000 .109 4.250
    3.000 x 3.000 .120 4.750
    3.000 x 3.000 .180 6.578
    3.000 x 3.000 .250 8.810
    4.000 x 4.000 .120 6.460
    4.000 x 4.000 .180 9.351
    4.000 x 4.000 .250 12.210
    5.000 x 5.000 .250 16.350
    6.000 x 6.000 .250 19.020
    6.000 x 6.000 .375 27.120
    6.000 x 6.000 .500 38.123
    8.000 x 8.000 .250 26.528
    8.000 x 8.000 .375 39.291
    8.000 x 8.000 .500 51.721


    Tube Gauge for ASTM A554 ASTM A554 Stainless Steel Welded Tubing, Polished, Plain End , TP304 / 304L TP316 / 316L TP321 / 321H Rectangular

    O.D./In. Wall/In. Wt./Ft.
    .750 x 1.500 .065 .937
    1.000 x 1.500 .083 1.317
    1.000 x 2.000 .065 1.270
    1.000 x 2.000 .120 2.252
    1.000 x 3.000 .065 1.710
    1.500 x 2.500 .065 1.710
    1.500 x 3.000 .120 3.480
    2.000 x 3.000 .120 3.900
    2.000 x 3.000 .180 5.352
    O.D./In. Wall/In. Wt./Ft.
    2.000 x 4.000 .120 4.750
    2.000 x 4.000 .180 6.578
    2.000 x 4.000 .250 8.810
    2.000 x 5.000 .180 8.060
    2.000 x 6.000 .180 9.420
    2.000 x 6.000 .250 12.210
    3.000 x 4.000 .120 5.610
    4.000 x 6.000 .180 11.900
    4.000 x 6.000 .250 15.620
    4.000 x 6.000 .375 23.994
    4.000 x 6.000 .500 31.324


    ASTM A554 Stainless Steel Welded Tubing, Polished, Plain End , TP304 / 304L TP316 / 316L TP321 / 321HASTM A554 Stainless Steel Welded Tubing, Polished, Plain End , TP304 / 304L TP316 / 316L TP321 / 321H
