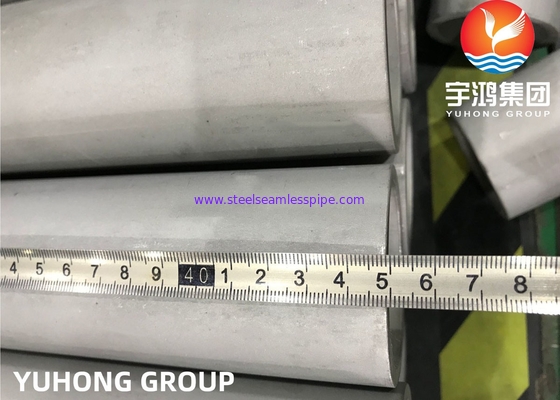

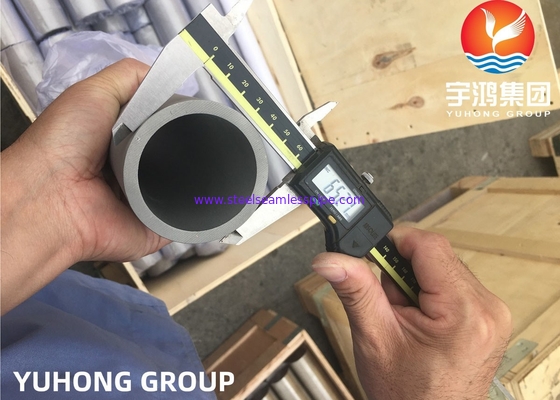

Corrosion Resistant Alloy tube, Inconel 600,601,625,690, 718. Monel 400, seamless, heat exchanger / boiler tube

Corrosion Resistant Alloy tube, Inconel 600,601,625,690, 718. Monel 400, seamless, heat exchanger / boiler tube

    • Corrosion Resistant Alloy tube, Inconel 600,601,625,690, 718. Monel 400, seamless, heat exchanger / boiler tube
    • Corrosion Resistant Alloy tube, Inconel 600,601,625,690, 718. Monel 400, seamless, heat exchanger / boiler tube
    • Corrosion Resistant Alloy tube, Inconel 600,601,625,690, 718. Monel 400, seamless, heat exchanger / boiler tube
    • Corrosion Resistant Alloy tube, Inconel 600,601,625,690, 718. Monel 400, seamless, heat exchanger / boiler tube
  • Corrosion Resistant Alloy tube, Inconel 600,601,625,690, 718. Monel 400, seamless, heat exchanger / boiler tube

    Product Details:

    Place of Origin: CHINA
    Brand Name: YUHONG
    Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
    Model Number: Inconel 600,601,625,690, 718

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 KGS
    Price: negotiable
    Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
    Delivery Time: 15days->
    Supply Ability: 600 tons per month
    Contact Now
    Detailed Product Description
    Material Grade: Incoloy 800(1.4876), Incoloy 800H(1.4958),800HT(1.4959), 825(2.4858). Inconel 600(2.4816), 601(2.4851), 625(2.4856),690(2.4642), 718(2.4668). Monel 400(2.4360/2.4361) Standard: B165,B424,B407,B167, B444
    NDT: EDDY CURRENT TEST, HYDROSTATIC TEST

    Corrosion Resistant Alloy 625 Inconel Tubing , ASME SB444 GR.2 Seamless Pipe



    Inconel ® 625 is a nonmagnetic, corrosion and oxidation resistant, nickel-base alloy. It has high strength and toughness in the temperature range cryogenic to 2000°F (1093°C) which is derived largely from the solid solution effects of the refractory metals, columbium and molybdenum, in a nickel-chromium matrix. Alloy 625 has excellent fatigue strength and stress - corrosion cracking resistance to chloride ions.

    Typical applications for Alloy 625 have included heat shields, furnace hardware, gas turbine engine ducting, combustion liners, spray bars, chemical plant hardware and special seawater applications.Available forms are seamless pipe, welded pipe, seamless tube, welded tube, bar, wire, sheet, plate, forgings, pipe fittings and flanges like inconel 625 plates, inconel 625 pipe, inconel 625 reducer, inconel 625 round bar, inconel 625 fittings, inconel 625 elbow, inconel 625 sheet, inconel 625 tube etc.

    Chemical Analysis of ALLOY 625 (UNS N06625)
    Common Names : Inconel 625®, Chronin® 625, Altemp® 625, Haynes® 625, Nickelvac® 625, Nicrofer® 6020

    C MN P S Si Cr Ni Mo Cu Co Cb Ta Ti Al Fe Nb Other
    0.1 .50 max .015 max .015 max .50 max 20.0 -23.0 58.0 min 8.0 -10.0   1.0 max   0.40 max 0.40 max 5.0 max 3.15 -4.15



    Specifications

    International Specifications Sheet/Plate Round Bar Pipe Tube Fittings Forgings
    BS 3072, BS 3074, BS 3076, NA 21 DIN 17744, DIN 17750, DIN 17751, DIN 17752, DIN 17754. Werkstoff Nr. 2.4856 AFNOR NC 22 D Nb ASME SB-443 AMS 5599 AMS 5869 ASME SB-446 AMS 5666 AMS 5837 ASME SB-444 ASME SB-829 ASME SB-775 ASME SB-705 ASME SB-444 ASME SB-829 ASME SB-751 ASME SB-704 AMS 5581 ASME SB- 366 ASME SB- 564 AMS 5666





    Inconel 625 Alloy is frequently used for:

    • Heat shields
    • Tubing
    • Combustion and chimney liners
    • Valves
    • Piping
    • Distillation columns
    • Bubble caps
    • Reaction vessels
    • Heat exchangers
    • Furnace hardware
    • Gas turbine engine duct work
    • Equipment used to produce acid
    • Sour gas production tubes



    Corrosion Resistant Alloy 625 Inconel Tubing , ASME SB444 GR.2  Inconel 625 Seamless tube




    Tag:

    inconel tube,

    nickel alloy pipes

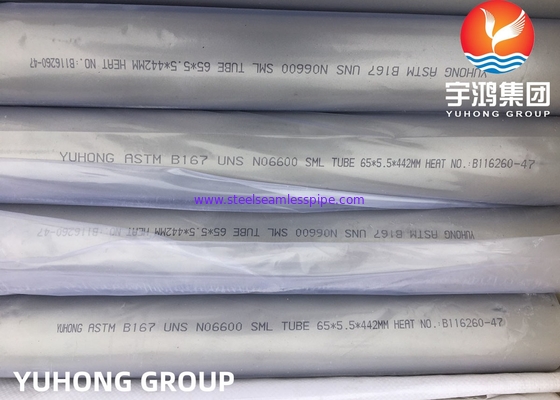

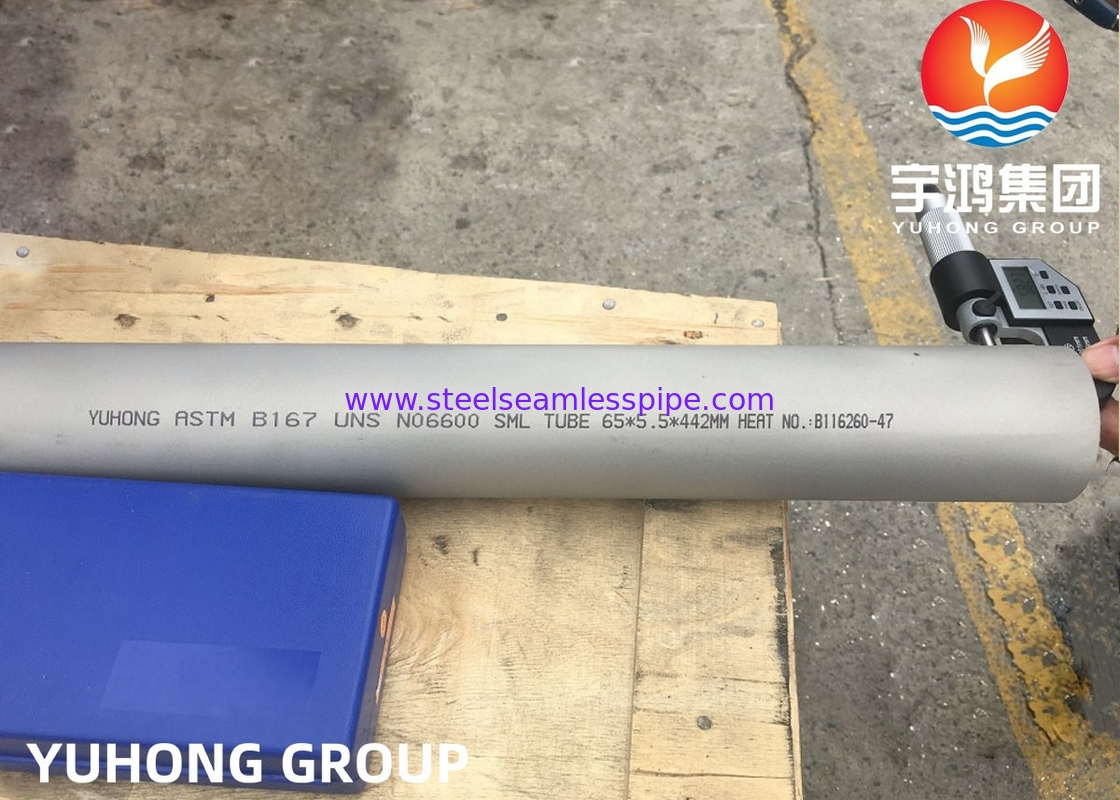

    Alloy 600 UNS N06600 Inconel 600® Tubing Nonmagnetic High Temperature



    Description

    Alloy 600 is a nonmagnetic, nickel-based high temperature alloy possessing an excellent combination of high strength, hot and cold workability, and resistance to ordinary form of corrosion.
    This alloy also displays good heat resistance and freedom from aging or stress corrosion throughout the annealed to heavily cold worked condition range.



    Corrosion Resistance

    The high chromium content of alloy 600 raises its oxidation resistance considerably above that of pure nickel, while its high nickel content provides good corrosion resistance under reducing conditions.
    This alloy exhibits high levels of resistance to stress and salt water, exhaust gases, and most organic acids and compounds.



    Heat Treatment

    Alloy 600 is not an age hardening alloy; cold working is the only available means of hardening. Softening by annealing begins at about 1600°F (871°C), and is reasonably complete after 10 to 15 minutes of heating at 1800°F (982°C). Above this temperature, grain growth may be objectionable, although very brief heating at 1900°F will cause complete softening without undue grain growth. Since the rate of cooling has no effect on the softening, the material may be water quenched or air cooled.


    Workability

    Hot Working/Forging
    Low sulfur reducing furnace atmospheres should be used in forging. Major hot working should be done between 2300/1850°F, while light working may be continued as low as 1600°F. No hot working should be attempted between 1600/1200°F due to lower ductility in that range.

    Machinability
    Alloy 600 is machinable in both the hot worked and annealed conditions. Because considerable heat is generated in machining this alloy, high-speed steel, cast nonferrous or cemented carbide tools should be used. The tools should be kept sharp.
    Lathe turning speeds with high-speed and nonferrous tools are 35/45 sfm (0.18/0.23 m/s); speeds with cemented carbide tools are 100/175 sfm (0.51/0.89 m/s). (This data should be used as a guide for initial machine setup only. The figures used are averages. On certain work, the nature of the part may require adjustment of speeds and feeds.)
    Sulfur-based oil should be used as a lubricant, but should be completely removed before the machined part is exposed to elevated temperatures, as in welding.

    Cold Working
    For higher properties, alloy 600 can be cold worked below 1200°F (649°C).

    Welding
    Alloy 600 can be joined by the usual welding , brazing, and soldering process.



    Typical Mechanical Properties

    Typical Mechanical Properties
    Various forms and conditions

    Form
    and
    Condition
    Tensile Strength 0.2%
    Yield Strength
    % Elongation
    in 2"
    %
    Reduction
    of Area
    Rockwell
    Hardness
    Rod and Bar
    Cold-drawn
    Annealed
    As-drawn
    Hot rolled
    Annealed
    As-rolled
    Hot-finished
    Strip
    Annealed


    80-100
    105-150

    80-100
    85-120
    80-120

    80-100


    552-689
    724-1034

    552-689
    586-827
    586-827

    552-689


    25-50
    80-125

    30-50
    35-90
    35-90

    30-45


    172-345
    552-862

    207-345
    241-621
    241-621

    207-310


    55-35
    30-10

    55-35
    50-30
    50-30

    55-35


    70-60
    60-30

    70-60
    65-50
    65-50

    ----


    65-85B
    90B-30C

    65-85B
    75-95B
    75-95B

    84B max.

    Average Room Temperature Tensile Data

    Form Condition Ultimate Tensile Strength,
    Ksi (MPa)
    Yield Strength at 0.2% offset,
    Ksi (MPa)
    Elongation in 2 in. (50.8mm)
    or 4D, percent
    Sheet
    Plate
    Bar/Billet
    Sheet, Plate, Strip, Bar
    Annealed
    Annealed
    Annealed
    Annealed
    98 (676)
    95 (655)
    95 (655)
    80 (550)*
    42 (290)
    41 (283)
    41 (283)
    35 (240)*
    40
    45
    45
    30*

    * - minimum





    Sheet/Plate Round Bar Pipe Tube Fittings Forgings
    ASME SB-168 AMS 5540 ASME SB-166 AMS 5665 ASME SB-167 ASME SB-829 ASME SB-517 ASME SB-775 ASME SB-163 ASME SB-516 ASME SB751 AMS 5580 ASME SB-366 ASME SB-564 AMS 5665



    Applications

    Some typical applications are:

    • Barge and tank truck liners
    • Carburizing atmospheres
    • Ethylene dichloride crackers
    • Furnace trays, mufflers, hangers
    • Gasoline stabilizer production
    • MgCl2 evaporates
    • Phenol condensers
    • Soap manufacture
    • Titanium dioxide
    • Vegetable and fatty acid vesselsAlloy 600 UNS N06600 Inconel 600® Tubing Nonmagnetic High Temperature
