ASTM A105 ASME B16.34 Carbon Steel Flange

ASTM A105 ASME B16.34 Carbon Steel Flange

  • ASTM A105 ASME B16.34 Carbon Steel Flange
  • ASTM A105 ASME B16.34 Carbon Steel Flange
  • ASTM A105 ASME B16.34 Carbon Steel Flange
  • ASTM A105 ASME B16.34 Carbon Steel Flange
ASTM A105 ASME B16.34 Carbon Steel Flange
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: API , ABS, DNV, GL , LR, NK
Model Number: ASTM A105 20'' 150# ASME B16.5 B16.9 B16.11 B16.34 CARBON STEEL FLANGE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Size: 1/2"-120" Specification: ASTM A105 ASME B16.34 Carbon Steel Flange
Pressure: Class150/300/600/9001500/2500 Standard: ASTM A105
Product Name: Pipe Flange Type: Threaded Flange,Slip On Flange,socket Weld Flange,weld Neck Flange,LAP Joint Flange
Color: Black Item: Steel Flange
High Light:

ASTM A105 Carbon Steel Flange

,

ASME B16.34 Carbon Steel Flange

,

a105 flange

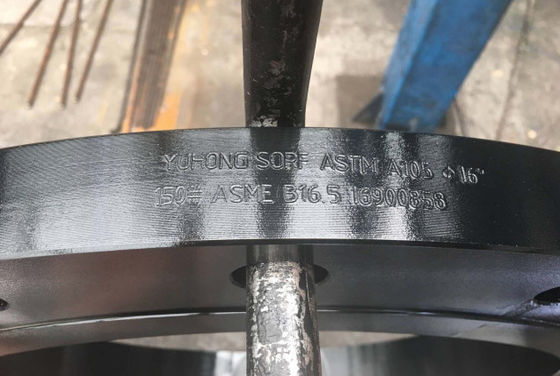

ASTM A105 20'' 150# ASME B16.5 B16.9 B16.11 B16.34 CARBON STEEL FLANGE



We are one of the biggest projects pipeline products supplier in China, Our products contain steel pipe/tube,fittings, flanges. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.



Scope

ASTM A105 (also known as ASME SA 105) covers seamless forged carbon steel piping components for use in pressure systems at ambient and high-temperature service.



Flanges, fittings, valves and various other parts ordered to customer dimension or to industry standards such as MSS, ASME and API specification are included in the scope.



Forgings to this specification are limited to 10,000 lbs.



Welding

These components can be welded. Welding procedures must comply with ASME Boiler and Pressure Vessel Code Section IX.



Heat Treatment

Heat treatment is not a mandatory requirement except for flanges above Class 300, flanges of special design where the design pressure or design temperature are not known and for items over 4” NPS and above Class 300. When heat treatment is required, annealing, normalizing, normalize and temper, normalize and quench and tempering shall be the applied methods.



Forging

This alloy is forged at between 1,700 degrees Fahrenheit and 2,200 degrees Fahrenheit, followed by quenching and tempering.



Annealing

Forged parts are allowed to cool to below 1,000 degrees Fahrenheit before reheating to between 1,550 degrees Fahrenheit and 1,700 degrees Fahrenheit. Slow furnace cooling follows.



Chemical Composition

Element Composition %, Note C
Carbon .35 max
Manganese .60-1.05
Phosphorus .035 max
Sulfur .040 max
Silicon .10-35
Copper .40 max, note A
Nickel .40 max, note A
Chromium .30 max, note A,B
Molybdenum .12 max, note A,B
Vanadium .08 max, note A

Note A – The sum of copper, nickel, chromium, molybdenum and vanadium shall not exceed 1.00%

Note B – The sum of chromium and molybdenum shall not exceed .32%

Note C – for each reduction of 0.01% below the specified carbon maximum (.35%), an increase of .06% manganese above the specified maximum (1.05%) will be permitted up to a maximum of 1.65%



Mechanical Properties

Tensile 70 ksi, min
Yield 36 ksi, min
Elongation in 2in, Basic minimum for wall 5/16″ and over, strip test 0.3
Hardness 187 HBW max



Hydrostatic Test

Hydrostatic Test shall be conducted by the forging manufacture only when Supplemental S57 of ASTM A961 is specified.



Reference Documents

A266/A266M Specification for Carbon Steel Forgings for Pressure Vessel Components

A675/A675M Specification for Steel Bars, Carbon, Hot-Wrought, Special Quality, Mechanical Properties

A696 Specification for Steel Bars, Carbon, Hot-Wrought or Cold-Finished, Special Quality, for Pressure Piping Components

A788/A788M Specification for Steel Forgings, General Requirements

A961/A961M Specification for Common Requirements for Steel Flanges, Forged Fittings, Valves, and Parts for Piping Applications

MSS Standard – SP 44 Standard for Steel Pipe Line Flanges

B16.5 Dimensional Standards for Steel Pipe Flanges and Flanged Fittings

B16.9 Wrought Steel Buttwelding Fittings

B16.11 Forged Steel Fittings, Socket Weld, and Threaded

B16.34 Valves-Flanged, Threaded and Welding End
