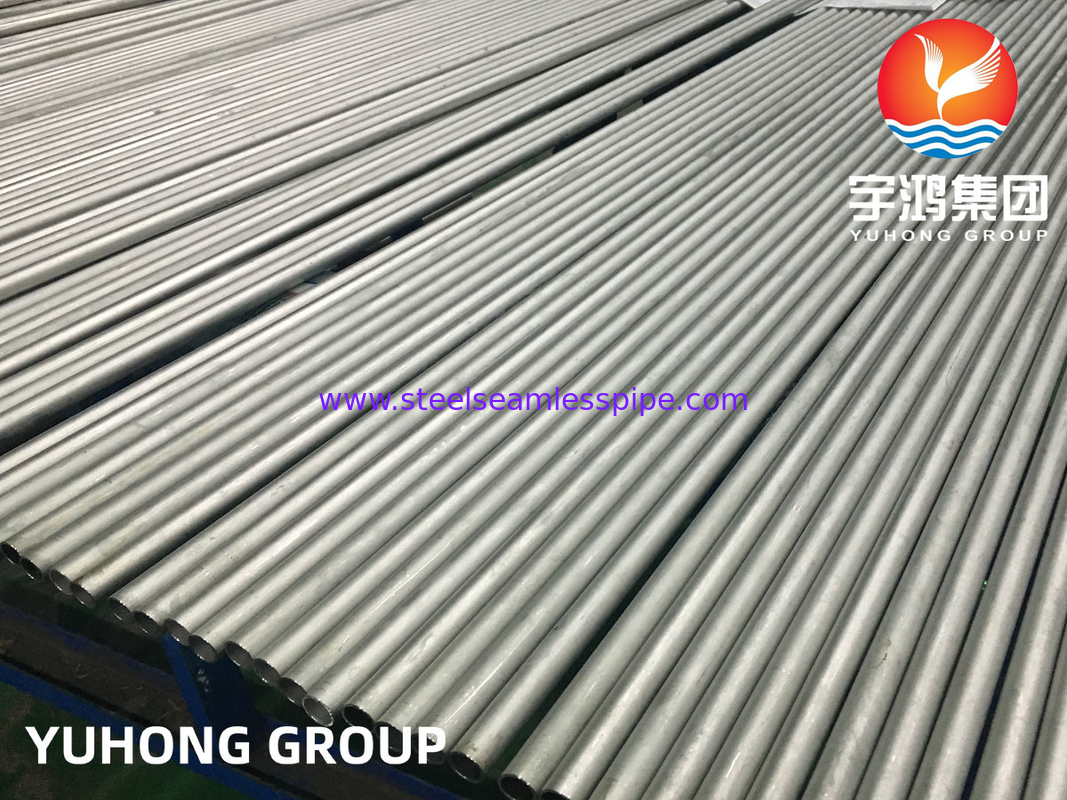

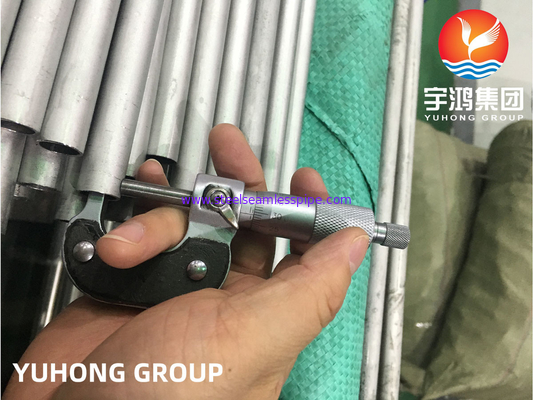

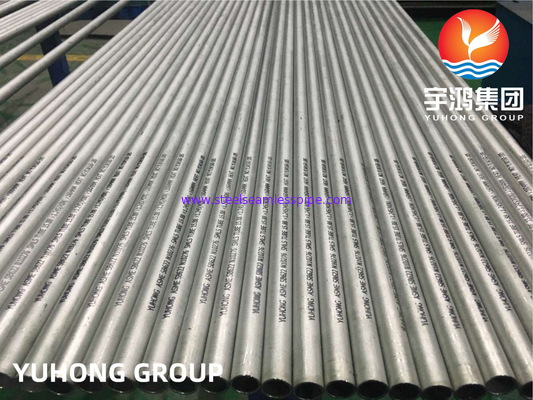

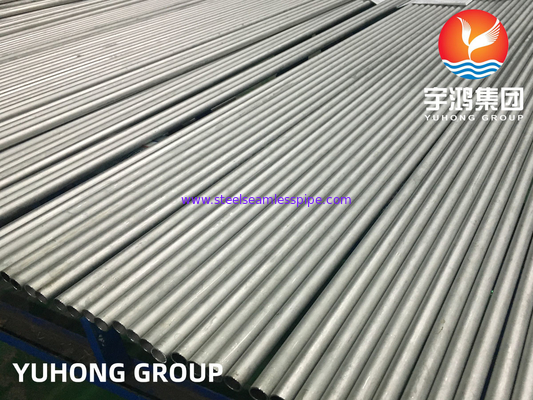

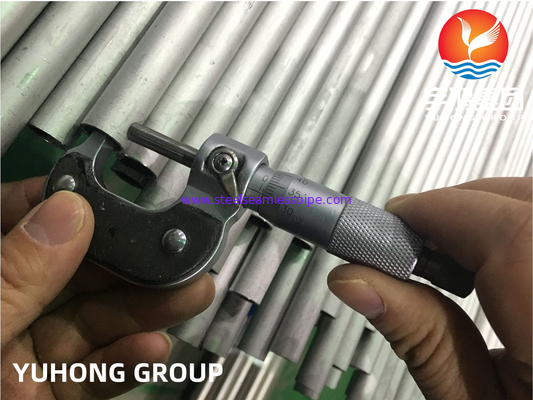

ASME SB622 UNS N10276 Hastelloy C276 Tubing

ASME SB622 UNS N10276 Hastelloy C276 Tubing

  • ASME SB622 UNS N10276 Hastelloy C276 Tubing
  • ASME SB622 UNS N10276 Hastelloy C276 Tubing
  • ASME SB622 UNS N10276 Hastelloy C276 Tubing
  • ASME SB622 UNS N10276 Hastelloy C276 Tubing
ASME SB622 UNS N10276 Hastelloy C276 Tubing
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, BV, DNV-GL , PED, TUV, LR, KR, NK, CCS.
Model Number: ASME SB622 UNS N10276 Alloy C276 Seamless Nickel Alloy Tube
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Standard:: ASME SB622 Material:: UNS N10276 Alloy C276
Application: Boiler Pipe,Structure Pipe,Oil Pipe,Chemical Fertilizer Pipe,Fluid Pipe Alloy Or Not: Is Alloy
Section Shape: Round,Oval,Square,Rectangular Standard: ASTM,DIN,GB,JIS,API
Special Pipe: Nickel Alloy Pipe,alloy Steel Pipe Material: Customed,Nickle Material
Product Name: Nickel Alloy Steel Pipe Type: Nickel Pipe
Shape: Round Shape,Bar,Sheet,Pipe,Strip.
High Light:

ASME SB622 hastelloy c276 tubing

,

UNS N10276 hastelloy c276 tubing

,

ASME SB622 nickel alloy tube

ASME SB622 UNS N10276 Alloy C276 Seamless Nickel Alloy Tube



We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.



Alloy C276 seamless nickel tubing is a nickel-molybdenum-chromium alloy having excellent corrosion resistance in a wide range of severe environments. The high molybdenum content makes this alloy especially resistant to pitting and crevice corrosion. The low carbon content minimizes carbide precipitation during welding to maintain corrosion resistance in as-welded structures.



The Hastelloy C276 Pipe is covered by 2 specifications i.e. ASTM B622 as well as ASTM B619. Typically the ASTM B622 Pipe is constructed in a seamless manner, whereas the construction of the ASTM B619 Pipe is welded. Amongst all the Hastelloy variations the C276 Hastelloy Pipe is the most popular one.



Characteristics

Alloy C276 is one of the few alloys resistant to wet chloride gas, hypochlorite and chlorine dioxide solutions.

Alloy C276 has exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides.

Alloy C276 is not prone to grain boundary precipitation in the as welded condition and therefore suitable for many chemical process applications





Alloy C276 Chemical Composition

Chemical Composition %
Nickel nominal 57
Chromium 14.5-16.5
Iron 4.0-7.0
Molybdenum 15.0-17.0
Cobalt 0.5-2.5
Sulfur 0.03
Tungsten 3.0-4.5
Cobalt 2.5
Carbon 0.01
Manganese 1
Silicon 0.08
Phosphorous 0.04
Vanadium 0.35





Alloy C276 Mechanical Properties

Annealed 1000 psi Mpa
Yield Strength (0.2% offset) 52 359
Tensile Strength 110.4 761
Elongation % 64
Rockwell Hardness 83 B







Alloy C276 Equivalent Grade

ALLOY UNS WERKSTOFF NR./ DIN AFNOR EN JIS OR GOST
Hastelloy C276 N10276 2.4819 - NiMo16Cr15W NW 0276 ЭП760 ХН65МВУ





Specification

Form Standard
UNS UNS N10276
Bar ASTM B574 Din 17752
Wire
Sheet ASTM B575 Din 17750
Plate ASTM B575 Din 17750
Fitting ASTM B366
Forging ASTM B564
Tube ASTM B619 ASTM B622 ASTM B626 Din 17751
Pipe ASTM B619 ASTM B622 ASTM B626 Din 17751
Weld Wire A5.14 ERNiCrMo-4
Weld Electrode A5.11 ENiCrMo-4
Din. 2.4819 All Forms











Application

  • Digesters and bleach plants in the paper industry.
  • Components exposed to sour gas.
  • Equipment for flue-gas desulfurisation plants.
  • Evaporators, heat exchangers, filters and mixers used in sulfuric acid environments.
  • Sulfuric acid reactors.
  • Organic chloride process equipment.
  • Equipment for processes utilizing halide or acid catalysts.
