Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG SPECIAL STEEL |
| Model Number: | Round ASTM A213 TP347H Stainless Steel Seamless Tube |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 |
| Payment Terms: | L/C, T/T |
| Certification: | ISO | Specification: | Round ASTM A213 TP347H Stainless Steel Seamless Tube |
|---|---|---|---|
| Shape: | Round | Application: | For Fluid And Gas Transport |
| Technique: | Cold Drawn/ Cold Rolled | Steel Grade: | 300 Series |
| Surface Treatment: | Annealed, Polished Etc. | Model Number: | 201/202/304/310/316L/430 |
| High Light: | TP347H Stainless Steel Seamless Tube,ASTM A213 Stainless Seamless Tube,205MPA Stainless Steel Seamless Tube |
||

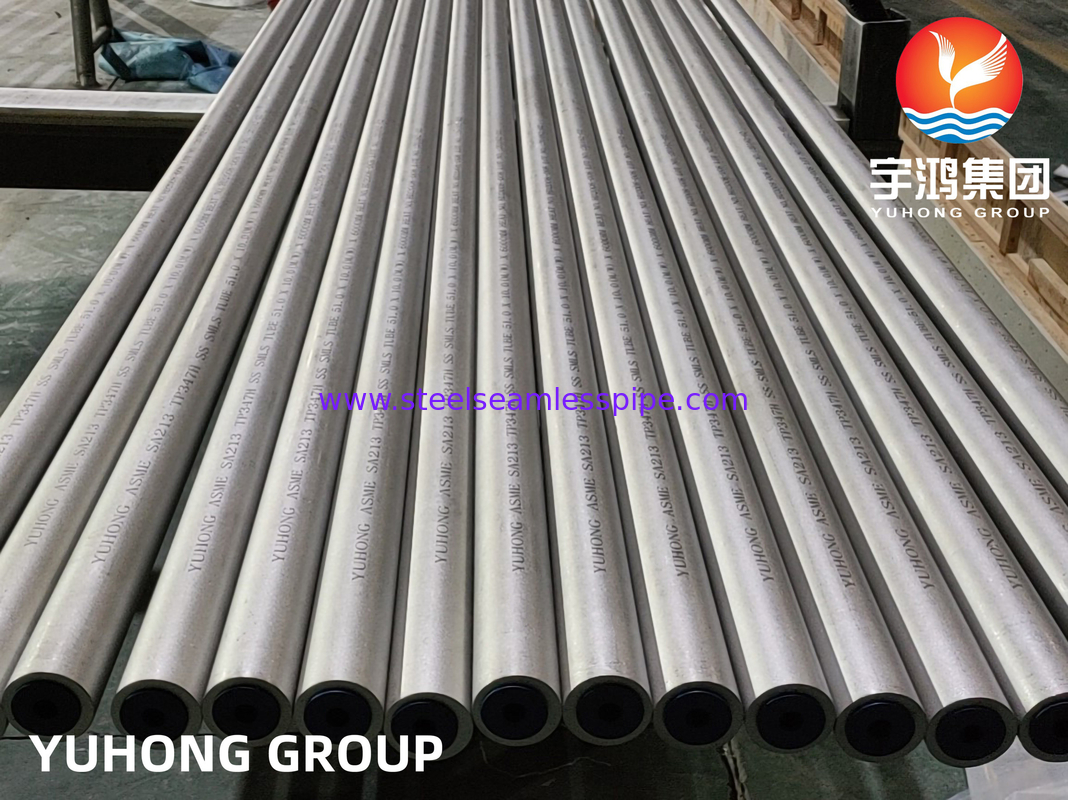

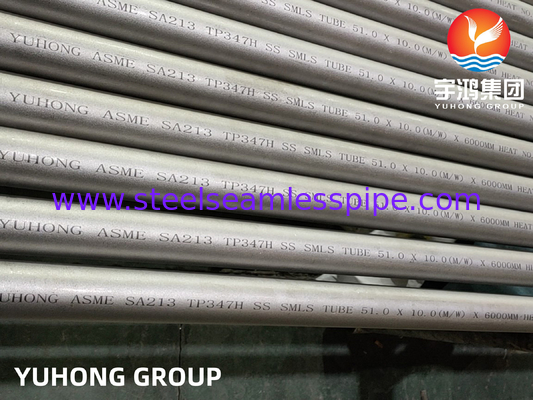

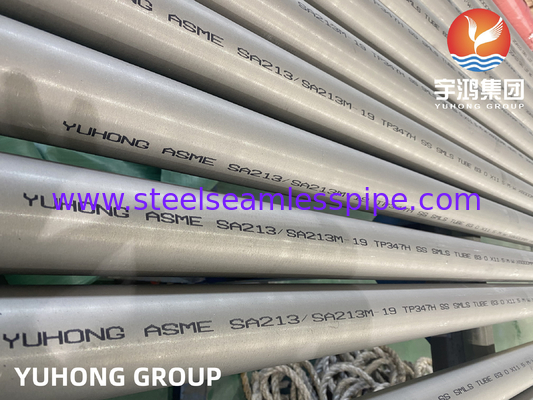

RoundASTM A213 TP347H Stainless Steel Seamless Tube
We are Yuhong Group,one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 33 years, and sells steel pipes every year more than 80000 tons. we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
ASTM A213 TP347H Stainless Steel Seamless Tube Chemical Composition
| Grade | 347 | 347H | 347HFG |
| UNS Designation | S34700 | S34709 | S34710 |
| Carbon (C) Max. | 0.08 | 0.04–0.10 | 0.06–0.10 |
| Manganese (Mn) Max. | 2 | 2 | 2 |
| Phosphorous (P) Max. | 0.04 | 0.04 | 0.04 |
| Sulphur (S) Max. | 0.03 | 0.03 | 0.03 |
| Silicon (Si) Max. | 0.75 | 0.75 | 0.75 |
| Chromium (Cr) | 17.0–20.0 | 17.0–20.0 | 17.0–20.0 |
| Nickel (Ni) | 9.0–13.0 | 9.0–13.0 | 9.0–13.0 |
| Molybdenum (Mo) | — | — | |
| Nitrogen (N) | — | — | — |
| Iron (Fe) | Bal. | Bal. | Bal. |
| Other Elements | Cb+Ta=10xC-1.0 | Cb+Ta=8xC-1.0 | Nb+Ta=8xC-1.0 |
ASTM A213 TP347H Stainless Steel Seamless Tube Physical Properties
| In the Annealed Condition at -20°F to +100°F | |||||
| Alloy | UNS Design | Density kg/dm³ | Modulus of Elasticity (x106 psi) | Mean Coefficient of Thermal Expansion (IN./IN./°F x 10-6) | Thermal Conductivity (BTU-in/ft2-h-°F) |
| 347 | S34700 | 7.98 | 29 | 9.2 | — |
| 347H | S34709 | 7.98 | 29 | 9.2 | — |
| 347HFG | S34710 | — | 29 | 9.2 | — |
ASTM A213 TP347H Stainless Steel Seamless Tube Mechanical Properties
| In the Annealed Condition at -20°F to +100°F | |||||||||
| Tensile Strength | Tensile Strength | Yield Strength | Yield Strength | ||||||
| Alloy | UNS | Spec | MPa | ksi | MPa | ksi | Elongation in 2 inches (min.) % | Grain Size Req. | Harndess HBW |
| 347 | S34700 | ASTM A213 | 515 | 75 | 205 | 30 | 35 | — | 192 |
| 347H | S34709 | ASME SA 213 | 515 | 75 | 205 | 30 | 35 | 7 or coarser | 192 |
| 347HFG | S34710 | — | 550 | 80 | 205 | 30 | 35 | 7 or coarser | 192 |
Why 347h SS is used for Chemical Processing?
Grade 347 is a special austenitic stainless steel that can be repeatedly and intermittently exposed to temperatures above 800 degrees Celsius. They are a modification of 304 stainless steel. They are similar to grade 321 in some of their mechanical properties, but differ in their composition by the presence of niobium. This material is resistant to most corrosive media at medium to high temperatures.
This is an important aspect required for chemical processing. The material has a minimum yield strength of 205 MPa and a minimum tensile strength of 515 MPa, which enables it to withstand high pressures at temperatures above 850 degrees Celsius. Pipes and components also have good elongation and high hardness. 304 material is subject to intergranular corrosion at temperatures above 850 degrees Fahrenheit, whereas 347H has a high carbon content and heat resistance, so it can work well in this temperature range.
The combination of pressure control, strength, hardness, heat resistance, and corrosion resistance makes it suitable for chemical processing. These properties also allow the material to be used in other highly corrosive, high heat applications such as boiler tubes and casings, radiant superheaters, heat exchanger tubes, oil and gas refineries, and aircraft exhaust stacks.
ASTM A213 TP347H Stainless Steel Seamless Tube Application Industries
ASTM A213 TP347H Stainless Steel Seamless Tube Test Certificates

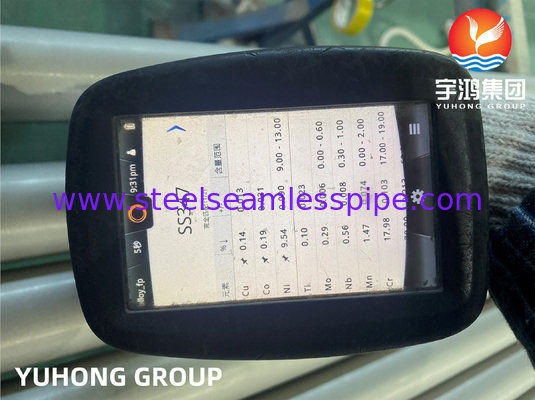

Material Testing:
