Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | EN10216-2 TC2 P235GH |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Heat Exchanger / Boiler Tube | Specification: | En10216-2 TC2 P235GH |
|---|---|---|---|
| O.D.: | 5.0 - 1219.2 Mm | W.T.: | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Length: | Single Random, Double Random, Standard & Cut Length Pipe | Pipe End: | Plain End, Beveled End |
| Type: | Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW En 10216 Pipe | Finish: | Cold Finishing |
| High Light: | p235gh carbon steel seamless tube,en10216-2 carbon steel seamless tube,tc2 heat exchanger tube |
||

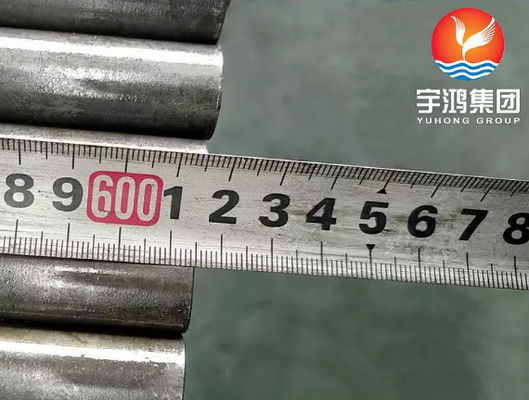

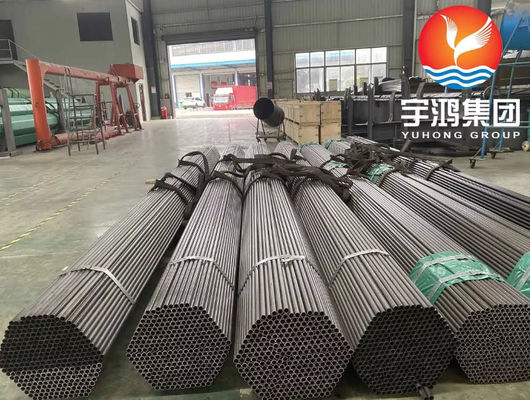

EN10216-2 TC2 P235GH CARBON STEEL SEAMLESS TUBE FOR HEAT EXCHANGER / BOILER
Overview
The composition of steel grade EN 10216 pipe makes it ideal for those applications where elevated working temperatures are considered to be standard. Hence, this material which has made into the En 10216 boiler tube can be seen applied throughout industries such as the gas, oil and petrochemical industry. P235GH TC1 Tube is a normalized carbon alloy steel grade.
EN Specification carbon steel Tubes, in this instance i.e. the En 10216-2 P235gh TC1 Seamless Precision Steel Pipe is used for elevated temperature service applications. Carbon based Steel En 10216-2 p235gh Seamless Steel Pipe manufactured according to this specification are to be reheated followed by which the pipes are to be furnished in either one of the following processes:
1. Full annealed
2. Isothermal annealed or
3. Normalised quenching
followed by which the En 10216-2 P235GH Boiler Tube is to be delivered in a tempered condition.
This Carbon based Steel Grade EN 10216-2 P235GH TC2 Welded Pipes are known to have a typical chemistry. The chemical composition of the EN 10216-2 P235GH Cold Drawn Welded Pipe includes additions of a maximum 0.30% of Chromium and a maximum of 0.08% Molybdenum in its alloy. The P235GH EN 10216-2 Welded Tubes which manufacture from carbon as well as low alloy steel grades tend to be resistant to loads under very high pressure and high temperatures too. Hence, the EN 10216 Steel Grade P235gh Tubes are used for constructions of power engineering appliances such as: heaters, boilers and Heat exchangers.
Specification
|
ASTM Specification |
En 10216-2 |
|---|---|
|
Standard |
ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
|
En 10216 Seamless Pipe Size |
4 to 219mm W. T.: 0.5 to 20mm |
|
En 10216-2 P235gh Welded Pipe Size |
5.0 - 1219.2 mm |
|
En 10216-2 P235gh TC2 EFW Pipe size |
5.0 - 1219.2 mm |
|
Swg & Bwg |
10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
|
P235gh En 10216-2 Pipe Schedule |
SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
|
En 10216 Pipe Length |
Single Random, Double Random, Standard & Cut length Pipe |
|
Finish |
Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc |
|
Form |
En 10216 Pipe are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc. |
|
Type of En 10216-2 P235gh Pipe |
Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW En 10216 Pipe |
|
En 10216 Pipe End |
Plain End, Beveled End, Treaded Pipe, Screwed ends |
|

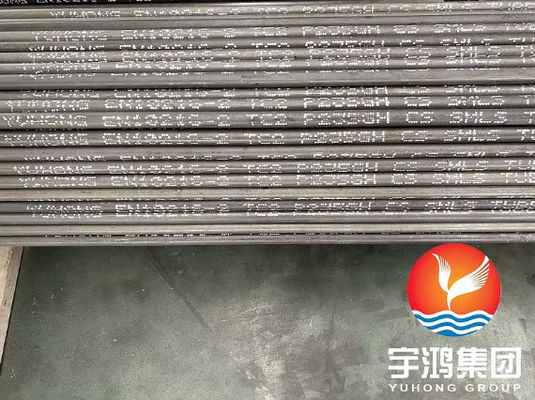

Marking on P235gh En 10216-2 Pipe |
All En 10216 Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
|
Application of En 10216 Pipe |
Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry |
|
Value Added Service |
Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
|
Specialize in |
Large Diameter En 10216 Pipe |
|
En 10216 Pipe manufacturing Technique |
Cold drawn, hot drawn, bright annealed, solid solution, hot extruding |
|
En 10216 Pipe Test Certificate |
Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
|
Material Test Certificates (MTC) |
Material Test Certificates (MTC) as per EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2, 100% Radiography Test Report, Heat Treatment Charts, Raw Materials Certificate, Third Party Inspection Report, Fumigation Certificates, En 10216 Pipe HS Code Commercial Invoice, Form A for Generalized System of Preferences (GSP) |
Chemical Composition
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
| max 0.16 | max 0.35 | max 1.20 | 0.025 | 0.01 | max 0.08 | max 0.30 | max 0.30 | max 0.30 | V max 0.02 Ti max 0.04 Al min 0.020 |
Mechanical Properties
| Pipe types | Steel grades | Mechanical properties during tensile testing in room temperature | Resilience | ||||||||||
| Boiler P195GH, P235GG P265GH 16Mo3 14MoV6-3 13CrMo4-5 10CrMo9-10 Wg PN-EN 10216-2 |
Upper yield limit or yield strength Re or R0,2 for wall thickness of t min | Tensile strength Rm | Elongation A min% |
Minimum energy average absorbed KVJ at the temperature of 0°C | |||||||||
| T<=16 | 16 |
40 |
60 |
I | T | ||||||||
| MPa | MPa | MPa | MPa | MPa | I | t | 20 | 0 | -10 | 20 | 0 | ||
| EN P195GH | 195 | - | - | - | 320- 440 | 27 | 25 | - | 40 | 28 | - | 27 | |
| EN P235GH | 235 | 225 | 215 | - | 360- 500 | 25 | 23 | - | 40 | 28 | - | 27 | |
| EN P265GH | 265 | 255 | 245 | - | 410- 570 | 23 | 21 | - | 40 | 28 | - | 27 | |
| 16Mo3 | 280 | 270 | 260 | - | 450- 600 | 22 | 20 | 40 | - | - | 27 | - | |
| 14MoV6-3 | 320 | 320 | 310 | - | 460- 610 | 20 | 18 | 40 | - | - | 27 | - | |
| 13CrMo4-5 | 290 | 290 | 280 | - | 440- 590 | 22 | 20 | 40 | - | - | 27 | - | |
| 10CrMo9-10 | 280 | 280 | 270 | - | 480- 630 | 22 | 20 | 40 | - | - | 27 |
- |
|
