Yuhong Holding Group Co.,LTD
Place of Origin: | CHINA |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | TP316L,TP304,TP304L,SUS316L,SUS304 |
Minimum Order Quantity: | 100KGS |
---|---|
Price: | NEGOTIABLE |
Packaging Details: | Ply-wooden Case, Bundle,Pallet |
Delivery Time: | 7days |
Payment Terms: | L/C, T/T |
Supply Ability: | ACCORDING TO CUSTOMER'S REQUEST |
OD: | 0.1MM TO 25MM | STANDARD: | EN10305 , ASTM , GOST |
---|---|---|---|
GRADE: | TP304/304L/304H , TP310S/310H, TP316L/316H/316Ti ,TP317/317L , TP321/321H, TP347/347H 904L , SAF2205, SAF2507, S31803, S32750, S32760 | PACKAGE: | PLYWOOD CASE,BUNDLE |
USAGE: | MEDICAL,WATCH,BALLPEN,INSTRUMENT,,,,, | ||
High Light: | precision 0.1mm ss capillary tube,tp304 ss capillary tube,precision tp316l stainless steel capillary tube |

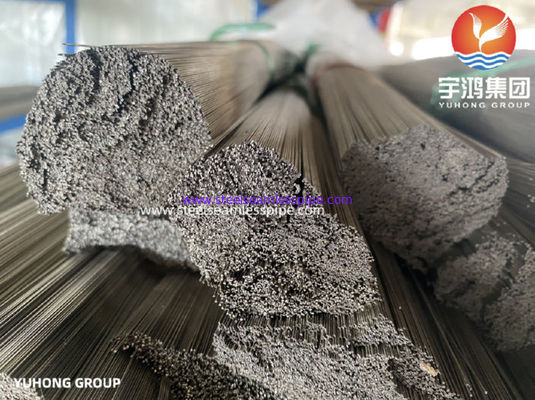

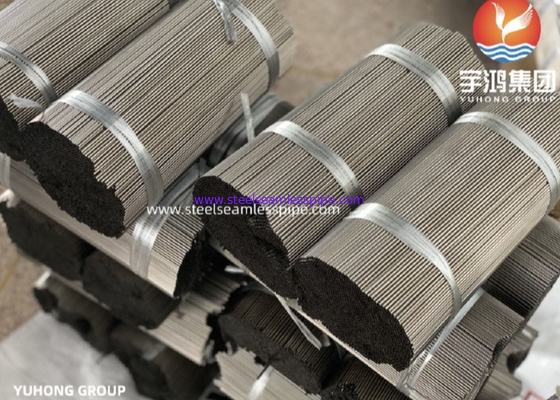

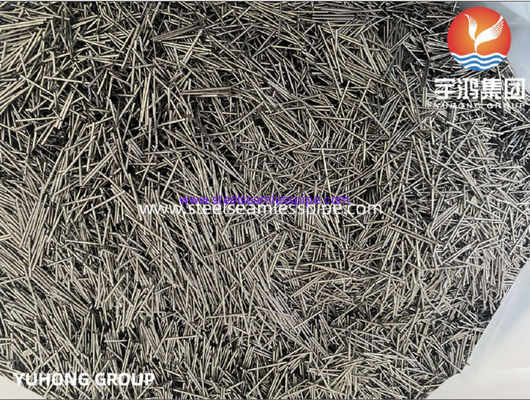

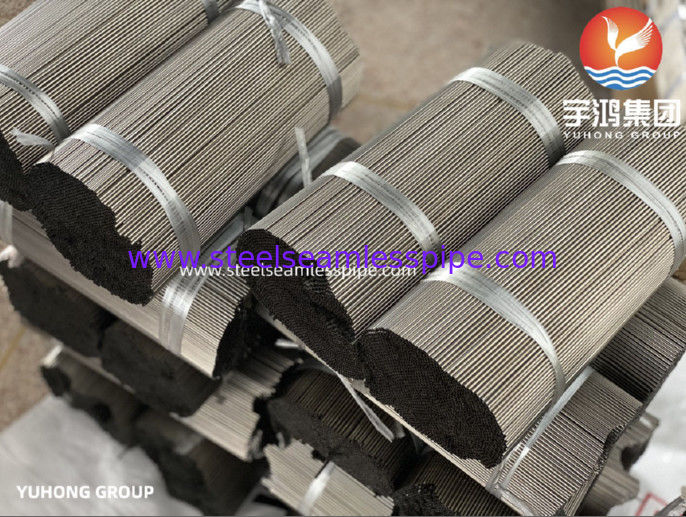

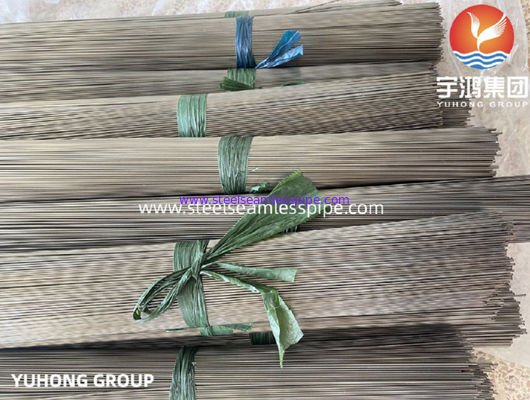

Stainless Steel Welded Capillary Tube TP316L/TP304 NEEDLE PRECISION 0.1MM - 25MM
The Stainless Steel Capillary Tubes are used while supplying liquids and gases from sensors to measuring instruments. The tubes are used in various critical applications with having inner surface free from oil, grease and dust particles. These tubes are available in different sizes, tolerances and thickness as per the requirements of our clients.
Available Grades : 304, 304L, 316, 316L
Available Types : Seamless & Welded
Available Size : OD :Min. 0.5mm to 6mm
WT:0.02 to 2mm
Length Max.: 1000m /pc
Wall Thickness (mm) | |||||||||||||||||||||||||
O.D. (mm) | 0.075 | 0.08 | 0.1 | 0.125 | 0.15 | 0.175 | 0.2 | 0.225 | 0.25 | 0.3 | 0.35 | 0.375 | 0.4 | 0.45 | 0.5 | 0.6 | 0.75 | 0.8 | 0.85 | 1 | 1.25 | 1.5 | 1.8 | 2 | 2.5 |
0.1 | |||||||||||||||||||||||||
0.2 | 0.04 | ||||||||||||||||||||||||
0.3 | 0.15 | 0.14 | 0.1 | ||||||||||||||||||||||
0.4 | 0.2 | ||||||||||||||||||||||||
0.5 | 0.3 | 0.2 | |||||||||||||||||||||||
0.55 | |||||||||||||||||||||||||
0.6 | 0.4 | ||||||||||||||||||||||||
0.62 | 0.32 | ||||||||||||||||||||||||
0.7 | 0.45 | 0.4 | |||||||||||||||||||||||
0.8 | 0.5 | 0.45 | 0.3 | 0.1 | |||||||||||||||||||||
0.9 | 0.5 | ||||||||||||||||||||||||
1 | 0.8 | 0.7 | 0.6 | 0.5 | 0.4 | 0.3 | |||||||||||||||||||
1.1 | 0.7 | ||||||||||||||||||||||||
1.2 | 0.8 | 0.3 | |||||||||||||||||||||||
1.3 | 0.85 | 0.8 | |||||||||||||||||||||||
1.4 | 1 | ||||||||||||||||||||||||
1.5 | 1.2 | 1.1 | 1 | 0.8 | 0.7 | 0.5 | |||||||||||||||||||
1.6 | 1.2 | 1 | 0.6 | 0.1 | |||||||||||||||||||||
1.7 | 1.3 | ||||||||||||||||||||||||
1.8 | 1.3 | 1 | |||||||||||||||||||||||
1.9 | 1.4 | ||||||||||||||||||||||||
2 | 1.8 | 1.6 | 1.5 | 1.4 | 1 | ||||||||||||||||||||
2.2 | 1.6 | 0.5 | |||||||||||||||||||||||
2.4 | 1.6 | ||||||||||||||||||||||||
2.5 | 2.1 | 2 | 1.9 | 1.7 | 1.5 | ||||||||||||||||||||
2.6 | 2 | ||||||||||||||||||||||||
2.8 | 2 | ||||||||||||||||||||||||
3 | 2.6 | 2.5 | 2 | 1.5 | 1 | ||||||||||||||||||||
3.2 | 2.8 | 2.4 | |||||||||||||||||||||||
3.25 | 0.75 | ||||||||||||||||||||||||
3.5 | 2.75 | 2.5 | 2.3 | ||||||||||||||||||||||
4 | 3.5 | 3 | 2.5 | 2 | 1.5 | 1 | |||||||||||||||||||
4.5 | 4 | 3.5 | |||||||||||||||||||||||
5 | 4.7 | 4.6 | 4.5 | 4 | 3.5 | 3 | 2 | 1.4 | |||||||||||||||||
5.3 | 4.8 | ||||||||||||||||||||||||
5.5 | 3.5 | ||||||||||||||||||||||||
6 | 5.7 | 5.5 | 5.2 | 5 | 4.5 | 4.4 | 4 | 3 | 2.4 | 2 | 1 |
