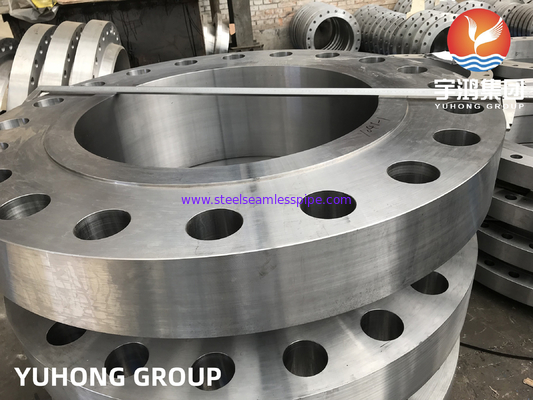

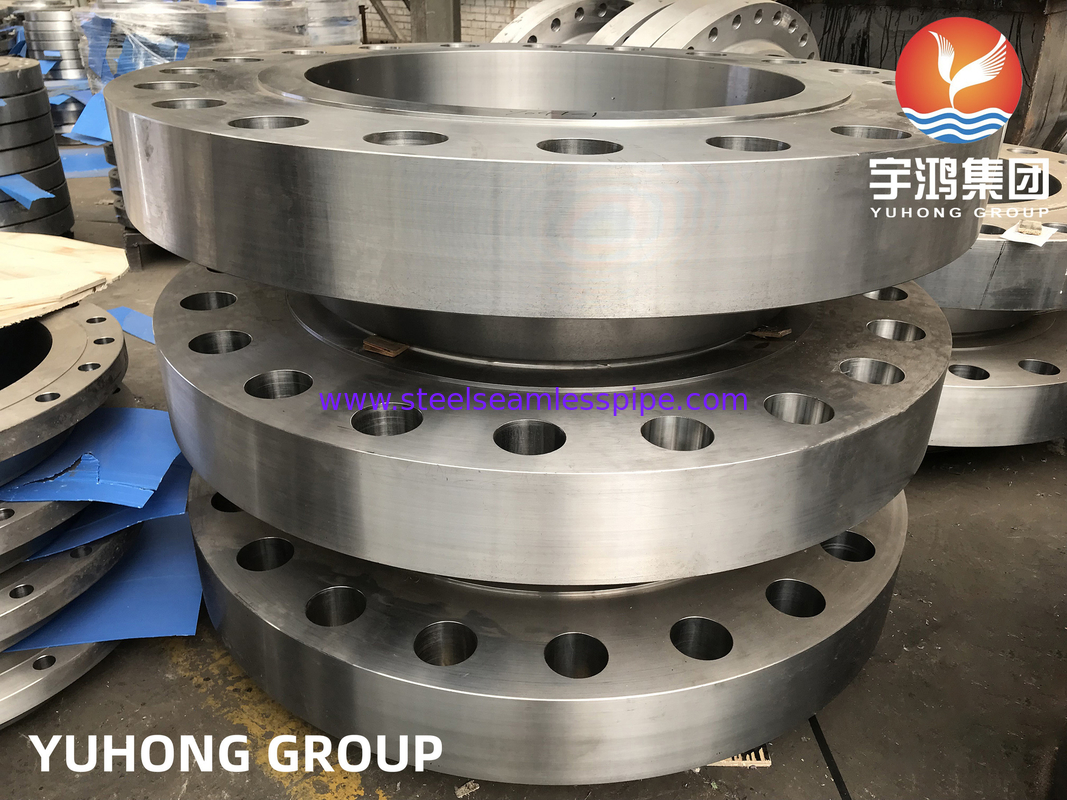

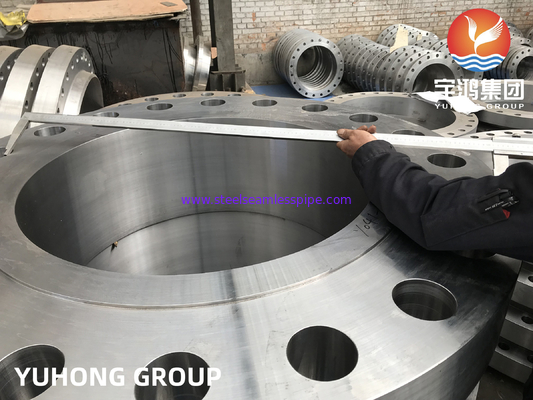

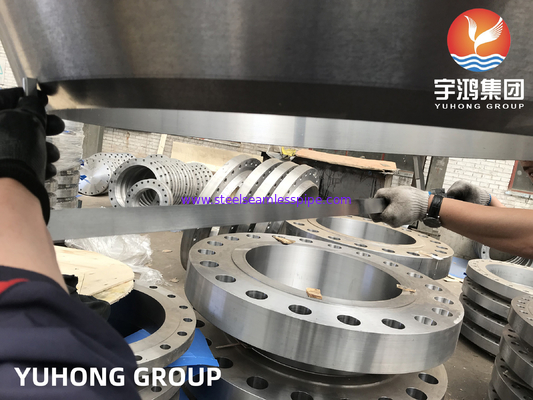

ASTM A694 F52 SLIP ON RF FORGED CARBON STEEL FLANGES

ASTM A694 F52 SLIP ON RF FORGED CARBON STEEL FLANGES

  • ASTM A694 F52 SLIP ON RF FORGED CARBON STEEL FLANGES
  • ASTM A694 F52 SLIP ON RF FORGED CARBON STEEL FLANGES
  • ASTM A694 F52 SLIP ON RF FORGED CARBON STEEL FLANGES
  • ASTM A694 F52 SLIP ON RF FORGED CARBON STEEL FLANGES
ASTM A694 F52 SLIP ON RF FORGED CARBON STEEL FLANGES
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number: ASTM A694 F52 F60 B16.5 stainless forged carbon steel flange
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Standard: ANSI,ASME Size: 15mm-6000mm,1/2"-120",DN 10 To DN 3000 MM
Material: Carbon Duplex Stainless Alloy Steel Cs Ss Product Name: Welding Neck Flange,Pipe Flange,hydraulic Flange,Stainless Steel Flange,Cnc Part
Application: Petroleum,chemical,etc,fittings And Connection,beer Pressure: Class150/300/600/9001500/2500,PN2.5/6/10/16/25/40,0-63mpa,150LB-2500LB,Class150-2500/ PN6-PN100
Type: Threaded Flange,Slip On Flange,socket Weld Flange,weld Neck Flange,LAP Joint Flange Process: Forged,Drilling/Bending/Stamping,Casting,sand Casting&CNC Machining,Forging+machining+heating Treatment
Surface Treatment: Heat Treatment,Galvanized,Black Oxidation,customize,pickeling Packing: Wooden Case,Plywood\wooden Pallets
Technics: Froged,Advanced,Forging Color: On Quest,Natural Color,Black
High Light:

astm a694 f52 carbon steel flanges

,

rf forged carbon steel flanges

,

slip on carbon steel pipe flanges



ASTM A694 F52 Slip On RF Forged Steel Flanges



Overview

ASTM A694 F52 Flanges is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modification. Flanges are usually welded or screwed. Flanged joints are made by bolting together two flanges with a gasket between them to provide a seal.

ASTM A694 F52 Flanges (Standard Specification for Carbon and Alloy Steel Forgings for Pipe Flanges, Fittings, Valves, and Parts for High-Pressure Transmission Service)

ASTM A694 F52 Standard Specification for Carbon and Alloy Steel Forgings for Pipe Flanges, Fittings, Valves, and Parts for High-Pressure Transmission Service. Several grades of material, based on minimum yield strength requirements, are covered Materials adhere to testing and tensile property requirements as well.

ASTM A694 F52 Flanges are having min Yield of 360 Mpa and Tensile Strength of min 455 Mpa.

ASTM A694 F52 Flanges is readily available for applications in the Industrial and Transportation fields.



Specification

A694/A694M-08 is Standard Specification for Carbon and Alloy Steel Forgings for Pipe Flanges, Fittings, Valves, and Parts for High-Pressure Transmission Service

ASTM A694 F52 Flanges Specification ASTM A694 / ASME SA694
ASTM A694 F52 Flanges Manufacturing Process Hot Forging / Rolling / Machining
ASTM A694 F52 Flanges Other Grades ASTM A694 F42 / ASTM A694 F46 / ASTM A694 F52 / ASTM A694 F56 / ASTM A694 F60 / ASTM A694 F65 / ASTM A694 F70 / ASME SA694 F42 / ASME SA694 F46 / ASME SA694 F52 / ASME SA694 F56 / ASME SA694 F60 / ASME SA694 F65 / ASME SA694 F70
ASTM A694 F52 Flanges Outer Diameter 1/2"NB TO 64"NB
ASTM A694 F52 Flanges Pressure Class Class 150#, Class 300#, Class 400#, Class 600#, Class 900#, Class 1500#, Class 2500# or As Per Custom Requirement
PN 6, PN 10, PN 16, PN 25 and PN 40 etc
ASTM A694 F52 Flanges Schedule Sch 10s TO Sch XXS or As Per Custom Requirement
ASTM A694 F52 Flanges Facing Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
ASTM A694 F52 Flanges Dimension ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIn 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc..
ASTM A694 F52 Flanges Types Welding Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Blind Flange, Orifice Flanges, Plate Flange, Long Welding Neck Flanges, Weldoflange, Nipoflange, Expander Flange, Reducing Flange, WNRF Flange, SORF Flange, SWRF Flange, Custom Flange as per Drawing etc.
ASTM A694 F52 Flanges Other Testing NACE MR0175, Ultrasounic Test, Charpy Impact Test, Macro, Grain Size, Hardness, HIC, SSC, Sour Service, A for annealed, N for normalized, NT for Normalized and Tempered, or QT for Quenched and Tempered, Carbon Equivalent etc.
ASTM A694 F52 Flanges Value Added Services Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
ASTM A694 F52 Flanges Packaging Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps
ASTM A694 F52 Flanges Shipment & Transportation By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
ASTM A694 F52 Flanges Material Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved etc.



Chemical Composition

ASTM A694, Heat Analysis, %
Carbon [C] ≤0.30
Manganese [Mn] ≤1.60
Phosphorus [P] ≤0.025
Sulfur [S] ≤0.025
Silicon [Si] 0.15-0.35



Mechanical Properties

Element Tensile Strength Yield Strength (0.2%Offset) Elongation
ASTM A694 F52 415 315 20 %



Applications

  • 1. Petrochemical Industry
  • 2. Chemical Industry
  • 3. Nuclear Power Plant Industry
  • 4. Oil and Gas Industry
  • 5. Research & Development
  • 6. Mega Projects & Defense & Development Industries
  • 7. Pulp & Paper Industry

ASTM A694 F52 SLIP ON RF FORGED CARBON STEEL FLANGES 0
