Home ProductsButt Weld Fittings

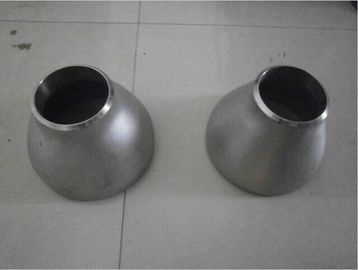

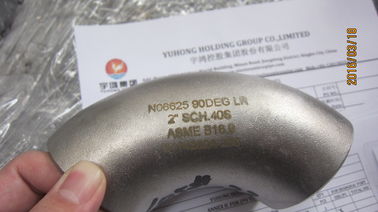

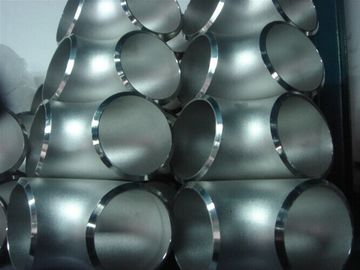

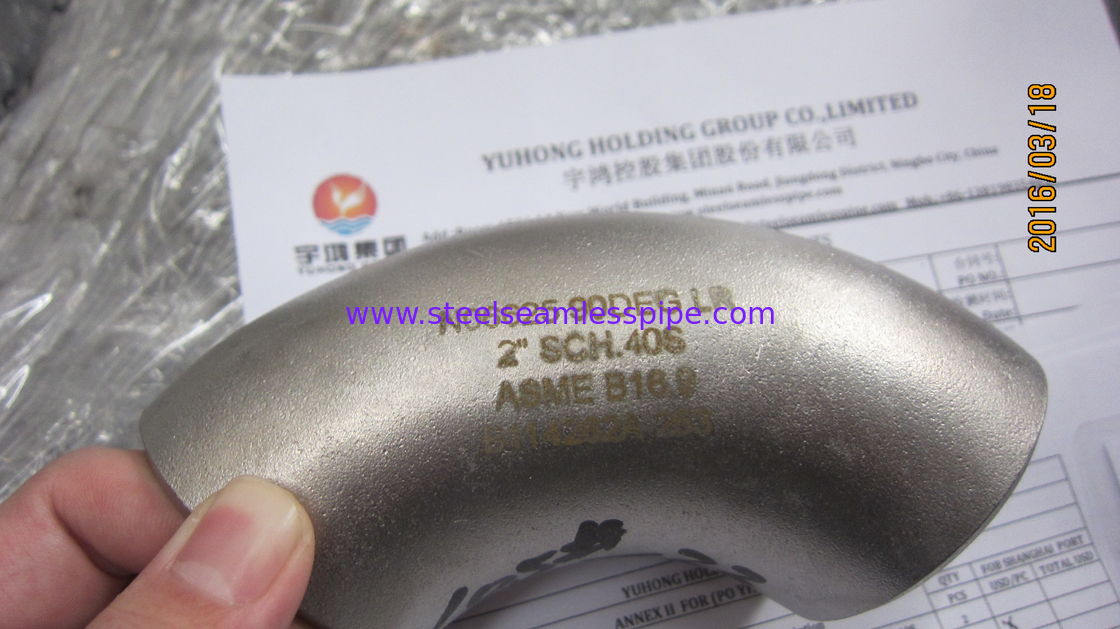

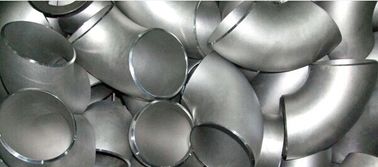

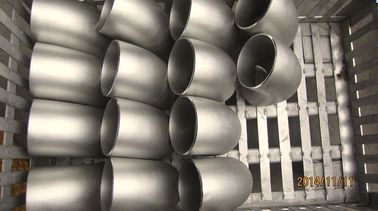

Butt Weld Fittings SB366 Inconel 625 (UNS NO6625), 90 DEG. ELBOW , 45 DEG. ELBOW , CAP, REDUCE , TEE

Butt Weld Fittings SB366 Inconel 625 (UNS NO6625), 90 DEG. ELBOW , 45 DEG. ELBOW , CAP, REDUCE , TEE

    • Butt Weld Fittings SB366 Inconel 625 (UNS NO6625), 90 DEG. ELBOW , 45 DEG. ELBOW , CAP, REDUCE , TEE
    • Butt Weld Fittings SB366 Inconel 625 (UNS NO6625), 90 DEG. ELBOW , 45 DEG. ELBOW , CAP, REDUCE , TEE
    • Butt Weld Fittings SB366 Inconel 625 (UNS NO6625), 90 DEG. ELBOW , 45 DEG. ELBOW , CAP, REDUCE , TEE
    • Butt Weld Fittings SB366 Inconel 625 (UNS NO6625), 90 DEG. ELBOW , 45 DEG. ELBOW , CAP, REDUCE , TEE
    • Butt Weld Fittings SB366 Inconel 625 (UNS NO6625), 90 DEG. ELBOW , 45 DEG. ELBOW , CAP, REDUCE , TEE
    • Butt Weld Fittings SB366 Inconel 625 (UNS NO6625), 90 DEG. ELBOW , 45 DEG. ELBOW , CAP, REDUCE , TEE
  • Butt Weld Fittings SB366 Inconel 625 (UNS NO6625), 90 DEG. ELBOW , 45 DEG. ELBOW , CAP, REDUCE , TEE

    Product Details:

    Place of Origin: China, USA, Korea, UE
    Brand Name: YUHONG SPECIAL STEEL
    Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
    Model Number: NO8904, NO6600,NO10276,NO6625, NO8810, NO8825, NO2200M NO2201, NO4400, NO5500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: negotiable
    Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
    Delivery Time: 10days->
    Payment Terms: T/T, L/C
    Supply Ability: 1500 tons per month
    Contact Now
    Detailed Product Description
    Material: Inconel 625 , 2.4856 , Alloy625 Standard: ASTM B366/ASME SB366 , ASTM B564/ ASME SB564
    Products: Elbow , Tee, Cap, Reducer, Nipplie, Flangeolet, Nipplie, Coupling, Union, Plug Certificate: ABS, BV, DNV, GL, LR, KR, NSK, CCS, TS, ISO, PED, GOST

    Butt Weld Fittings SB366 Inconel 625 (UNS NO6625), 90 DEG. ELBOW , 45 DEG. ELBOW , CAP, REDUCE , TEE



    Inconel 625 is a nickel-base alloy used both for its high strength and outstanding aqueous corrosion resistance. The strength of alloy 625 is primarily a solid solution effect from molybdenum and columbium. Alloy 625 has excellent weldability and is frequently used to weld AL-6XN® alloy. Matching filler metals are also used to join dissimilar metals.

    Chemistry

      Cr Ni Mo Co Cb+Ta Al Ti C Fe Mn Si P S
    MIN 20.0 - 8.0 - 3.15 - - - - - - - -
    MAX 23.0 Balance 10.0 1.0 4.15 0.4 0.4 0.1 5.0 0.5 0.5 0.015 0.015

    Specifications

    AMS 5599, AMS 5666, AMS 5837
    ASME SB 443 Gr 1, ASME SB 446 Gr 1
    ASTM B 443 Gr 1, ASTM B 446 Gr 1
    EN 2.4856
    ISO 15156-3
    NACE MR0175-3
    UNS N06625
    Werkstoff 2.4856

    Inventory

    625 Plate, 625 Round Bar, 625 Sheet, 625 Welding Products

    Common Trade Names

    Inconel® 625, Alloy 625, Nickel 625

    Features

    · High creep-rupture strength

    · Oxidation resistant to 1800°F

    · Good fatigue resistance

    · Excellent weldability

    · Outstanding resistance to chloride pitting and crevice corrosion

    · Immune to chloride ion stress corrosion cracking

    · Resistant to seawater under both flowing and stagnant conditions and under fouling

    Applications

    · Aircraft ducting systems

    · Jet engine exhaust systems

    · Engine thrust-reverser systems

    · Bellows and expansion joints

    · Turbine shroud rings

    · Flare stacks

    · Seawater components

    · Chemical process equipment handling mixed acids both oxidizing and reducing.

    Physical Properties

    Density: 0.305 lb/in 3
    Melting Point: 2350-2460°F

    Temperature, °F 70 400 600 800 1000 1200 1400 1600
    Coefficient* of Thermal Expansion, in/in°F x 10 -6 - 7.3 7.4 7.6 7.8 8.2 8.5 8.8
    Thermal Conductivity
    Btu • ft/ft2 • hr • °F
    5.7 7.2 8.2 9.1 10.1 11.0 12.0 13.2
    Modulus of Elasticity, Dynamic psi x 10 6 30 28 28 27 26 24 23 -

    * 70°F to indicated temperature.

    Mechanical Properties

    Representative Tensile Properties, Bar

    Temperature,°F 70 400 600 800 1000 1200 1400 1600
    Ultimate Tensile Strength, ksi 144 134 132 132 130 119 78 40
    0.2% Yield Strength, ksi 84 66 63 61 61 60 59 39
    Elongation, % 44 45 42.5 45 48 34 59 117

    Typical Rupture Strength Bar, Stress to Rupture at Indicated Time

    Temperature, °F 1200 1300 1400
    100 Hours, ksi 59 34 18
    1,000 Hours, ksi 43 23 12



    Inconel Buttweld Fittings are available in different grades of the super alloy, as follows:
    Grade UNS W.Nr. Trade Name
    Inconel 600 N06600 2.4816 Inconel 600®, Nickelvac® 600, Ferrochronin® 600
    Inconel 601 N06601 2.4851 Inconel 601®, Pyromet® 601, Nicrofer® 601
    Inconel 617® N06617 2.4663 Inconel 617®, Nicrofer® 617
    Inconel 625 N06625 2.4856 Inconel 625®, Chornin® 625, Altemp® 625, Nickelvac® 625, Haynes® 625 Nicrofer® 6020
    Inconel N07718 2.4668 Inconel 718®, Nicrofer® 5219, Alvac® 718, Haynes® 718, Altemp® 718
    Inconel X 750 N07750 2.4669 Inconel X750®, Haynes X750®, Pyromet® X750, Nickelvac®X750, Nicorros® 7016
    Incoloy 800 N08800 1.4876 Incoloy 800®, Ferrochronin® 800, Nickelvac® 800, Nicrofer® 3220
    Incoloy 800H N08810 1.4876 Incoloy 800H®, Ferrochronin® 800, Nickelvac® 800, Nicrofer® 3220
    Incoloy 800HT N08811 1.4876 Incoloy 800HT®, Ferrochronin® 800, Nickelvac® 800, Nicrofer® 3220
    Incoloy 825 N08825 2.4858 Incoloy 825®, Nickelvac® 825, Nicrofer 4241®





    Types:Elbow - 90 Deg. & 45 Deg., Tee - Equal & Reducing, Union, Cross, Coupling - Full & Half, Socket Reducing, CAP, Plug-Hex & Square, Nipples (Hex/Reducing), Bushing, Sockolet, Weldolet, Thredolet, Elbolet, Nipolet.



    Butt Weld Fittings SB366 Inconel 625 (UNS NO6625), 90 DEG. ELBOW , 45 DEG. ELBOW , CAP, REDUCE , TEE
