ASTM A268 TP405 / TP409 / TP409S / TP410 / TP430 /TP439 /TP444 / TP446 Stainless Steel U Bend Tube

ASTM A268 TP405 / TP409 / TP409S / TP410 / TP430 /TP439 /TP444 / TP446 Stainless Steel U Bend Tube

  • ASTM A268 TP405 / TP409 / TP409S / TP410 / TP430 /TP439 /TP444 / TP446 Stainless Steel U Bend Tube
  • ASTM A268 TP405 / TP409 / TP409S / TP410 / TP430 /TP439 /TP444 / TP446 Stainless Steel U Bend Tube
  • ASTM A268 TP405 / TP409 / TP409S / TP410 / TP430 /TP439 /TP444 / TP446 Stainless Steel U Bend Tube
  • ASTM A268 TP405 / TP409 / TP409S / TP410 / TP430 /TP439 /TP444 / TP446 Stainless Steel U Bend Tube
  • ASTM A268 TP405 / TP409 / TP409S / TP410 / TP430 /TP439 /TP444 / TP446 Stainless Steel U Bend Tube
ASTM A268 TP405 / TP409 / TP409S / TP410 / TP430 /TP439 /TP444 / TP446 Stainless Steel U Bend Tube
Product Details:
Place of Origin: China, USA, Korea, UE
Brand Name: YUHONG SPECIAL STEEL
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A268 TP405 / TP409 / TP409S / TP410 / TP430 /TP439 /TP444 / TP446
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 10days->
Payment Terms: T/T, L/C
Supply Ability: 1500 tons per month
Contact Now
Detailed Product Description
Material Grade: ASTM A268 TP405 / TP409 / TP409S / TP410 / TP430 /TP439 /TP444 / TP446 Standard: ASTM A268 , ASME SA268
NDT: ET, UT, HT
High Light:

welded steel tube

,

seamless and welded pipe

ASTM A268 TP405 / TP409 / TP409S / TP410 / TP430 /TP439 /TP444 / TP446 Stainless Steel U Bend Tube



YUHONG SPECIAL STEEL deal with  Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) seamless  and welded  pipe and tube already more than 25 years, every year sell more than 80000 tons of steel  pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.


Features :

  • 'U' bending is done by cold working process.
  • 'U' bending is done to the required radius as per customer drawings.
  • The bend portion and six inch leg is stress relieved by resistance heating.
  • Inert gas (Argon) is passed through it at the required flow rate to avoid oxidation in ID.
  • The radius is checked for its OD and wall thinning with the recommended specification.
  • The physical properties and micro-structure is checked at three different position.
  • Visual inspection for waviness and cracks is done with Dye Penetrant Test.
  • Each tube is then hydro tested at the recommended pressure to check for leakage.
  • Cotton ball test is done to check the ID cleanliness of the tube.
  • Thereafter pickled, dried, marked and packed.
  • All procedure is strictly followed as per TEMA "C" and ASTM A-688.


U-Bend Tube are widely used in Heat Exchanger Systems. Heat-Exchanger Equipment on the basis of
Seamless Stainless U-Tubes and Welded Stainless U bend Tube is essential in strategically important and
critical felds---Nuclear And Petrochemical Machine Building.
YUHONG SPECIAL STEEL Start to Produce U Bending Tube Since 2006,Up to now already supply more than
30000 tons Stainless Steel U Bend Tube to 35 countries.


The U-Bend Tube Comply With The Following Standards:
1.    ASTM A688/ASME SA688
2.    ASTM A803/ASME SA803
3.    ASTM A556/ASME SA556

Steel Grade:


Ferrite

Austenite

Duplex

Super Duplex

Ni-Alloys

Titanium

TP410
TP405
S44400
S44660
TP430

TP409

TP409S

TP304/304L
TP316/316L
TP316Ti
TP317/317L
TP321
TP347

TP347 HFG

TP347

S31803
S32205
S32304

S31500

S31254

253MA

S32750
S32760

N06600

N06601

N06625
N08020
N08800

N08810

NO8811
N08825
N08904

Gr.2








Tube Of Other Alloys And Steel Grades Can Be Produced Upon Agreement.


Technical Requirements:

Straight Tubes Standard Specification For Bending:
ASME SA 213; ASME SB 163; ASME A789, ASME SA268, ASME SA269, etc.
Marking: Before Bending By Marking Machine All Over The Tube Length (Bent Section After Heat
Treatment Without Marking)
Note: Marking is also possible After Bending On The Straight Parts Of U-Bending Tube.

U-Bend Tubes:
-TEMA RCB 2.31 Standard Of The Tubular Exchanger Manufacturers Association (9th Edition).
-ASTM A688/ASME SA688 Standard Specification For Welded Tubes Of Austenitic Corrosion Resistant
Steel Grade Designed For Feed Water Boilers.
-ASTM B163/ASME SA163 Standard Techinical Requirements For Tubes Of Nickel And Nickel Alloy For
Condensers And Heat Exchangers.

-Customer Specifications.

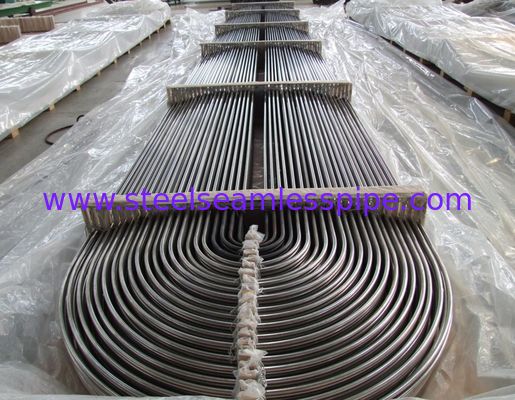

ASTM A268 TP405 / TP409 / TP409S / TP410 / TP430 /TP439 /TP444 / TP446 Stainless Steel U Bend Tube 0

Bending Radius: From 1.5*OD(Outside Diameter) To 1500mm
When Ordering Tubes With Radius less or equal to 1.5*OD, It Is Necessary To Agree Precision Of Geometrics.
Straight Tubes Maximum Length:(Before Bending): 35000 mm.
Leg Length: Min 1 Meter, Max. 16500 mm (For Max R=1500mm)
Note: Other Size Are Available Upon Agreement.
Heat Treatment: Stress Relieved After U-Bending (Bending Area Plus 300MM For Each Leg).
Hydrostatic Test After U Bending: Maximum Test Pressure 600 Bar, Soaking 10 Sec. With
Dematerialized Water. Compressed Air Cleaning After Hydro-Test.
Packaging: In Strong Transport-Worthy Pre-fumigated wooden boxes of corresponding dimensions for
each tube Length, Radius, Diameter, According To PO requirements as well as wrapped In polyethylene
films With soft plastic caps on both end of Tube.

Some of the quality tests carried out by us includes:

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing



ASTM A268 TP405 / TP409 / TP409S / TP410 / TP430 /TP439 /TP444 / TP446 Stainless Steel U Bend Tube 1
