| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B 167 / ASME SB 167 / ASTM B 163 / ASME SB 163 Inconel Alloy 600， UNS NO6600, 2.4816 |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10days-> |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 tons per month |
| Standard: | ASTM B163, ASTM B167, ASME SB163, ASME SB167 | Grade: | Inconel 600, NO6600, 2.4816 |
|---|---|---|---|
| Type: | Seamless Pipe , Seamless Tube ,Welded Pipe, Welded Tube | Surface: | Pickled And Annealed, Polished, Bright Annealed |
| High Light: | nickel alloy tube,inconel tube |
||

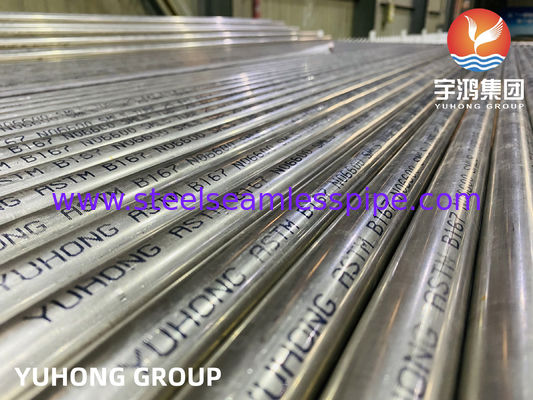

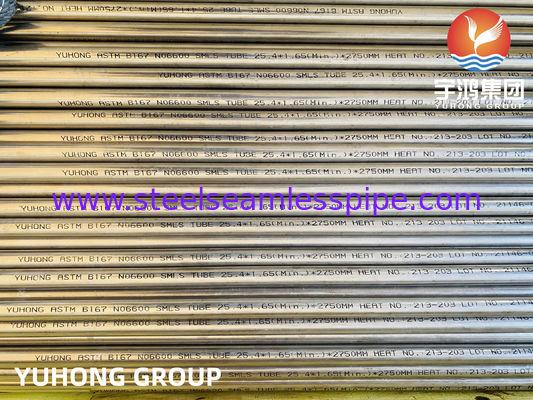

ASTM B 167 / ASME SB 167 / ASTM B 163 / ASME SB 163 Inconel Alloy 600 (NO6600, 2.4816)seamless Tube
Inconel Alloy 600
Common Trade Names: Inconel 600; Alloy 600; Nickel 600; Nickelvac 600; Ferrochronin 600.
INCONEL Alloy 600 (UNS N06600 W.Nr. 2.4816) is a standard engineering material for applications which
require resistance to corrosion and heat. The alloy also has excellent mechanical properties and presents
the desirable combination of high strength and good workability. The versatility of INCONEL alloy 600 has
led to its use in a variety of applications involving temperatures from cryogenic to above 2000°F (1095°C).
Specifications
Inconel Alloy 600 is designated as UNS N06600 and Werkstoff Number 2.4816.
Rod, Bar, Wire and Forging Stock: ASTM B 166; ASME SB 166; ASTM B 564; ASME SB 564; AMS 5665;
AMS 5687; BS 3075NA14; and 3076NA14; DIN 17752; DIN 17753; and DIN 17754; ISO 9723, 9724, and
9725, MIL-DTL-23229, QQ-W-390.
Plate, Sheet and Strip: ASTM B 168; ASME SB 168; ASTM B 906; ASME SB 906, ASME Code Cases 1827
and N-253, AMS 5540, BS 3072NA14 and 3073NA14, DIN 17750, ISO 6208, EN 10095, MIL-DTL-23228.
Pipe and Tube: ASTM B 167; ASME SB 167, ASTM B 163; ASME SB 163, ASTM B 516; ASME SB 516,
ASTM B 517; ASME SB 517, ASTM B 751; ASME SB 751, ASTM B 775; ASME SB 775, ASTM B 829;
ASME SB 829, ASME Code Cases 1827, N-20, N-253, and N-576, SAE/AMS 5580, DIN 17751, ISO 6207,
MIL-DTL-23227
Other: ASTM B 366/ASME SB 366, DIN 17742, ISO 4955A, AFNOR NC15Fe
Chemical Composition
|
UNS Designation |
N06600 |
|
Inconel Alloy |
600 |
|
Nickel (+ Cobalt) |
72 min. |
|
Cromium |
14.0 - 17.0 |
|
Iron |
6.00 - 10.00 |
|
Carbon |
0.15 max. |
|
Manganese |
1.0 max. |
|
Sulfur |
0.015 max. |
|
Silicon |
0.50 max |
|
Copper |
0.50 max. |
Inconel Products
The registered trademark name, INCONEL 600 / 601 / 625 / 800- H / 825 is applied as the prefix name to several highly corrosion resistant high temperature strength metal alloys produced by Special Metals Corporation. These INCONEL 600 / 601 / 625 / 800- H / 825 alloys or super alloys are nickel-based alloys that exhibit traits that include good corrosion resistance in aqueous environments, excellent strength and oxidation resistance in high-temperature settings, good creep-rupture strength, and ease of fabrication. Prosaic Steel & Alloys is not affiliated with the manufacturer(s). Orders will be filled to meet specifications from any available source(s). Names are listed solely for reference to help identify products consistent with listed specifications.
|
Inconel Tubes
Range: 1 mm OD upt o 254 mm OD in 0.2 TO 20 mm thickness. Type: Seamless, ERW, Welded, CDW Form: Round, Square, Rectangular, Coil, 'U' Shap Others: Hydraulic Tube, Horn Tube, Capillary Tube, Boiler Tube, Precision Tube, IBR Tube, Inconel square Tubes Length: Single Random, Double Random & Cut Length End: Plain End, Beveled End, Threaded |
 |
|
Inconel Pipes
Seamless / ERW / Welded/ Fabricated Inconel Alloy Pipes Form: Round, Square, Rectangular, Hydraulic Etc. Length: Single Random, Double Random & Cut Length End: Plain End, Beveled End, Threaded |
|
|
Inconel Flanges
Weld Neck, Slip On, Blind, Socket Weld, Lap Joint, Spectacles, Ring Joint, Orifice, Long Weld Neck, Deck Flange, etc. Class of inconel flanges: 150#, 300#, 400#, 600#, 900#, 1500# & 2500# |
|
|
Inconel Bars and Rods |
|
|
Inconel Forged Fittings
Types: Elbow - 90 Deg. & 45 Deg., Tee - Equal & Reducing, Union, Cross, Coupling - Full & Half, Socket Reducing, CAP, Plug-Hex & Square, Nipples (Hex/Reducing), Bushing, Sockolet, Weldolet, Thredolet, Elbolet, Nipolet |
|
|
Inconel Butt Weld Fittings Grades: UNS 8825 (Inconel 825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625) Types: Elbow - 90 Deg. & 45 Deg., Tee - Equal & Reducing, Union, Cross, Coupling - Full & Half, Socket Reducing, CAP, Plug-Hex & Square, Nipples (Hex/Reducing), Bushing, Sockolet, Weldolet, Thredolet, Elbolet, Nipolet |
|
|
Inconel Sheets and Plates
|
|
|
Inconel Fasteners
|
|
| Name | Alloy type | Alternative trade names |
| Nickel 200 | 99% + pure Nickel | Nickel 99.2 |
| Nickel 201 | 99% + pure Nickel | Nickel 201, LC Nickel 99.2 |
| Monel 400® | Nickel-Copper | Nickelvac® 400, Nicorros® 400 |
| Monel R405® | Nickel-Copper | |
| Monel K500® | Nickel-Copper | |
| Inconel 600® | Nickel-Chromium-Iron | Nickelvac® 600, Ferrochronin® 600 |
| Inconel 601® | Nickel-Chromium-Iron | Pyromet® 601, Nicrofer® 601 |
| Inconel 617® | Nickel-Chromium-Cobalt | Nicrofer® 617 |
| Inconel 625® | Nickel-Chromium-Iron | Chornin® 625, Altemp® 625, Nickelvac® 625, Haynes® 625 Nicrofer® 6020 |
| Inconel 718® | Nickel-Chromium-Iron | Nicrofer® 5219, Alvac® 718, Haynes® 718, Altemp® 718 |
| Inconel X750® | Nickel-Chromium-Iron | Haynes X750®, Pyromet® X750, Nickelvac®X750, Nicorros® 7016 |
| Incoloy 800® | Nickel-Chromium-Iron | Ferrochronin® 800, Nickelvac® 800, Nicrofer® 3220 |
| Incoloy 825® | Nickel-Chromium-Iron | Nickelvac® 825, Nicrofer 4241® |
| Hastelloy C22® | Chromium-Molybdenum-Tungsten | Inconel® 22, Nicrofer® 5621 |
| Hastelloy C276® | Nickel-Chromium-Molybdenum | Nickelvac® HC-276, Inconel® 276, Nicrofer® 5716 |
| Hastelloy B2® | Nickel-Chromium-Molybdenum | Nimofer® 6928 |
| Hastelloy X® | Nickel-Chromium-Iron-Molybdenum | Nickelvac® HX, Nicrofer® 4722, Altemp® HX, Inconel® HX |
| Vascomax® C250 | Nickel-Cobalt-Molybdenum | Maraging C250™, Maraging 250™ |
| Vascomax® 300 | Nickel-Cobalt-Molybdenum | Maraging 300, Maraging C300®, and Vascomax® C300 |
| Vascomax® C350 | Nickel-Cobalt-Steel | Maraging C350™ |
| Rene® 41 | Nickel-Chromium | |
| Multimet® N155 | Nickel-Chromium-Cobalt | |
| Waspaloy 25™ | Nickel-Cobalt | |
| Invar 36® | Nickel-Iron | Nilo 6®, Pernifer 6® |
| Invar 42® | Nickel-Iron | Nilo 42® |
| Trade Name | Inconel® 600 | Inconel® 625 |
| UNS # | N06600 | N06625 |
| Seamless Pipe / Tube | B/SB167, B/SB163 | B/SB444 |
| Welded Pipe / Tube | B/SB517, B/SB516, B474 | B/SB705, B474, B/SB704 |
| Buttweld Fittings* | B/SB366 Grade WPNCI | B/SB366 Grade WPNCMC |
| Forged Valves | B/SB564 | B/SB564 |
| Forged Fittings | B/SB564 | B/SB564 |
| Flanges | B/SB564 | B/SB564 |
| Plate | B/SB168 | B/SB443 |
| Cast Steel Valves | A/SA494 | A/SA494 |
| UNS N06040 | UNS N26625 | |
| Grade | CY40 | CW6MC |
