Detailed Product Description
| Material: |
Stainlesss, Carbon Steel , Duplex Steel , Nickel Alloy Steel |
Certification: |
API, PED |
| Products: |
Socket Reducer Inserts |
Package: |
PLY-WOODEN CASE OR PALLET |
| Origin: |
China |
| High Light: |
butt welding fittings, forged steel fittings |
Stainlesss Steel Forged Steel Fittings(Accesorios ) B16.22 flangeolet , weldolet , reduce tee , elbow , cap , tee
NOS ENCANTARíA APOYARLES EN LENGUA ESPAÑOLA Y INGLESA SI TIENE CUALQUIER REQUERIMIENTO RELATIVO!
Products  Socket Reducer Inserts |

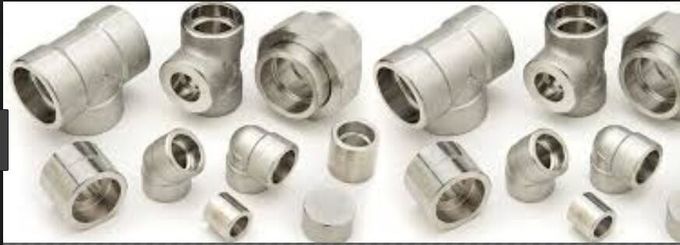

| Product Pictures and Drawings |
|
|
| Dimensional Data |
| Socket weld reducer Inserts availbale in class 3000, 6000 and 9000 |
| |
|
|
Class 3000 |
Class 6000 |
Class 9000 |
| Nominal Pipe Size |
C |
D |
Fitting
Type |
A |
B |
E |
Fitting
Type |
A |
B |
E |
Fitting
Type |
A |
B |
E |
| 3/8 x 1/4 |
0.675 |
0.555 |
1 |
7/16 |
3/4 |
15/16 |
1 |
7/16 |
7/8 |
1 |
|
|
|
|
| 1/2 x 3/8 |
0.850 |
0.690 |
1 |
7/16 |
13/16 |
1 1/16 |
1 |
7/16 |
15/16 |
1 3/16 |
|
|
|
|
| 1/2 x 1/4 |
0.850 |
0.555 |
1 |
7/16 |
13/16 |
15/16 |
1 |
7/16 |
7/8 |
1 |
|
|
|
|
| 3/4 x 1/2 |
1.060 |
0.855 |
1 |
7/16 |
7/8 |
1 5/16 |
1 |
7/16 |
1 1/16 |
1 3/8 |
1 |
7/16 |
1 3/16 |
1 3/4 |
| 3/4 x 3/8 |
1.060 |
0.690 |
2 |
7/16 |
5/8 |
- |
1 |
7/16 |
7/8 |
1 3/16 |
|
|
|
|
| 3/4 x 1/4 |
1.060 |
0.555 |
2 |
3/8 |
11/16 |
- |
2 |
3/8 |
7/8 |
- |
|
|
|
|
| 1 x 3/4 |
1.325 |
1.065 |
1 |
9/16 |
15/16 |
1 1/2 |
1 |
9/16 |
1 1/8 |
1 11/16 |
1 |
9/16 |
1 1/4 |
2 |
| 1 x 1/2 |
1.325 |
0.855 |
2 |
1/2 |
5/8 |
- |
1 |
7/16 |
1 1/8 |
1 3/8 |
1 |
7/16 |
1 1/8 |
1 3/4 |
| 1 x 3/8 |
1.325 |
0.690 |
2 |
7/16 |
11/16 |
- |
2 |
1/2 |
7/8 |
- |
|
|
|
|
| 1 x 1/4 |
1.325 |
0.555 |
2 |
3/8 |
3/4 |
- |
2 |
3/8 |
15/16 |
- |
|
|
|
|
| 1 1/4 x 1 |
1.670 |
1.330 |
1 |
9/16 |
1 |
1 7/8 |
1 |
9/16 |
1 3/16 |
2 |
1 |
9/16 |
1 3/8 |
2 3/8 |
| 1 1/4 x 3/4 |
1.670 |
1.065 |
2 |
9/16 |
11/16 |
- |
2 |
9/16 |
13/16 |
- |
1 |
9/16 |
1 3/16 |
2 |
| 1 1/4 x 1/2 |
1.670 |
0.855 |
2 |
1/2 |
3/4 |
- |
2 |
1/2 |
7/8 |
- |
2 |
1/2 |
7/8 |
- |
| 1 1/4 x 3/8 |
1.670 |
0.690 |
2 |
7/16 |
13/16 |
- |
2 |
7/16 |
15/16 |
- |
|
|
|
|
| 1 1/4 x 1/4 |
1.670 |
0.555 |
2 |
3/8 |
7/8 |
- |
2 |
3/8 |
1 |
- |
|
|
|
|
| 1 1/2 x 1 1/4 |
1.910 |
1.675 |
1 |
9/16 |
1 1/8 |
2 1/4 |
1 |
9/16 |
1 3/8 |
2 3/8 |
1 |
9/16 |
1 5/8 |
2 3/4 |
| 1 1/2 x 1 |
1.910 |
1.330 |
2 |
5/8 |
11/16 |
- |
1 |
9/16 |
1 3/16 |
2 |
1 |
9/16 |
1 3/8 |
2 3/8 |
| 1 1/2 x 3/4 |
1.910 |
1.065 |
2 |
9/16 |
3/4 |
- |
2 |
9/16 |
1 |
- |
2 |
9/16 |
1 |
- |
| 1 1/2 x 1/2 |
1.910 |
0.855 |
2 |
1/2 |
13/16 |
- |
2 |
1/2 |
1 1/16 |
- |
2 |
9/16 |
1 |
- |
| 1 1/2 x 3/8 |
1.910 |
0.690 |
2 |
7/16 |
7/8 |
- |
2 |
7/16 |
1 1/8 |
- |
|
|
|
|
| 2 x 1 1/2 |
2.385 |
1.915 |
1 |
9/16 |
1 1/4 |
2 1/2 |
1 |
9/16 |
1 7/8 |
2 11/16 |
1 |
9/16 |
2 1/16 |
3 |
| 2 x 1 1/4 |
2.385 |
1.675 |
2 |
11/16 |
13/16 |
- |
2 |
7/8 |
15/16 |
- |
1 |
9/16 |
2 |
2 3/4 |
| 2 x 1 |
2.385 |
1.330 |
2 |
5/8 |
7/8 |
- |
2 |
13/16 |
1 |
- |
2 |
13/16 |
1 |
- |
| 2 x 3/4 |
2.385 |
1.065 |
2 |
9/16 |
15/16 |
- |
2 |
3/4 |
1 1/16 |
- |
2 |
3/4 |
1 1/16 |
- |
| 2 x 1/2 |
2.385 |
0.855 |
2 |
1/2 |
1 |
- |
2 |
11/16 |
1 1/8 |
- |
2 |
11/16 |
1 1/8 |
- |
|
