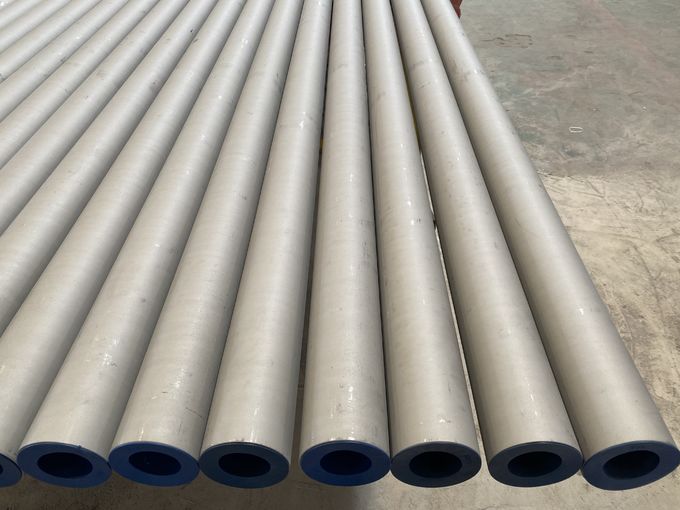

Stainless Steel Seamless Pipe , ASTM /ASME A312/SA312 TP317/TP317L,1.4438 Plain End 3" SCH40S

Stainless Steel Seamless Pipe , ASTM /ASME A312/SA312 TP317/TP317L,1.4438 Plain End 3" SCH40S

    • Stainless Steel Seamless Pipe , ASTM /ASME A312/SA312 TP317/TP317L,1.4438 Plain End 3" SCH40S
    • Stainless Steel Seamless Pipe , ASTM /ASME A312/SA312 TP317/TP317L,1.4438 Plain End 3" SCH40S
    • Stainless Steel Seamless Pipe , ASTM /ASME A312/SA312 TP317/TP317L,1.4438 Plain End 3" SCH40S
    • Stainless Steel Seamless Pipe , ASTM /ASME A312/SA312 TP317/TP317L,1.4438 Plain End 3" SCH40S
  • Stainless Steel Seamless Pipe , ASTM /ASME A312/SA312 TP317/TP317L,1.4438 Plain End 3" SCH40S

    Product Details:

    Place of Origin: CHINA
    Brand Name: YH,YHSS,YUHONG
    Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
    Model Number: ASTM /ASME A312/SA312 TP317/TP317L

    Payment & Shipping Terms:

    Minimum Order Quantity: 100KGS
    Packaging Details: PLYWOOD CASE,BUNDLE,PALLET
    Delivery Time: 7DAYS
    Payment Terms: L/C, T/T
    Contact Now
    Detailed Product Description
    MATERIAL: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L STANDARD: ASTM A269, ASTM A312 / A312M, ASTM A511/A511M
    TYPE: SEAMLESS /WELDED END: PE,BE
    SURFACE: PICKLED AND ANNEALED LENGTH: SRL,DRL

    Stainless Steel Seamless Pipe , ASTM /ASME A312/SA312 TP317/TP317L 1.4438 Plain End 3" SCH40S



    YUHONG GROUP deal with Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 25 years, every year sell more than 80000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Russia, Korea, Singapore, Austrial, Poland, France , ....



    Stainless Steel Seamless/Welded Pipe/Tubes

    ASTM/ASME Standards
    ASTM A 213/A 213M ASME SA213/SA213M Specification for Seamless Ferric and Austenitic Alloy-Steel Boiler, Su[perheater, and Heat-Exchanger Tubes
    ASTM A 249/A 249M Specification for Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser tubes
    ASTM A268/A268M, ASME SA268/SA268M Specification Seamless and welded ferritic and martensitic stainless steel tubing for general service
    ASTM A269/A269M, ASME SA269/SA269M Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
    ASTM A 270 Specification for Seamless and Welded Austenitic and Ferritic/Austenitic Stainless Steel Sanitary Tubing
    ASTM A312/A312M, ASME SA312/SA312M Specification for Seamless and Welded Austenitic Stainless Steel Pipes
    ASTM A 358/A 358M Specification for Electric-Fusion-Welded Austenitic Chromium-Nickel Alloy Steel Pipe for High-Temperature Service
    ASTM A376/A376M, ASME SA376/SA376M Seamless austenitic steel pipes for high-temperature central-station service
    ASTM A409/SA409 Welded Large Diameter Austenitic Steel Pipe for Corrosive or High Temperature Service
    ASTM A 450/A 450M Specificaion for General Requirements for Carbon, Ferritic Alloy, and Austenitic Alloy Steel Tubes
    ASTM A 511 Specification for Seamless Stainless Steel Mechanical Tubing
    ASTM A 530/ A 530M Specification for General Requirements for Specialized Carbon and Alloy Steel Pipe
    ASTM A 554 Specification for Welded Stainless Steel Mechanical Tubing
    ASTM A 688 / SA 688 For Welded feed water heater ‘U’ Tubes
    ASTM A731 / A731M Seamless and Welded Ferritic and Martensitic Stainless Steel Pipe
    ASTM A 778 Specification for Welded, Unannealed Austenitic Stainless Steel Tubular Products
    ASTM A789/A789M, ASME SA789/SA789M Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service
    ASTM A790/A790M, ASME SA790/SA790M Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
    ASTM A791 / A791M Welded Un-annealed Ferritic Stainless Steel Tubing
    ASTM A 999/A 999M Specification for General Requirements for alloy and Stainles Steel Pipe

    BS-Standards
    BS 3059 Steel boiler and super heater tubes
    BS 3605 Austenitic stainless steel pipes and tubes for pressure purposes
    BS 3606 Steel tubes for heat exchangers

    NF-Standards
    NF A 49-117 Seamless ferritic and austenitic stainless steel tubes for general service
    NF A 49-217 Seamless ferritic, austenitic, and ferritic-austenitic stainless steel tubes for heat exchangers
    NF A 49-317 Seamless plain-end austenitic stainless steel mechanical tubing

    German-Standards
    DIN 17456 Seamless circular austenitic stainless steel tubes for general service
    DIN 17457 Welded circular austenitic stainless steel tubes subject to special requirements
    DIN 17458 Seamless circular austenitic stainless steel tubes subject to special requirements
    DIN 17459 Seamless circular high-temperature austenitic stainless steel tubes
    DIN 28180-85 Seamless steel tubes for tubular heat exchangers
    DIN EN ISO 1127 Seamless stainless steel tubes (Dimensions and weights)

    EN Standards
    EN 10216-5 Welded Stainless Steel Tube
    EN 10216-7 Seamless Stainless Steel Tube

    Australian Standards
    AS 1528 Tubes (Stainless Steel) and Tube Fittings for the Food Industry.

    JIS-Standards
    JIS G 3447 Stainless Steel Sanitary Pipes
    G 3448 Light Gauge Stainless Steel Tubes for Ordinary Piping
    G 3459 Stainless Steel Pipes
    G 3468 Large Diameter Welded Stainless Steel Pipes
    G 3463 Stainless Steel Boiler and Heat Exchanger Tubes
    G 3446 Stainless Steel Pipes for Machine and Structural Purposes

    GOST
    GOST 9940 Seamless stainless steel tubes, hot finished(5-273 mm)
    GOST 9941 Seamless stainless steel tubes, cold and hot finished(5-273 mm)

    SEW 400 Stainless steels
    AD 2000-W2 Materials for pressure vessels - austenitic stainless steels
    UNI 6904 Seamless tubes of special alloyed corrosion and heat resisting stainless steel


    STAINLESS STEEL PIPE FITTINGS AND FLANGES
    ASTM A182 / A182M Forged or Rolled Alloy Steel Pipe Flanges, Forged Fittings and Values and Parts for High Temperature Service
    ASTM A403 / A403M Wrought Austenitic Stainless Steel Piping Fittings
    ASTM A530 / A530M General Requirements for Specialised Carbon and Alloy Steel Pipe
    ASTM A815 / A815M Wrought Ferritic, Ferritic / Austenitic and Martensitic Stainless Steel Piping Fittings
    ASTM A276 Stainless and Heat Resisting Steel Bars and Shapes
    ASTM A351 / A351M Steel Castings, Austenitic, for High Temperature Service
    AS 2129 Flanges for Pipes, Values and Fittings
    ANSI / ASME B 1.20.1 Pipe threads, general purpose (inch)
    ANSI B 16.3 Malleable iron threaded fittings
    ANSI B 16.5 Steel pipe flanges and flanged fittings
    ANSI B 16.9 Factory made wrought steel butt welding fittings
    ANSI B 16.11 Forged steel fittings wocket-welding and threaded
    ANSI B 16.25 Butt-welding ends
    ANSI B 16.28 Wrought steel butt welding short radius elbows and returns

    Austenitic:
    TP310S(0Cr25Ni20, 2520),
    TP314(1Cr25Ni20Si2),
    TP304(0Cr18Ni9),
    TP321H(0Cr18Ni11Ti),
    904L (00Cr20Ni25Mo4.5Cu,UNS N08904),
    TP317L(00Cr19Ni13Mo3),
    TP317(0Cr19Ni13Mo3)
    TP347(0Cr18Ni11Nb)
    TP347H(1Cr19Ni11Nb)
    TP321(0Cr18Ni10Ti),
    TP304H(1Cr18Ni9),
    C4(00Cr14Ni14Si4),
    316Ti(0Cr18Ni12Mo2Ti),
    TP304L(00Cr19Ni10)
    TP316(0Cr17Ni12Mo2),
    TP316L(00Cr17Ni14Mo2),
    S31254(00Cr20Ni18Mo6CuN)

    Duplex:
    UNSS31803 (00Cr22Ni5Mo3N SAF2205),
    UNS S32304 (00Cr23Ni4N SAF2304),
    UNS S32750 (00Cr25Ni7Mo4N SAF 2507)

    Martensitic:TP410(1Cr13),TP420(2Cr13,3Cr13)

    Ferritic:TP430(1Cr17),TP405(0Cr13Al)

    Alloy: Monel 400,800/800H, Hastelloy C-276

    Urea Grade: TP316L (00Cr18Ni14Mo3) S31050 (00Cr25Ni22Mo2N)

    Standard: ASTM/ASME A/SA312,ASTM/ASME SA/A213,ASTM A269,ASTM A511,ASTM A789
    ASTM A790,ASTM A268,ASTM A450/A450M
    JIS G3459, JIS G3463, DIN 17456, DIN 17458 ,EN 10216-5, GB/T14975-2002, GB/T14976-2002, GB13296-91,GB 5310, etc.

    The application fields covered Oil & Gas, Heat Exchanger, Petro-Chemical, Chemical, Shipbuilding, Pulp & Paper, Instrumentation, Automobile, and, food & Pharmaceutic, Nuclear Power Station, Off-shore Platform, Engineering, and etc.

    ANSI B16.10: B16.19 SCH 5S, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 60, SCH80S, XS, SCH 100, SCH 120, SCH160, XXS




    USA
    -
    Germany
    DIN,WNr
    Japan
    JIS
    France
    AFNOR
    England
    BS
    China
    GB
    Sweden
    SS
    Poland
    PN
    Finland
    SFS
    Russia
    GOST
    304
    X5CrNi18-9
    SUS304
    Z7CN18-09
    304S31
    0Cr18Ni9
    2333
    0H18N9
    725
    08KH18N10





    Material Grade:

    American Standard

    Austenitic Steel:

    TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…

    Duplex Steel :

    S32101,S32205,S31803,S32304,S32750, S32760

    Others:TP405,TP409, TP410, TP430, TP439,...

    Europen Standard 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501
    Russia Standard 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ





    Size Range:

    Production Outside Diameter Wall Thickness
    Seamless Pipe 6.00mm to 830mm 0.5mm to 48mm



    Stainless Steel Seamless Pipe , ASTM /ASME A312/SA312 TP317/TP317L,1.4438 Plain End 3" SCH40S
