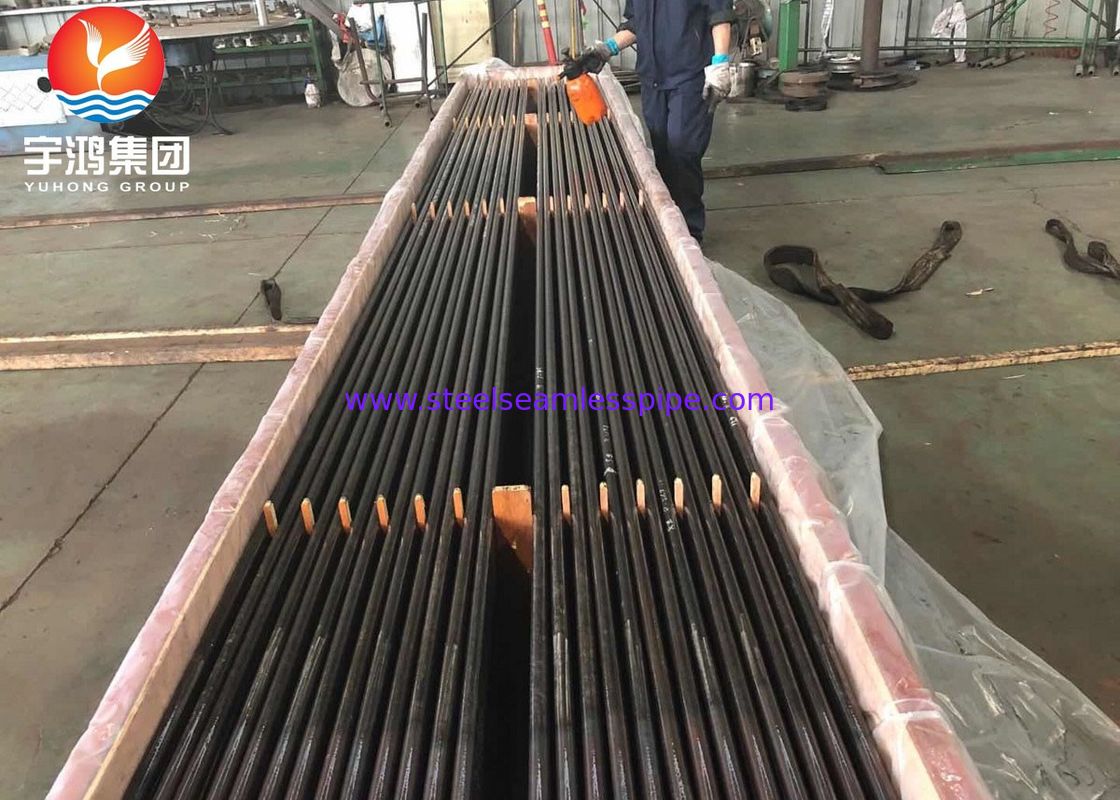

ASTM A179,ASME SA179 Carbon Steel Tubes HT Available For Heat Exchanger

ASTM A179,ASME SA179 Carbon Steel Tubes HT Available For Heat Exchanger

ASTM A179,ASME SA179 Carbon Steel Tubes HT Available For Heat Exchanger
video
ASTM A179,ASME SA179 Carbon Steel Tubes HT Available For Heat Exchanger
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ISO9001-2008, API 5L, API 5CT
Model Number: ASTM A179/ ASME SA179
Payment & Shipping Terms:
Minimum Order Quantity: 100 kgs
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with Plastic Cap
Delivery Time: 15 Days
Payment Terms: L/C, T/T
Supply Ability: 10000 Tons Per Month
Contact Now
Detailed Product Description
Standard: ASTM A179 , ASME SA179 Size: 3/4" (19.05), 1"(25.4) , 1-1/4"(31.75), 1-1/2"(38.1), 2" (50.8), 2-1/2"(63.5) , 3" (76.2)
Grade: A B C Length: 12ft (3657.6) , 15ft (4572), 16ft (4876.8), 6m , 20ft (6096) , 24ft(7315.2 )
High Light:

astm a179 stainless steel boiler tubes

,

gr. a stainless steel boiler tubes

,

asme sa179 boiler tubes

ASTM A179/ASME SA179 Seamless Carbon Steel Boiler Tubing / Tube / Tubes, Gr. A , GR.C





Application: For high, middle, low pressure boiler and pressure purpose





Production Standard, Grade, Steel No:

ASTM A178 Grade A, C, D

ASTM A179 Grade A, C, D

ASTM A192

ASTM A210 GradeA-1, C

BS3059-Ⅰ 320 CFS

BS3059-Ⅱ 360, 440, 243, 620-460, 622-490, S1, S2, TC1, TC2

EN10216-1 P195TR1/TR2, P235TR1/TR2, P265TR1/TR2

EN10216-2 P195GH, P235GH, P265GH, TC1, TC2

DIN17175 ST35.8, ST45.8

DIN1629 ST37.0, ST44.0, ST50.0

JIS G3454 STPG370, STPG410

JIS G3461 STB340, STB410, STB440

GB5310 20G, 15MoG, 12CrMoG, 12Cr2MoG, 15CrMoG, 12Cr1MoVG, 12Cr2MoWVTiB

GB9948 10, 20, 12CrMo, 15CMo

GB3087 10, 20

Delivery Condition:Annealed, Normalized, Normalized and Tempered

Inspection and Test:

Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength,

Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test,No-destructive Test, Hydrostatic Test.

Surface treatment:

Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting



Tube Sizes for Heat Exchangers & Condensers & Boiler
Outside Diameter   BWG
25 22 20 18 16 14 12 10
  Wall Thickness mm
0.508 0.71 0.89 1.24 1.65 2.11 2.77 3.40
mm inch   Weight kg/m
6.35 1/4 0.081 0.109 0.133 0.174 0.212
9.53 3/8 0.126 0.157 0.193 0.257 0.356 0.429
12.7 1/2   0.214 0.263 0.356 0.457 0.612 0.754
15.88 5/8   0.271 0.334 0.455 0.588 0.796 0.995
19.05 3/4   0.327 0.405 0.553 0.729 0.895 1.236
25.4 1   0.44 0.546 0.75 0.981 1.234 1.574 2.05
31.75 1 1/4   0.554 0.688 0.947 1.244 1.574 2.014 2.641
38.1 1 1/2   0.667 0.832 1.144 1.514 1.904 2.454 3.233
44.5 1 3/4       1.342 1.774 2.244 2.894 3.5
50.8 2       1.549 2.034 2.574 3.334 4.03
63.5 2 1/2       1.949 2.554 3.244 4.214 5.13
76.2 3       2.345 3.084 3.914 5.094 6.19
88.9 3 1/2       2.729 3.609 4.584 5.974 7.27
101.6 4         4.134 5.254 6.854 8.35
114.3 4 1/2         4.654 5.924 7.734 9.43
Form of Tube: Straight & U-bend & Finned & Coiled
Stainless Steel Tube: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, JIS-G3463, GOST9941-81.
Carbon &Alloy Steel Tube: A/SA178, A/SA179, A/SA192,A/SA209, A/SA210, A/SA213, A.SA214



ASTM A179,ASME SA179 Carbon Steel Tubes HT Available For Heat Exchanger 0
