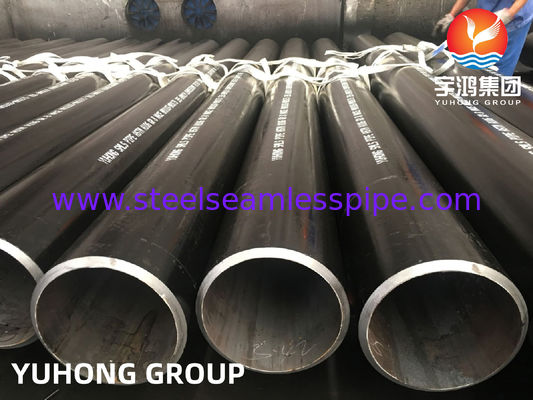

ASTM A106 GR.B Carbon Steel Seamless Pipe High Temperature Service
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A106 GR.B
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Delivery Time: Depends on quantity
Payment Terms: T/T, L/C
Supply Ability: 1000 tons per month
Contact Now
Detailed Product Description
Specification: ASTM A106, ASME SA106 Grade: GR.B
Type: Seamless Non Destructive Test: Eddy Current Test -ASTM E426, Hystostatic Test-ASTM A999, Ultrsonic Test -ASTM E213
High Light:

High Temperature Carbon Steel Seamless Pipe

,

ASTM A106 Carbon Steel Tube

,

Grade B Carbon Steel Seamless Pipe

ASTM A106 GR.B Carbon Steel Seamless Pipe High Temperature Service



ASTM A106 Grade B Pipe is a specification and grade for high temperature, high pressure carbon steel pipes.



This specification covers seamless carbon steel pipe for high-temperature service (Note 1) in NPS 1⁄8 to NPS 48 [DN 6 to DN 1200] (Note 2) inclusive, with nominal (average) wall thickness as given in ASME B36.10M.



It shall be permissible to furnish pipe having other dimensions provided such pipe complies with all other requirements of this specification.



Pipe ordered under this specification shall be suitable for bending, flanging, and similar forming operations, and for welding. When the steel is to be welded, it is presupposed that a welding procedure suitable to the grade of steel and intended use or service will be utilized.



YUHONG Group is a supplier of these pipes in different sizes and quantities. There are different standards and grades that are used in different applications. The A106 Grade B Seamless Pipe is used in applications where hot gases and fluids are transported at elevated temperatures. This is important to keep the energy consumption down at these plants. There are different pressure classes denoted by the schedules of these pipes.



Chemical Composition:



  Grade B
Carbon max. % 0.30
Manganese % 0.29 to 1.06
Phosphorous, max. % 0.035
Sulfur, max. % 0.035
Silicon, min.% 0.10
Chrome, max. % 0.40
Copper, max. % 0.40
Molybdenum, max. % 0.15
Nickel, max. % 0.40
Vanadium, min.% 0.08



 Equivalent Material:



  Former New
Execution Standard Material Standard Material
Seamless ASTM A106 GRADE B EN 10216-2 P265GH



ASTM A106 Gr B Pipe Weight Chart Diameter



NPS [DN Designator] Over Under
in. mm in. mm
1/8 to 1-1/2 [6 to 40], incl 1/64 (0.015) 0.4 1/64 (0.015) 0.4
Over 1-1/2 to 4 [40 to 100], incl 1/32 (0.031) 0.8 1/32 (0.031) 0.8
Over 4 to 8 [100 to 200], incl 1/16 (0.062) 1.6 1/32 (0.031) 0.8
Over 8 to 18 [200 to 450], incl 3/32 (0.093) 2.4 1/32 (0.031) 0.8
Over 18 to 26 [450 to 650], incl 1/8 (0.125) 3.2 1/32 (0.031) 0.8
Over 26 to 34 [650 to 859], incl 5/32 (0.156) 4.0 1/32 (0.031) 0.8
Over 34 to 48 [850 to 1200], incl 3/16 (0.187) 4.8 1/32 (0.031) 0.8





ASTM A106 GR.B Carbon Steel Seamless Pipe High Temperature Service 0



Tensile Requirements:



  Grade B
Tensile Strength, min., psi 60,000
Yield Strength, min., psi 35,000





Applications:



-Petrochemical Industry
-Chemical Industry
-Oil and Gas Industry
-Pulp & Paper Indusry
-Power Plant Industry
-Food Processing Industry
-Pharmaceuticals Industry
-Energy Industry
-Aerospace Industry



FAQ:



Q1: What is the difference between specification A106 and SA106?



A: There is no difference between A106 and SA106.
SA106 is a grade of American ASME, and A106 is the grade of ASTM.



Q2: What does the mark CD in the steel pipe SA106Gr.B standard mean?



A: CD means cold drawn,SA106 stipulates that pipes below DN40 can be hot-rolled or cold-drawn; pipes above DN50 are conventionally hot-rolled. When the manufacturer and the purchaser reach an agreement, cold-drawn manufacturing is allowed.



Q3: What is the difference between ASME SA-106 and ASME SA-106M?



A: The difference between ASME SA-106 and ASME SA-106M is that if the size standard is imperial, use ASME SA-106, if the size standard is metric, use ASME SA-106M.
