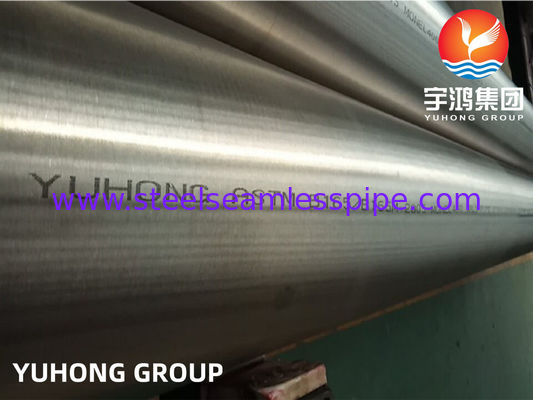

ASME SB163 Monel 400 UNS NO4400 Nickel Alloy SMLS Tube Evaporators Application

ASME SB163 Monel 400 UNS NO4400 Nickel Alloy SMLS Tube Evaporators Application

  • ASME SB163 Monel 400 UNS NO4400 Nickel Alloy SMLS Tube Evaporators Application
  • ASME SB163 Monel 400 UNS NO4400 Nickel Alloy SMLS Tube Evaporators Application
  • ASME SB163 Monel 400 UNS NO4400 Nickel Alloy SMLS Tube Evaporators Application
  • ASME SB163 Monel 400 UNS NO4400 Nickel Alloy SMLS Tube Evaporators Application
  • ASME SB163 Monel 400 UNS NO4400 Nickel Alloy SMLS Tube Evaporators Application
ASME SB163 Monel 400 UNS NO4400 Nickel Alloy SMLS Tube Evaporators Application
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG GROUP
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: Monel 400
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Price: Negotiation
Packaging Details: Ply-wooden Case/Bundle
Delivery Time: Depends on quantity
Payment Terms: T/T, L/C at sight
Supply Ability: 10000Ton/Month
Contact Now
Detailed Product Description
Material Grade: UNS NO4400 Standard: ASTM B 165
Size: 21.34mm- 168.28 Mm W.T: 0.6mm - 20mm
Length: Single Random, Double Random & Cut Length NDT: ET/HT/UT/PT
Packing: Ply-wooden Case/Bundle Application: Marine Fixtures/Chemical Plant Equipment
High Light:

UNS NO4400 Inconel Seamless Pipe

,

Marine Fixtures Pumps Seamless Pipe

,

Monel 400 Inconel Pipe



ASME SB163 Monel 400 UNS NO4400 Nickel Alloy SMLS Tube Evaporators Application










What is monel 400?



Monel400 alloy (UNS NO4400 or MCu-28-1.5-1.8 or Ni68Cu28Fe) is a nickel-based alloy material with good corrosion resistance in seawater, chemical solvents, ammonia, sulfur, chlorine, hydrogen chloride, and a variety of acidic mediums, such as sulfuric acid, hydrofluoric acid, hydrochloric acid, phosphoric acid, organic acids, alkaline mediums, salts and molten salts. This alloy has a strong, corrosion-resistant comprehensive performance, widely used in chemical and other industries. For example, it is used in the manufacture of heaters, heat exchangers, evaporators, distillation kettles, distillation towers, condensers for fatty acid treatment, equipment for the treatment of rosin-tinged acid, chemical pumps and so on. As the alloy also has high strength and good oxidation resistance at high temperatures, it can also be used in the heat treatment industry, manufacturing a variety of structural components. In the nuclear power industry, the alloy has good corrosion resistance to high temperature and high pressure water.
Cold rolling is a plastic deformation process, which is characterized by high dimensional accuracy, internal surface finish, and has high mechanical properties.LG60 in the rolling of Monel400, the surface of the pipe locally appeared spiral defects, resulting in reduced productivity, yield reduction, to the latter order of pipe rolling also brought about a negative impact. Therefore, it is necessary to increase the grinding process to eliminate the defect.





Chemical Composition of monel 400





Grade C Mn Si S Cu Fe Ni Cr
Monel 400 0.30 max 2.00 max 0.50 max 0.24max 28.0-34.0 2.50 max 63.00 min





Physical Properties of monel 400





Properties Metric Imperial
Density 8.8 gm/cm3 0.318 lb/in3





Equivalent Material Grade Of monel 400





STANDARD UNS WERKSTOFF NR. EN JIS GOST BS AFNOR
Monel 400 N04400 2.4360 NiCu30Fe NW 4400 МНЖМц 28-2,5-1,5 NA 13 NU-30M





Pressure Rating Of UNS N04400





Monel 400 Pipe O.D.
(in.)
Wall Thickness of Monel 400 Pipe (inches)
0.0035 0.0028 0.0049 0.0083 0.0095 0.0065 0.0109 0.0120
1/4 4800 3700 7000     9500
1/8 10100 7900
3/8 3100   4400     6100
5/16 3700   5400     7300
3/4     2200 4000 4600 3000
1/2 2300   3200     4400
1       2900 3400 2200 3900 4300









The characteristics of monel 400



MONEL 400 is a nickel-copper grade alloy that provides high strength and corrosion resistance. It exhibits excellent corrosion resistance in a wide range of environments including seawater, hydrofluoric acid, fluorine, sulfuric acid and alkaline media.





ASME SB163 Monel 400 Application



Filling columns

Pressure vessels and reactors

Brine heaters

Heat exchangers

Salt production equipment

Pumps and valve assemblies

Pipes and pipe stubs
