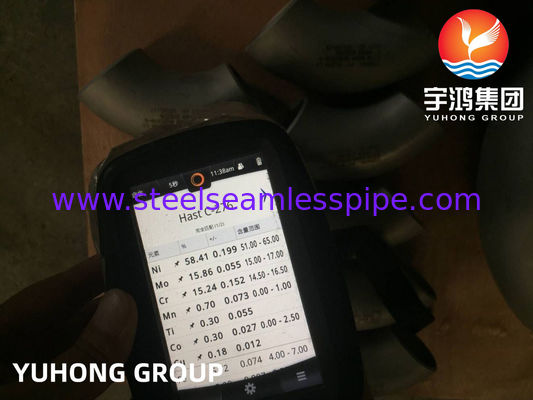

Hastelloy ASTM B366 C276 45 / 90 / 180 Deg Elbow Buttweld Fitting

Hastelloy ASTM B366 C276 45 / 90 / 180 Deg Elbow Buttweld Fitting

  • Hastelloy ASTM B366 C276 45 / 90 / 180 Deg Elbow Buttweld Fitting
  • Hastelloy ASTM B366 C276 45 / 90 / 180 Deg Elbow Buttweld Fitting
  • Hastelloy ASTM B366 C276 45 / 90 / 180 Deg Elbow Buttweld Fitting
  • Hastelloy ASTM B366 C276 45 / 90 / 180 Deg Elbow Buttweld Fitting
Hastelloy ASTM B366 C276 45 / 90 / 180 Deg Elbow Buttweld Fitting
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM B366 C276 ELBOW
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: According to Client Requirements/ Ply-wooden Case/ Iron Case/ Bundle with plastic Cap
Delivery Time: Depends on quantity
Payment Terms: T/T, L/C AT SIGHT
Supply Ability: According to Client Requirements
Contact Now
Detailed Product Description
Product Name: 180 Degree Elbow Type: Butt Weld
Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS Size: 1/8"NB TO 48"NB IN
Applications: Cellophane Manufacturing, Chlorination Systems, Pesticide Production, Incineration Scrubber Systems, Etc. Packaging: PLY-WOODEN CASE OR PALLET
High Light:

180 Degree Elbow Buttweld Fittings

,

Hastelloy C22 90 Degree Elbow

,

Buttweld Steel Pipe Elbow

Hastelloy ASTM B366 C276 45 / 90 / 180 Deg Elbow Buttweld Fittings



Yuhong Group supply Boiler tube , Heat Exchange Tube, Air Cooling Tube , Condenser Tube more than 33 years , and our material grade contain Stainless Steel , Duplex Steel , Super Duplex Steel , Hastelloy , Monel , Inconel , Incoloy , Cr-Mo alloy , Copper alloy steel , and very year sell more than 80000 tons pipes and tubes to our client projects. And up to now we already export more than 55 countries. The pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.



Hastelloy C276 pipe fittings are made of chromium, nickel and molybdenum and are stable thanks to the addition of tungsten. Hastelloy pipe fittings are re-annealed after cold working for optimum performance. Hastelloy joints harden rapidly during processing. For scrubbers, dampers and pipes, alloy C276 reducer is used. The thermoformed C276 Hastelloy end caps require solution heat treatment prior to installation and final use.



Hastelloy C276 Equivalent Material



STANDARD

WERKSTOFF NR.

AFNOR

GOST

UNS

JIS

BS

EN

Hastelloy C276 Pipe Fittings

-

ХН65МВУ

2.4819

N10276

NW 0276

-

NiMo16Cr15W



Hastelloy C276 Mechanical Composition



Element

Density

Melting Point

Tensile Strength

Yield Strength (0.2%Offset)

Elongation

Hastelloy C276 Pipe Fittings

8.89 g/cm3

1370 °C (2500 °F)

Psi – 1,15,000 , MPa – 790

Psi – 52,000 , MPa – 355

40 %



Hastelloy Pipe Fittings Physical Properties



Density

Melting Range

Specific Heat

Magnetic Permeability

lb/in3

g/cm3

°F

°C

Btu/lb.°F

J/kg*°C

200 oersted

15.9 kA/m

0.321

8.89

2415-2500

1323-1371

0.102

427

1.0002

1.0002



Dimensional Standards for Hastelloy C-276 Fittings



Standard Product
ASME B16.9 Hastelloy C-276 butt welding pipe fittings
ASME B16.11 Hastelloy C-276 high pressure forged fittings
MSS SP-43 Hastelloy C-276 butt welding pipe fittings
MSS SP-95 Hastelloy C-276 swage nipples and bull plugs
MSS SP-97 Hastelloy C-276 forged branch outlets





Application

  • Chemical Processing Industry
  • Petrochemical Industry
  • Oil and Gas Industry
  • Power Generation
  • Desalination Plants
  • Pharmaceutical Industry
  • Waste Treatment and Pollution Control
  • Marine Applications
