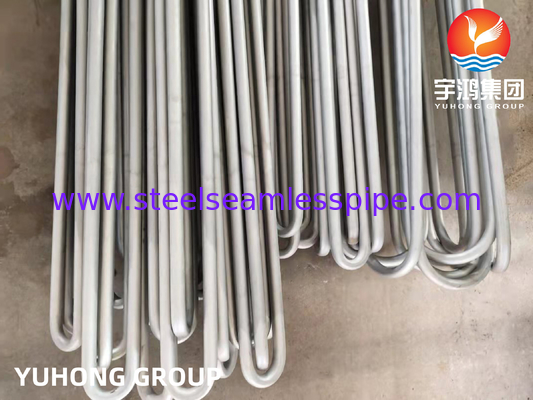

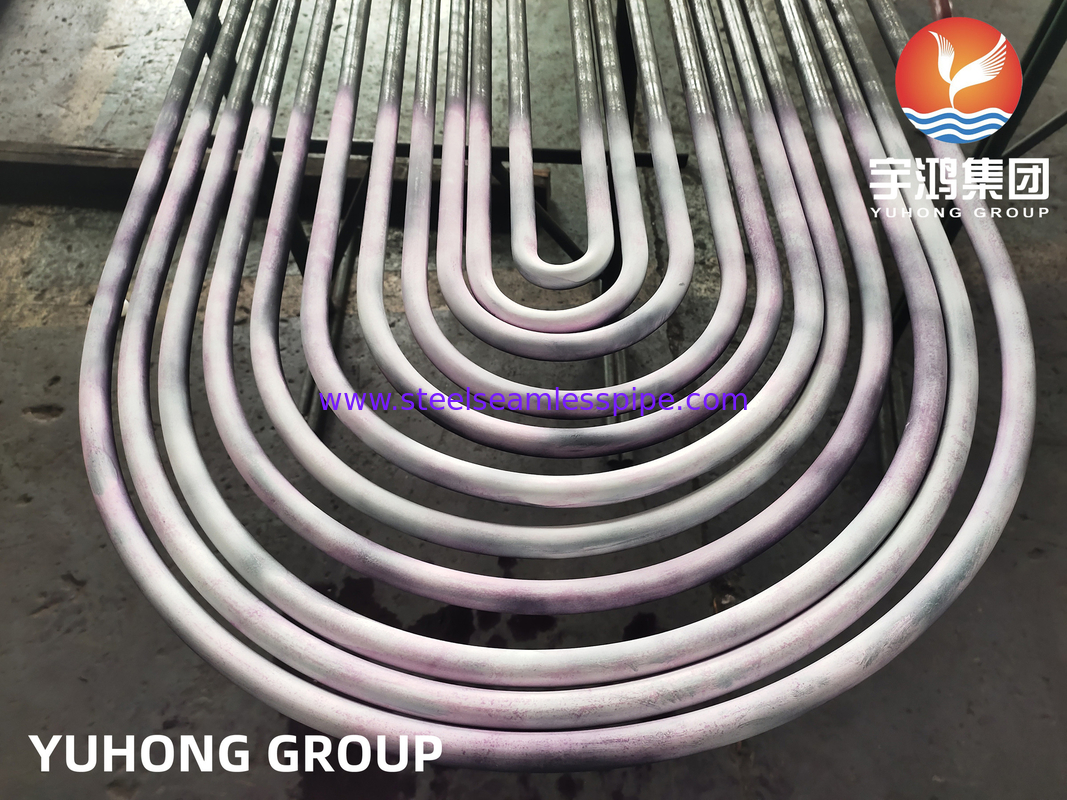

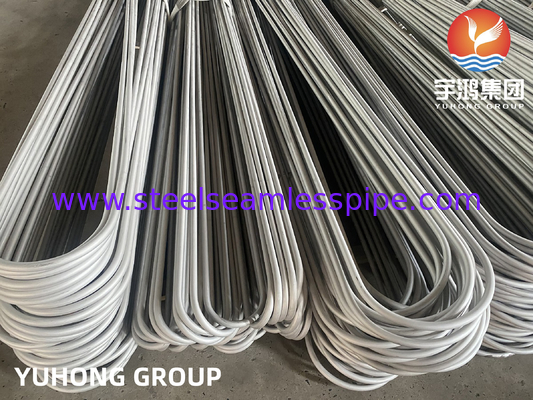

SA213 /SA213-2017 TP304L SEAMLESS U BEND TUBE, 25.4MM X 2.11MM X 6096MM , MIN. WALL THICKNESS . 100% ET / HT

SA213 /SA213-2017 TP304L SEAMLESS U BEND TUBE, 25.4MM X 2.11MM X 6096MM , MIN. WALL THICKNESS . 100% ET / HT

    • SA213 /SA213-2017  TP304L SEAMLESS U BEND TUBE, 25.4MM X 2.11MM  X 6096MM , MIN. WALL THICKNESS . 100% ET / HT
    • SA213 /SA213-2017  TP304L SEAMLESS U BEND TUBE, 25.4MM X 2.11MM  X 6096MM , MIN. WALL THICKNESS . 100% ET / HT
    • SA213 /SA213-2017  TP304L SEAMLESS U BEND TUBE, 25.4MM X 2.11MM  X 6096MM , MIN. WALL THICKNESS . 100% ET / HT
    • SA213 /SA213-2017  TP304L SEAMLESS U BEND TUBE, 25.4MM X 2.11MM  X 6096MM , MIN. WALL THICKNESS . 100% ET / HT
    • SA213 /SA213-2017  TP304L SEAMLESS U BEND TUBE, 25.4MM X 2.11MM  X 6096MM , MIN. WALL THICKNESS . 100% ET / HT
    • SA213 /SA213-2017  TP304L SEAMLESS U BEND TUBE, 25.4MM X 2.11MM  X 6096MM , MIN. WALL THICKNESS . 100% ET / HT
  • SA213 /SA213-2017  TP304L SEAMLESS U BEND TUBE, 25.4MM X 2.11MM  X 6096MM , MIN. WALL THICKNESS . 100% ET / HT

    Product Details:

    Place of Origin: China
    Brand Name: YUHONG
    Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
    Model Number: TP304, TP304L , TP304H TP310S, TP316L , TP316Ti, TP317L , TP321, TP347H , TP321H

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 KGS
    Price: negotiable
    Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
    Delivery Time: 10days->
    Payment Terms: T/T, L/C
    Supply Ability: 1500 tons per month
    Detailed Product Description
    Material Grade: TP304, TP304L , TP304H TP310S, TP316L , TP316Ti, TP317L , TP321, TP347H , TP321H Size OD: 6.35MM , 9.52MM, 12.7MM , 15.88MM , 19.05MM, 20MM, 22,23MM, 25MM, 25.4MM , 31.75MM, 38.1MM , 44.45MM, 50.8MM , 63.5MM , 76.2MM, 88.9MM, 101.6MM, 152.4MM
    Size WT: 0.89MM, 1MM, 1.24MM, 1.5MM, 1.65MM, 2MM, 2.11MM, 2.463MM, 2.5MM, 2.77MM, 3.05MM, 3.4MM NDT: ET / UT/ HT/ PT
    Application: Boiler,Heat Exchanger, Cooling, Condenser , Heater

    SA213 /SA213-2017 TP304L SEAMLESS U BEND TUBE, 25.4MM X 2.11MM X 6096MM , MIN. WALL THICKNESS . 100% ET / HT



    YUHONG deal with Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 25 years, every year sell more than 80000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Russia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.


    Applications The common application fields are:

    • heat exchangers (condensers, evaporators, sea water desalinators)
    • chemical and petrochemical industries
    • food processing and refrigeration industries

    Technical Specifications

    U-bent tubes are manufactured according to the technical specifications requested by customers:

    • Outside diameter of the tube: 6 ÷ 90 mm.
    • Maximum overall length: > 26 m.
    • Bending radius (min.): 1,5 × tube diameter.
    • Bending radius (max.): 1200 mm.
    • Heat treatment (by Joule effect on bent area) in inner and outer inert atmosphere.
    • Anti oxidation surface treatment (with protective oils).
    • Trimming and deburring of the ends.
    • Internal cleaning and caps insertion.
    • Packing in custom racks.


    Stainless Steel U Bend Tube ASME B163 B677 N8904 / 904L Pickled and Annealed & Plain End


    U-Bend Tube are widely used in Heat Exchanger Systems. Heat-Exchanger Equipment on the basis of
    Seamless Stainless U-Tubes and Welded Stainless U bend Tube is essential in strategically important and
    YUHONG SPECIAL STEEL Start to Produce U Bending Tube Since 2006,Up to now already supply more than
    30000 tons Stainless Steel U Bend Tube to 35 countries.


    The U-Bend Tube Comply With The Following Standards:
    1. ASTM A688/ASME SA688
    2. ASTM A803/ASME SA803
    3. ASTM A556/ASME SA556

    Steel Grade:

    Ferrite Austenite Duplex Super Duplex Ni-Alloys Titanium

    TP410
    TP405
    S44400
    S44660
    TP430

    TP409

    TP409S

    TP304/304L
    TP316/316L
    TP316Ti
    TP317/317L
    TP321
    TP347

    TP347 HFG

    TP347

    S31803
    S32205
    S32304

    S31500

    S31254

    253MA

    S32750
    S32760

    N06600

    N06601

    N06625
    N08020
    N08800

    N08810

    NO8811
    N08825
    N08904

    Gr.2











    Tube Of Other Alloys And Steel Grades Can Be Produced Upon Agreement.


    Technical Requirements:

    Straight Tubes Standard Specification For Bending:
    ASME SA 213; ASME SB 163; ASME A789, ASME SA268, ASME SA269, etc.

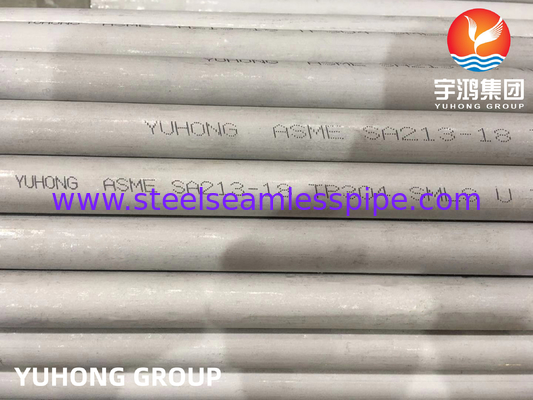

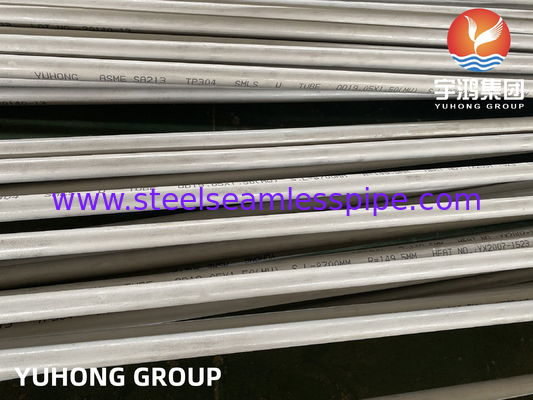

    Marking: Before Bending By Marking Machine All Over The Tube Length (Bent Section After Heat
    Treatment Without Marking)
    Note: Marking is also possible After Bending On The Straight Parts Of U-Bending Tube.

    U-Bend Tubes:
    -TEMA RCB 2.31 Standard Of The Tubular Exchanger Manufacturers Association (9th Edition).
    -ASTM A688/ASME SA688 Standard Specification For Welded Tubes Of Austenitic Corrosion Resistant
    Steel Grade Designed For Feed Water Boilers.
    -ASTM B163/ASME SA163 Standard Techinical Requirements For Tubes Of Nickel And Nickel Alloy For
    Condensers And Heat Exchangers.

    -Customer Specifications.
    Stainless Steel U Bend Tube ASME B163 B677 N8904 / 904L Pickled and Annealed & Plain End

    Bending Radius: From 1.5*OD(Outside Diameter) To 1500mm
    When Ordering Tubes With Radius less or equal to 1.5*OD, It Is Necessary To Agree Precision Of Geometrics.
    Straight Tubes Maximum Length:(Before Bending): 35000 mm.
    Leg Length: Min 1 Meter, Max. 16500 mm (For Max R=1500mm)
    Note: Other Size Are Available Upon Agreement.
    Heat Treatment: Stress Relieved After U-Bending (Bending Area Plus 300MM For Each Leg).
    Hydrostatic Test After U Bending: Maximum Test Pressure 600 Bar, Soaking 10 Sec. With
    Dematerialized Water. Compressed Air Cleaning After Hydro-Test.

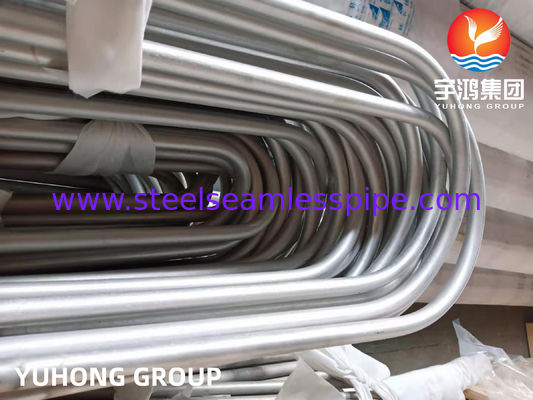

    Packaging: In Strong Transport-Worthy Pre-fumigated wooden boxes of corresponding dimensions for
    each tube Length, Radius, Diameter, According To PO requirements as well as wrapped In polyethylene
    films With soft plastic caps on both end of Tube.

    Some of the quality tests carried out by us includes:

    Corrosion Test Conducted only when specially requested by the client
    Chemical Analysis Test done as per required quality standards
    Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
    Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
    Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
    Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
    Air Under Pressure Test To check any evidence of air leakage
    Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


    Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

    • Eddy Current Testing
    • O.P Testing
    • Radiography Testing
    • Corrosion Testing
    • Micro Testing
    • Macro Testing
    • IGC Testing
    • Ultrasonic testing
    • Liquid Penetrate testing




    Stainless Steel U Bend Tube ASME B163 B677 N8904 / 904L Pickled and Annealed & Plain End
