Yuhong Holding Group Co.,LTD
Place of Origin: | China |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
Model Number: | TP304 / TP304L |
Minimum Order Quantity: | 100 KGS |
---|---|
Price: | Negotiable |
Packaging Details: | According to Client Requirements/ Ply-wooden Case/ Iron Case/ Bundle with plastic Cap |
Delivery Time: | 15-50 Days |
Payment Terms: | T/T, L/C |
Supply Ability: | According to Client Requirements |
Standard: | ASTM A213 / ASME SA213 | Material Grade: | TP304 / TP304L |
---|---|---|---|
Type: | Seamless | Outer Diameter: | 6-630mm |
Thickness: | 0.2-30mm | Technique: | Cold Drawn |
Applications: | Construction,Heat Exchanger,oil And Gas,Industry,boiler | ||
High Light: | heat exchanger pipe,heat recovery pipe |

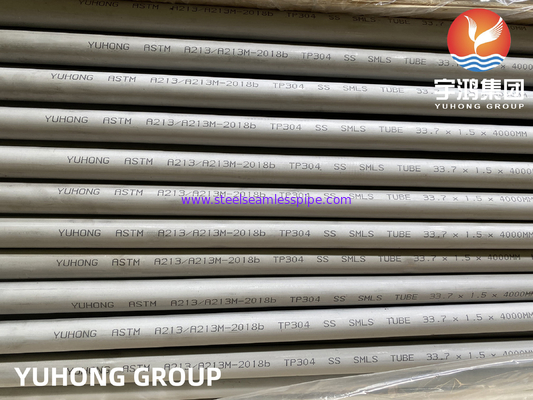

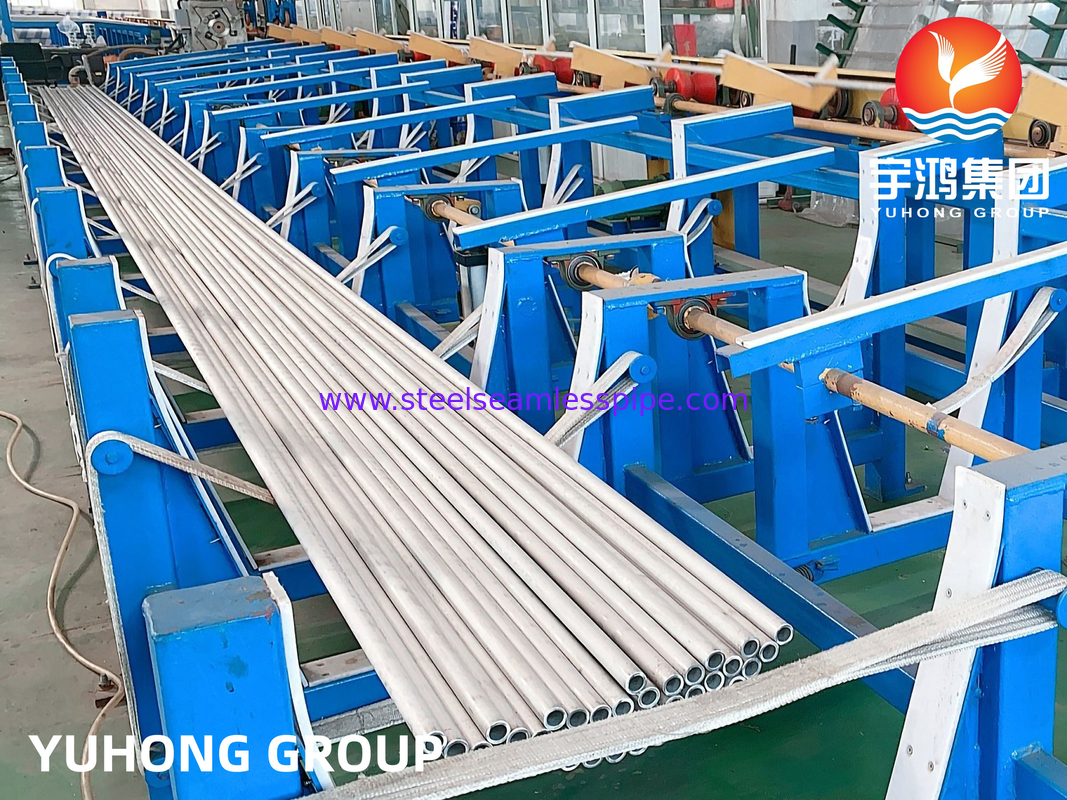

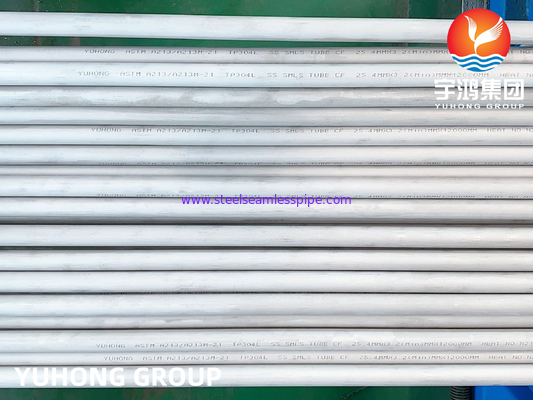

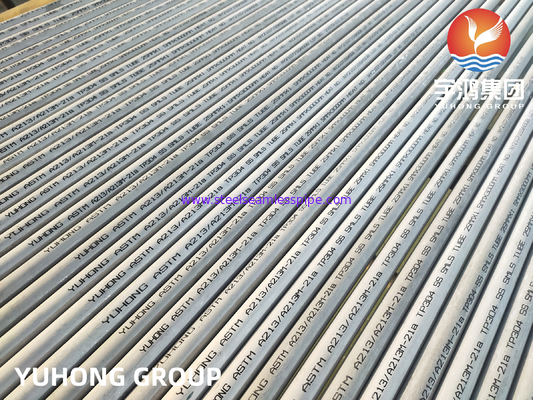

ASTM A213 TP304 TP304L 1.4301 1.4306 UNS S30400 Stainless Steel Seamless Tube
We, YUHONG GROUP, is manufacturer and supplier of ASTM A213 TP304 / TP304L Stainelss Steel Seamless Tubes for 40 years. Our high-quality steel products have been exported to more than 75 countries all over the world. These stainless steel seamless tubes are widely used in applications, like heat exchangers, boilers, oil & gas industry, offshore industry, petrochemical industry, etc..
Chemical Composition:
Element | TP304, % | TP304L, % |
C | ≤0.08 | ≤0.035 |
Mn | ≤2.00 | ≤2.00 |
P | ≤0.045 | ≤0.045 |
S | ≤0.030 | ≤0.030 |
Si | ≤1.00 | ≤1.00 |
Cr | 18.0-20.0 | 18.0-20.0 |
Ni | 8.0-11.0 | 8.0-12.0 |
Tensile & Hardness Requirements:
Mechanical Requirements | TP304 | TP304L |
Tensile Strength, min. MPa [ksi] | 515 [75] | 485 [70] |
Yield Strength, min. MPa [ksi] | 205 [30] | 170 [25] |
Elongation in 2", min. % | 35 | 35 |
Brinell Hardness max. HBW | 192 | 192 |
Vickers Hardness max. HV | 200 | 200 |
Rockwell Hardness max. HRB | 90 | 90 |
Applications:
Chemical Equipment
Petrochemical Industry
Sugar System
Food Process Equipment
Oil and Gas Industry
Condensers
Mechinery Equipment
