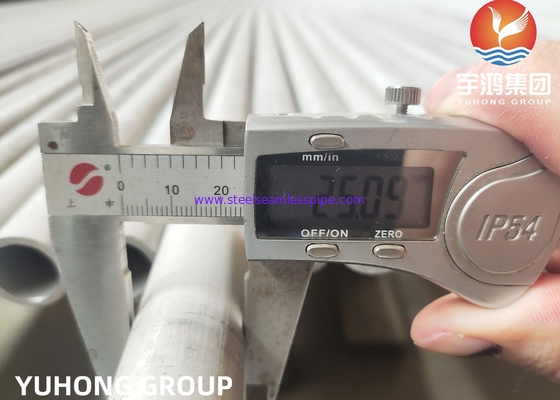

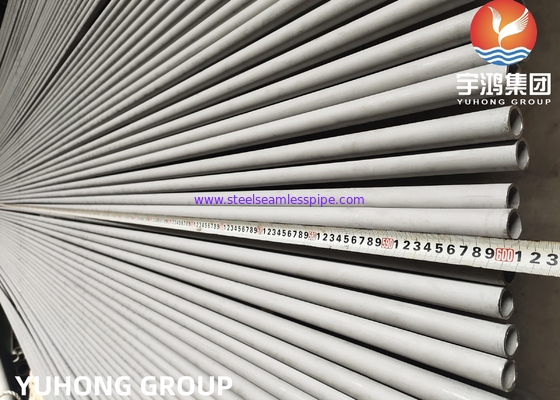

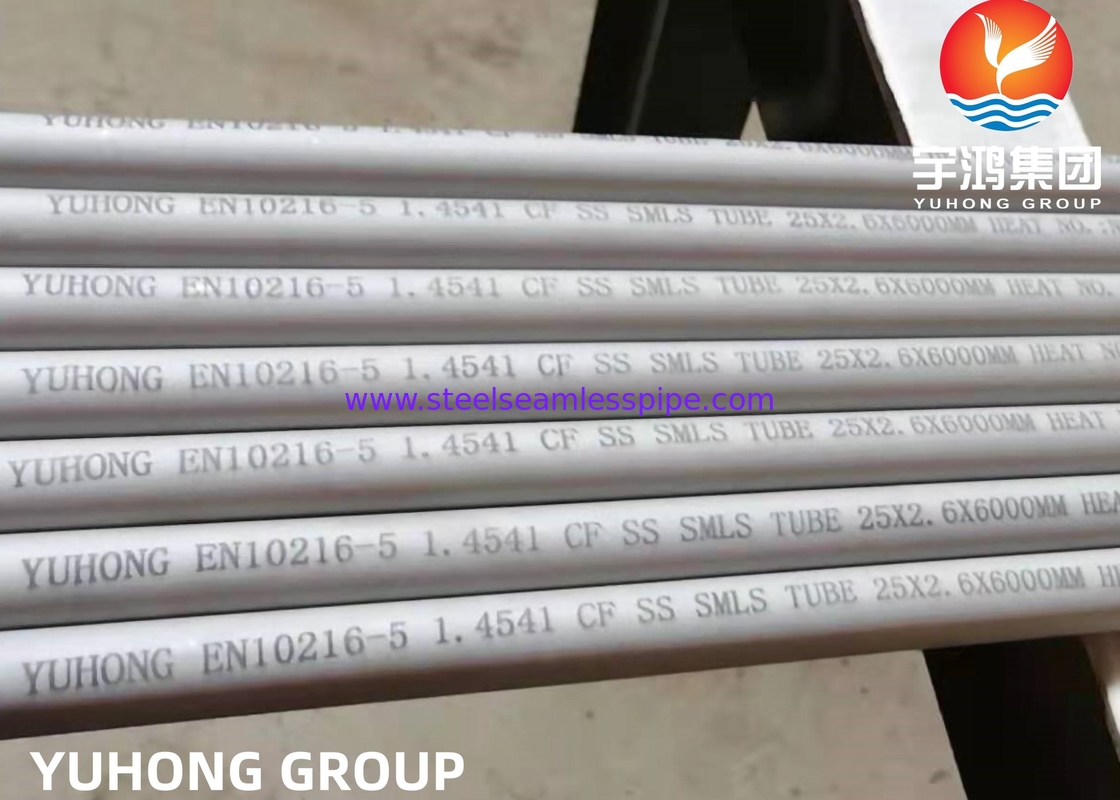

EN10216-5 1.4541 1.4301 1.4307 1.4401 1.4404 Stainless Steel Seamless Tube, Pickled and Solid and Annealed.
Yuhong Group has more than 26 years experience for heat exchanger tube / boiler tube/ cooling tube
Our main products: Stainless/Duplex/Nickel Alloy Pipe/Tube:
1>.
A:Stainless Steel Grade: TP304/304L/304H, TP310S/310H, TP316/316L/316Ti/316H, TP317L/317LN, TP321/321H, TP347/347H, NO8904(904L)
B:PH Stainless Steel:17-4PH(1.4542), 17-7PH(1.4568),15-7PH(1.4532)
C:Duplex Steel Grade: S31803(2205), S32750(2507), S32760, S32304, S32101, S31254(254Mo), 235Ma, UNS NO8926, NO8367.
D:Nickel Alloy Steel Grade;
Hestalloy: C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35.
Monel: 400,401, 404, R-405, K500.
Inconel: 600, 601, 617, 625, 690, 718, 740, X-750.
Incoloy: 800, 800H, 800HT, 825, 840.
Pure Nickel: Ni-200, Ni-201, Ni-270.
NS Alloy: Ns 1101, NS1102, NS1103,NS3105.
2>.Standards: ASTM A213, A249, A269, A312, A789,A790, B163,B167, B444, B677,... and ASME,DIN, EN, JIS, BS, GOST,...
3>.Out diameter sizes range: 0.5mm~650mm. Wall thickness:0.05mm~60mm. Max. length under 26 meters/PC.
4>.Seamless & welded, Solution Pickling/Bright Annealed / Polished.
Advantage Products: (Boiler & Heat Exchanger & Condenser Tube):
ASTM A213(TP304,TP304L,TP304H,TP310S,TP316L,TP316Ti, TP317/L, TP321/H, TP347/H)
ASTM A249(TP304,TP304L,TP316L, TP321/H)
ASTM A789(S31803(2205), 32750(2507), S31254(254MO),S32304)
ASTM B163/B167/B444 for Nickel Alloy Steel Tube
ASTM B677 UNS NO8904(904L)
ASTM B111(70400, C70600, C71500, C71640, C68700, C44300)
Other Standard: EN10216-5, DIN 17456, DIN17458, GOST9941-81, JIS-G3459, JIS-G3463
Grade |
Material
number |
C |
Si |
Mn |
P |
S |
N |
Cr |
Mo |
Ni |
Ti |
others |
Ferritic or martensitic steels |
X2CrTi12 |
1.4512 |
0.030 |
1.00 |
1.00 |
0.040 |
0.015 |
|
10.50to12.50 |
|
|
6×(C+N)to0.65 |
|
X6CrAl13 |
1.4002 |
0.08 |
1.00 |
1.00 |
0.040 |
0.015 |
|
12.00to14.00 |
|
|
|
0.10to0.30Al |
X6Cr17 |
1.4016 |
0.08 |
1.00 |
1.00 |
0.040 |
0.015 |
|
16.00to18.00 |
|
|
|
|
X3CrTi17 |
1.4510 |
0.05 |
1.00 |
1.00 |
0.040 |
0.015 |
|
16.00to18.00 |
|
|
4×(C+N)+0.15 to 0.80 |
|
X12Cr13 |
1.4006 |
0.08 to 0.15 |
1.00 |
1.50 |
0.040 |
0.015 |
|
11.50to13.50 |
|
0.75 |
|
|
Austenitic steels |
X5CrNi18-10 |
1.4301 |
0.07 |
1.00 |
2.00 |
0.045 |
0.015 |
0.11 |
17.00to19.50 |
|
8.00to10.50 |
|
|
X2CrNi19-11 |
1.4306 |
0.030 |
1.00 |
2.00 |
0.045 |
0.015 |
0.11 |
18.00to20.00 |
|
10.00to12.00 |
|
|
X2CrNiN18-10 |
1.4311 |
0.030 |
1.00 |
2.00 |
0.045 |
0.015 |
0.12to0.22 |
17.00to19.50 |
|
8.50to11.50 |
|
|
X6CrNiTi18-10 |
1.4541 |
0.08 |
1.00 |
2.00 |
0.045 |
0.015 |
|
17.00to19.00 |
|
9.00to12.00 |
5×C to 0.70 |
|
X6CrNiNb18-10 |
1.4550 |
0.08 |
1.00 |
2.00 |
0.045 |
0.015 |
|
17.00to19.00 |
|
9.00to12.00 |
|
10×Cto1.00Nb |
X5CrNiMo17-12-2 |
1.4401 |
0.07 |
1.00 |
2.00 |
0.045 |
0.015 |
0.11 |
16.50to18.50 |
2.00to2.50 |
10.00to13.00 |
|
|
X2CrNiMo17-12-2 |
1.4404 |
0.030 |
1.00 |
2.00 |
0.045 |
0.015 |
0.11 |
16.50to18.50 |
2.00to2.50 |
10.00to13.00 |
|
|
X6CrNiMoTi17-12-2 |
1.4571 |
0.08 |
1.00 |
2.00 |
0.045 |
0.015 |
|
16.50to18.50 |
2.00to2.50 |
10.50to13.50 |
5×C to 0.70 |
|
X2CrNiMoN17-13-3 |
1.4429 |
0.030 |
1.00 |
2.00 |
0.045 |
0.015 |
0.12to0.22 |
16.50to18.50 |
2.50to3.00 |
11.00to14.00 |
|
|
X2CrNiMo18-14-3 |
1.4435 |
0.030 |
1.00 |
2.00 |
0.045 |
0.015 |
0.11 |
17.00to19.00 |
2.50to3.00 |
12.50to15.00 |
|
|
X3CrNiMo17-13-3 |
1.4436 |
0.05 |
1.00 |
2.00 |
0.045 |
0.015 |
0.11 |
16.50to18.50 |
2.50to3.00 |
10.50to13.00 |
|
|
X2CrNiMoN17-13-5 |
1.4439 |
0.030 |
1.00 |
2.00 |
0.045 |
0.015 |
0.12to0.22 |
16.50to18.50 |
4.00to5.00 |
12.50to14.50 |
|
|
Specification:
ASME SA213/A213: Standard Specification for Seamless Ferritic and Austenitic Alloy-
Steel Boiler, Superheater and Stainless Steel Heat Exchanger Tubes.
ASTM A249 / A249M:Standard Specification for Welded Austenitic Steel Boiler, SuperheaterHeat-Exchanger, and Condenser Tubes.
Other Standard:DIN 17456 , DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463,...
Material Grade:
American Standard |
Austenitic Steel:
TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…
Duplex Steel :
S32101,S32205,S31803,S32304,S32750, S32760
Others:TP405,TP409, TP410, TP430, TP439,...
|
Europen Standard |
1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
GOST |
08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
Size Range:
Production |
Outside Diameter |
Wall Thickness |
Heat Exchanger Tube |
6.00mm to 101.6mm |
0.5mm to 8mm |
Final Finishing
Solution Annealed & Pickled/Bright Annealed.
Type of Tubes:
U-bend & Straight.
