Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B865 K500/NO5500 Steel Pipe Fittings Round Bar |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 |
| Payment Terms: | L/C, T/T |
| STANDARD: | ASME B865 | MATERIAL: | Ni Cu, Monel K500 Copper Nickel Alloy |
|---|---|---|---|
| SPECIFICATION: | ASTM B865 K500/NO5500 Steel Pipe Fittings Round Bar | TEST: | NDT IBR |
| Shape: | Round | Name: | Stainless Steel Pipe Fittings |
| Application: | Heating Element | Yield Strength:: | 790Mpa |
| Melting Point:: | 1300-1390 | Type: | Nickel Bar |
| High Light: | K500 Round Bar,ASTM B865 Round Bar,ASTM B865 Steel Pipe Fittings |
||

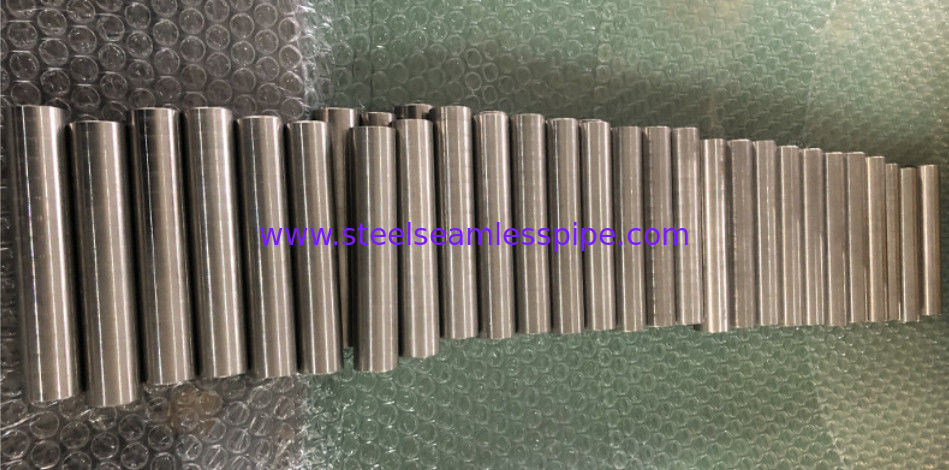

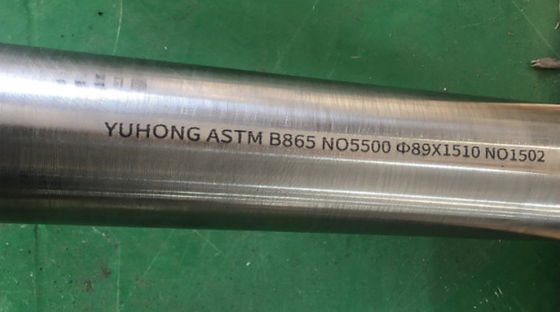

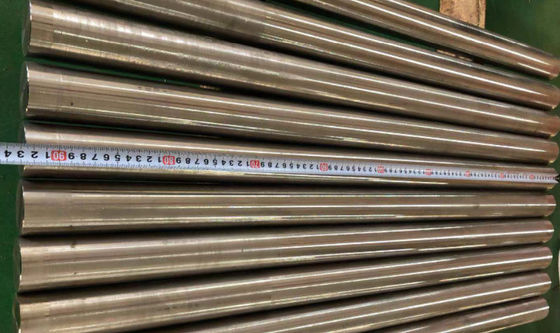

ASTM B865 K500/NO5500 Steel Pipe Fittings Round Bar
We are one of the biggest projects pipeline products supplier in China, Our products contain steel pipe/tube,fittings, flanges. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
Scope:
This specification covers nickel-copper-aluminum alloy (UNS N05500) in the form of rounds, squares, hexagons, or rectangles, and forgings and forging stock, manufactured either by hot working or cold working, and cold-worked wire.
The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to become familiar with all hazards including those identified in the appropriate Material Safety Data Sheet (MSDS) for this product/material as provided by the manufacturer, to establish appropriate safety and health practices, and determine the applicability of regulatory limitations prior to use.
Characteristic
ASTM B865 Bar is a precipitation-hardenable material of copper-nickel and it combines the superb corrosion resistance characteristics possessed by Monel 400, but the big plus with it is that it has greater hardness and strength. As compared to Alloy 400, Monel K500 Round Bar has roughly double the tensile strength and thrice the yield strength. Also, Alloy K500 can be strengthened even more, by cold working, before carrying out precipitation hardening. The welding of Alloy K500 can be done by the process of gas-tungsten-arc welding.
| Chemical Composition : | |
| Monel K500 | |
| Ni | 63.0 min |
| Fe | 0.5 – 2 |
| C | 0.25 max |
| Mn | 1.5 max |
| Si | 0.5 max |
| Cu | 27.0 – 33.0 |
| Al | 2.3 – 3.15 |
| Ti | 0.35 – 0.85 |
| S | 0.010 max |
| Mechanical & Physical Properties – Monel K500 : | |
| Density | 8.44 g/cm3 |
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 160000 , MPa – 1100 |
| Yield Strength (0.2%Offset) | Psi – 115000 , MPa – 790 |
| Elongation | 20% |

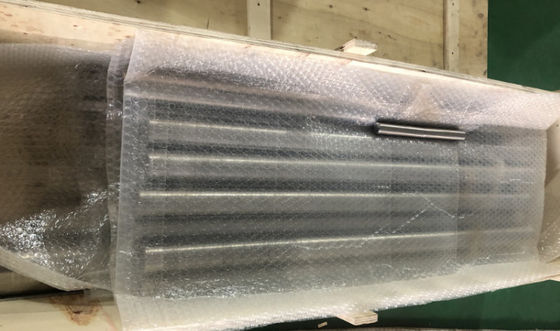

Special Features :
Each bundle covered with plastic for protection against extreme weather.
End of Monel K500 ASTM B865 Round Bar protected by plastic caps.
Bundles strapped with plastic strips.
Each radius of U-Bend tube separated by a separator.
Packaging list (laminated) placed with box/crate.
Applications :
Processing plant for sulphuric, phosphoric and acetic acids.
Pulp and paper processing.
Components in gas scrubbing plants.
Seawater cooling equipment.
Oil refinery components.
Wires in electrostatic precipitators.
