Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | API , ABS, DNV, GL , LR, NK. |
| Model Number: | ASTM B366 UNS N06625 Inconel 625 Nickel Alloy Steel Pipe Fittings |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 |
| Payment Terms: | L/C, T/T |
| Specification: | ASTM B366 UNS N06625 Inconel 625 Nickel Alloy Steel Pipe Fittings | Connection: | Welding |
|---|---|---|---|
| Technics: | Casting | Type: | Elbow,Nipple,Pipe Threaded,Reducer,elbow.tee |
| Color: | Silver | Usage: | Joining Pipe Lines,Oil Gas Water Industrial,oil,gas,Water |
| Packing: | Plywood Case Or Pallet | Name: | Stainless Steel Pipe Fittings. |
| High Light: | ASTM B366 inconel 625 pipe fittings,UNS N06625 inconel 625 pipe fittings,UNS N06625 metal pipe fittings |
||

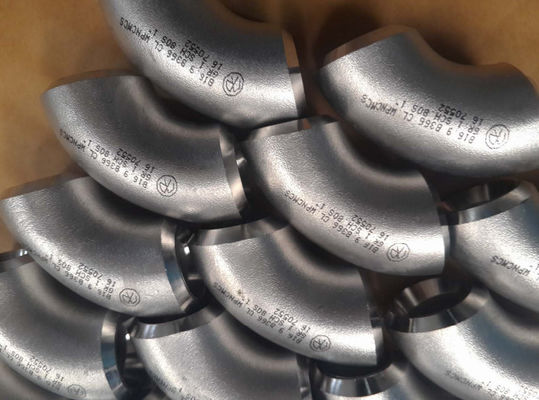

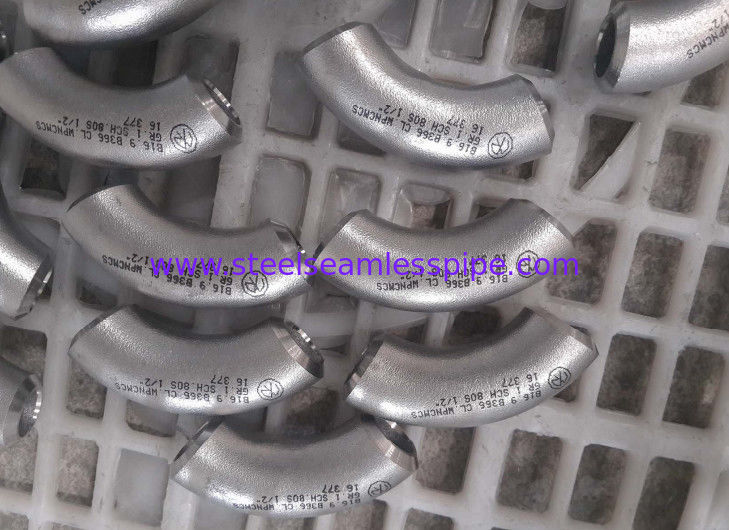

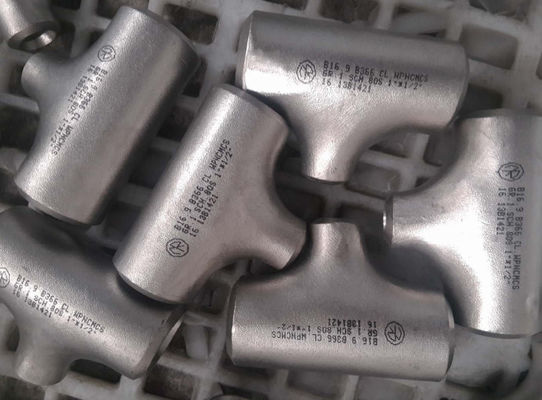

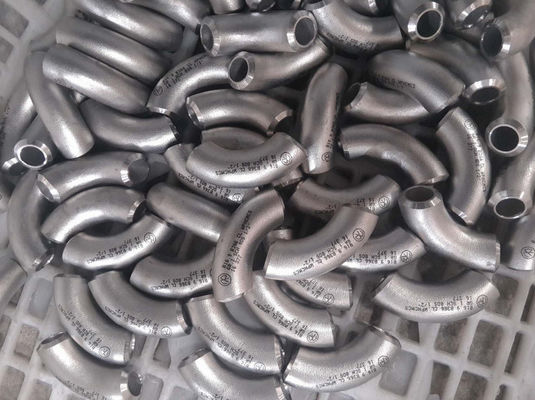

ASTM B366 UNS N06625 Inconel 625 Nickel Alloy Steel Pipe Fittings
We are one of the biggest projects pipeline products supplier in China. Our products contain steel pipe/tube,fittings, flanges. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
Inconel 625 Specification
| Inconel 625 Pipe Fittings Specification | |
| Specifications | ASTM B366, ASME SB366 |
| Inconel 625 Pipe Fittings size | Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48" |
| Inconel 625 Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Inconel 625 Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Inconel 625 Buttweld fittings Types | Seamless / ERW / Welded / Fabricated Pipe Fittings |
| ASTM B366 FittingsType | DN15-DN1200 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Inconel 625 Elbows | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. |
| Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO | |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Inconel 625 Buttweld Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Key markets and industries for Alloy 625 Pipe Fittings | Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend |
| Application | Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc |
| Schedule 10 fittings are an economical alternative for lower-pressure applications. | |
| Schedule 40 fittings have a thicker wall for higher-pressure applications. | |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Product Features:
Inconel 625 Chemical Composition
| Alloy | % | Ni | Cr | Mo | Nb+N | Fe | Al | Ti | C | Mn | Si | Cu | P | S |
| 625 | Min. | 58 | 20 | 8 | 3.15 | |||||||||
| Max. | 23 | 10 | 4.15 | 5 | 0.4 | 0.4 | 0.1 | 0.5 | 0.5 | 0.5 | 0.015 | 0.015 |
Inconel 625 Physical Properteis
| Density | 8.4 g/cm³ |
| Melting point | 1290-1350℃ |
Inconel 625 Equivalent Grades
| Equivalent Grades for Inconel 625 Fittings | |||||||
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NC22DNB4M |
Application :
