Yuhong Holding Group Co.,LTD
Place of Origin: | CHINA |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | TP316 , TP316L , TP316H, TP316Ti , TP316LN |
Minimum Order Quantity: | 500kgs |
---|---|
Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
Delivery Time: | 7days |
Payment Terms: | L/C, T/T |
Product Name: | Stainless Steel Seamless Tube | Standard: | ASTM A213, ASME SA213 , EN 10216-5 , GOST 9941-81 , JIS G 3459 |
---|---|---|---|
Material Grade: | TP316 , TP316L , TP316H, TP316Ti , TP316LN , SUS316, SUS316L , 1.4404 | OD: | 6.35mm, 7.92mm, 9.53mm, 12.7mm, 15.88mm , 19.05mm , 22.23mm, 25.4mm, 31.75mm , 38.1mm , 44.45mm , 50.8mm, 57.15mm , 63.5mm, 76.2mm, 88.9mm, 101.6mm |
WT: | 10 Bwg (3.4mm ), 12 Bwg (2.77mm), 13 Bwg (2.413mm), 14 Bwg (2.11mm), 16 Bwg (1.65mm) 18 Bwg (1.24mm) 20 Bwg(0.89mm) | Length: | Single Random, Double Random & Cut Length |
Type: | Seamless | Certificate: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
NDT: | Eddy Current Test ( ASTM E426), Ultrasonic Test (ASTM E213 ), Hydrostatic Test ( ASTM A1016) , Penetration Test(ASTM E165) | Application: | Boiler, Heat Exchanger, Chemical Processing, Oil And Gas, And Power Generation |
High Light: | TP316L SS Seamless Heat Exchanger Tubes,ASME Seamless Heat Exchanger Tubes,SA213 TP316L SS Seamless Tube |

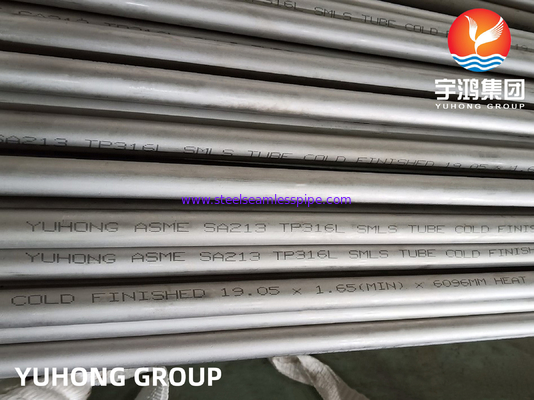

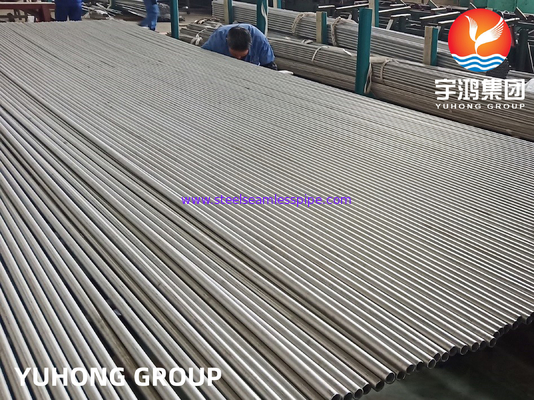

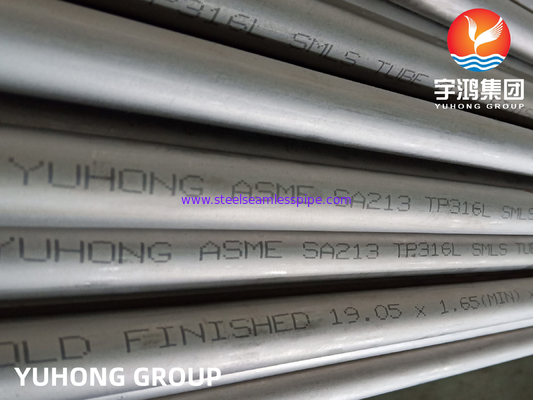

ASME SA213 TP316L Stainless Steel Seamless Tube For Boiler and Heat Exchange Application
SA213 TP316L tube is a type of seamless stainless steel tube that conforms to the specifications of ASME SA213 and ASTM A213. It is made from a low-carbon version of 316 stainless steel, which contains molybdenum, making it more resistant to corrosion and pitting than other types of stainless steel. SA213 TP316L tube is commonly used in various industrial applications that require high resistance to corrosion and high-temperature environments, such as chemical processing, oil and gas, and power generation. It is also used in the food and beverage industry and pharmaceutical industry where cleanliness and hygiene are critical.
Stainless Steel Seamless Tube Chemical Composition
MATERIAL
|
C | MN | SI | P | S | CR | MO | NI | N | |
SA213 TP 316L Tube | Min | - | - | - | - | - | 16 | 2 | 10 | - |
Max | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | 0.1 | |
SA213 TP 316H Tube | Min | 0.04 | 0.04 | 0 | - | - | 16 | 2 | 10 | - |
max | 0.1 | 0.1 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | - |
Stainless Steel Seamless Tube Mechanical Properties:
GRADE
|
TENSILE STRESS | YIELD STR | ELONG |
HARDNESS |
|
(MPA) MIN | 0.2% PROOF | (% IN 50MM) MIN | |||
(MPA) MIN | ROCKWELL B (HR B) MAX | BRINELL (HB) MAX | |||
SS 316L Tube | 485 | 170 | 40 | 95 | 217 |
SS 316H Tube | 515 | 205 | 40 | 95 |
Stainless Steel Seamless Tube Pressure Rating
OD inches
|
Ave. Wall inches | Min Yield Strength (PSI) | Min Tensile Strength (PSI) | Theoretical Burst Pressure * (PSI) | Working Pressure (PSI) 25% of Burst | Theoretical Yield Point ** (PSI) | Collapse Pressure *** (PSI) |
0.25 | 0.02 | 30,000 | 75,000 | 14,286 | 3,571 | 5,714 | 4,416 |
0.25 | 0.028 | 30,000 | 75,000 | 21,649 | 5,412 | 8,660 | 5,967 |
0.25 | 0.035 | 30,000 | 75,000 | 29,167 | 7,292 | 11,667 | 7,224 |
0.25 | 0.049 | 30,000 | 75,000 | 48,355 | 12,089 | 19,342 | 9,455 |
0.25 | 0.065 | 30,000 | 75,000 | 81,250 | 20,313 | 32,500 | 11,544 |
0.375 | 0.02 | 30,000 | 75,000 | 8,955 | 2,239 | 3,582 | 3,029 |
0.375 | 0.028 | 30,000 | 75,000 | 13,166 | 3,292 | 5,266 | 4,145 |
0.375 | 0.035 | 30,000 | 75,000 | 17,213 | 4,303 | 6,885 | 5,077 |
0.375 | 0.049 | 30,000 | 75,000 | 26,534 | 6,634 | 10,614 | 6,816 |
0.375 | 0.065 | 30,000 | 75,000 | 39,796 | 9,949 | 15,918 | 8,597 |
0.5 | 0.02 | 30,000 | 75,000 | 6,522 | 1,630 | 2,609 | 2,316L |
0.5 | 0.028 | 30,000 | 75,000 | 9,459 | 2,365 | 3,784 | 3,172 |
0.5 | 0.035 | 30,000 | 75,000 | 12,209 | 3,052 | 4,884 | 3,906 |
0.5 | 0.049 | 30,000 | 75,000 | 18,284 | 4,571 | 7,313 | 5,316L |
0.5 | 0.065 | 30,000 | 75,000 | 26,351 | 6,588 | 10,541 | 6,786 |
0.5 | 0.083 | 30,000 | 75,000 | 37,275 | 9,319 | 14,910 | 8,307 |
0.625 | 0.02 | 30,000 | 75,000 | 5,128 | 1,282 | 2,051 | 1,859 |
0.625 | 0.028 | 30,000 | 75,000 | 7,381 | 1,845 | 2,953 | 2,568 |
0.625 | 0.035 | 30,000 | 75,000 | 9,459 | 2,365 | 3,784 | 3,172 |
0.625 | 0.049 | 30,000 | 75,000 | 13,947 | 3,487 | 5,579 | 4,335 |
0.625 | 0.065 | 30,000 | 75,000 | 19,697 | 4,924 | 7,879 | 5,591 |
0.625 | 0.083 | 30,000 | 75,000 | 27,124 | 6,781 | 10,850 | 6,910 |
0.625 | 0.095 | 30,000 | 75,000 | 32,759 | 8,190 | 13,103 | 7,734 |
0.625 | 0.109 | 30,000 | 75,000 | 40,172 | 10,043 | 16,069 | 8,639 |
0.75 | 0.028 | 30,000 | 75,000 | 6,052 | 1,513 | 2,421 | 2,156 |
0.75 | 0.035 | 30,000 | 75,000 | 7,721 | 1,930 | 3,088 | 2,669 |
0.75 | 0.049 | 30,000 | 75,000 | 11,273 | 2,818 | 4,509 | 3,664 |
0.75 | 0.065 | 30,000 | 75,000 | 15,726 | 3,931 | 6,290 | 4,749 |
0.75 | 0.083 | 30,000 | 75,000 | 21,318 | 5,330 | 8,527 | 5,905 |
0.75 | 0.095 | 30,000 | 75,000 | 25,446 | 6,362 | 10,179 | 6,637 |
0.75 | 0.109 | 30,000 | 75,000 | 30,733 | 7,683 | 12,293 | 7,453 |
0.75 | 0.12 | 30,000 | 75,000 | 35,294 | 8,824 | 14,118 | 8,064 |
0.875 | 0.02 | 30,000 | 75,000 | 3,593 | 898 | 1,437 | 1,340 |
0.875 | 0.028 | 30,000 | 75,000 | 5,128 | 1,282 | 2,051 | 1,859 |
0.875 | 0.035 | 30,000 | 75,000 | 6,522 | 1,630 | 2,609 | 2,316L |
0.875 | 0.049 | 30,000 | 75,000 | 9,459 | 2,365 | 3,784 | 3,172 |
0.875 | 0.065 | 30,000 | 75,000 | 13,087 | 3,272 | 5,235 | 4,126 |
0.875 | 0.083 | 30,000 | 75,000 | 17,560 | 4,390 | 7,024 | 5,152 |
0.875 | 0.095 | 30,000 | 75,000 | 20,803 | 5,201 | 8,321 | 5,807 |
0.875 | 0.109 | 30,000 | 75,000 | 24,886 | 6,221 | 9,954 | 6,543 |
0.875 | 0.12 | 30,000 | 75,000 | 28,346 | 7,087 | 11,339 | 7,100 |
1 | 0.028 | 30,000 | 75,000 | 4,449 | 1,112 | 1,780 | 1,633 |
1 | 0.035 | 30,000 | 75,000 | 5,645 | 1,411 | 2,258 | 2,027 |
1 | 0.049 | 30,000 | 75,000 | 8,149 | 2,037 | 3,259 | 2,796 |
1 | 0.065 | 30,000 | 75,000 | 11,207 | 2,802 | 4,483 | 3,647 |
1 | 0.083 | 30,000 | 75,000 | 14,928 | 3,732 | 5,971 | 4,567 |
1 | 0.095 | 30,000 | 75,000 | 17,593 | 4,398 | 7,037 | 5,159 |
1 | 0.109 | 30,000 | 75,000 | 20,908 | 5,227 | 8,363 | 5,827 |
1 | 0.12 | 30,000 | 75,000 | 23,684 | 5,921 | 9,474 | 6,336 |
1 | 0.134 | 30,000 | 75,000 | 27,459 | 6,865 | 10,984 | 6,963 |
1.25 | 0.035 | 30,000 | 75,000 | 4,449 | 1,112 | 1,780 | 1,633 |
1.25 | 0.049 | 30,000 | 75,000 | 6,380 | 1,595 | 2,552 | 2,260 |
1.25 | 0.065 | 30,000 | 75,000 | 8,705 | 2,176 | 3,482 | 2,958 |
1.25 | 0.083 | 30,000 | 75,000 | 11,485 | 2,871 | 4,594 | 3,719 |
1.25 | 0.095 | 30,000 | 75,000 | 13,443 | 3,361 | 5,377 | 4,213 |
1.25 | 0.109 | 30,000 | 75,000 | 15,843 | 3,961 | 6,337 | 4,776 |
1.25 | 0.12 | 30,000 | 75,000 | 17,822 | 4,455 | 7,129 | 5,207 |
1.25 | 0.134 | 30,000 | 75,000 | 20,468 | 5,117 | 8,187 | 5,742 |
1.5 | 0.035 | 30,000 | 75,000 | 3,671 | 918 | 1,469 | 1,367 |
1.5 | 0.049 | 30,000 | 75,000 | 5,243 | 1,311 | 2,097 | 1,896 |
1.5 | 0.065 | 30,000 | 75,000 | 7,117 | 1,779 | 2,847 | 2,487 |
1.5 | 0.083 | 30,000 | 75,000 | 9,333 | 2,333 | 3,733 | 3,136 |
1.5 | 0.095 | 30,000 | 75,000 | 10,878 | 2,719 | 4,351 | 3,559 |
1.5 | 0.109 | 30,000 | 75,000 | 12,754 | 3,188 | 5,101 | 4,043 |
1.5 | 0.12 | 30,000 | 75,000 | 14,286 | 3,571 | 5,714 | 4,416 |
1.5 | 0.134 | 30,000 | 75,000 | 16,315 | 4,079 | 6,526 | 4,881 |
1.5 | 0.148 | 30,000 | 75,000 | 18,439 | 4,610 | 7,375 | 5,336 |
1.75 | 0.035 | 30,000 | 75,000 | 3,125 | 781 | 1,250 | 1,176 |
1.75 | 0.049 | 30,000 | 75,000 | 3,864 | 966 | 1,546 | 1,434 |
1.75 | 0.065 | 30,000 | 75,000 | 6,019 | 1,505 | 2,407 | 2,146 |
1.75 | 0.083 | 30,000 | 75,000 | 7,860 | 1,965 | 3,144 | 2,711 |
1.75 | 0.095 | 30,000 | 75,000 | 9,135 | 2,284 | 3,654 | 3,080 |
1.75 | 0.109 | 30,000 | 75,000 | 10,672 | 2,668 | 4,213 | 3,504 |
1.75 | 0.12 | 30,000 | 75,000 | 11,921 | 2,980 | 4,768 | 3,832 |
1.75 | 0.134 | 30,000 | 75,000 | 13,563 | 3,391 | 5,425 | 4,242 |
1.75 | 0.148 | 30,000 | 75,000 | 15,268 | 3,817 | 6,107 | 4,645 |
1.75 | 0.165 | 30,000 | 75,000 | 17,430 | 4,357 | 6,972 | 5,124 |
2 | 0.035 | 30,000 | 75,000 | 2,720 | 680 | 1,088 | 1,032 |
2 | 0.049 | 30,000 | 75,000 | 3,864 | 966 | 1,546 | 1,434 |
2 | 0.065 | 30,000 | 75,000 | 5,214 | 1,303 | 2,086 | 1,887 |
2 | 0.083 | 30,000 | 75,000 | 6,788 | 1,697 | 2,715 | 2,387 |
2 | 0.095 | 30,000 | 75,000 | 7,873 | 1,968 | 3,149 | 2,715 |
2 | 0.109 | 30,000 | 75,000 | 9,175 | 2,294 | 3,670 | 3,092 |
2 | 0.12 | 30,000 | 75,000 | 10,227 | 2,557 | 4,091 | 3,384 |
2 | 0.134 | 30,000 | 75,000 | 11,605 | 2,901 | 4,642 | 3,751 |
2 | 0.148 | 30,000 | 75,000 | 13,028 | 3,257 | 5,211 | 4,111 |
2 | 0.165 | 30,000 | 75,000 | 14,820 | 3,705 | 5,928 | 4,542 |
