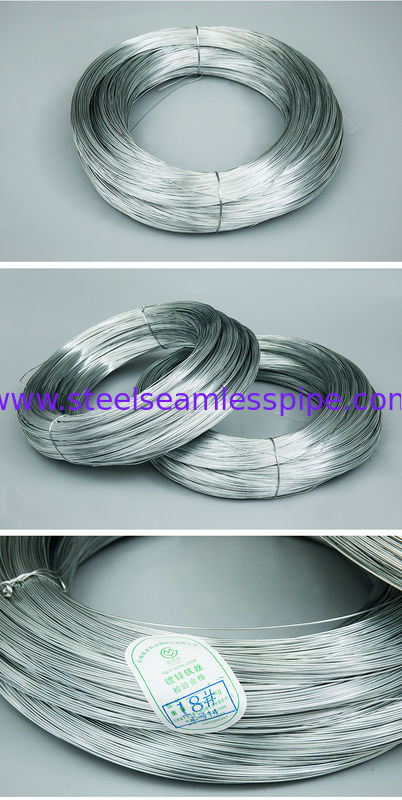

Topone AISI 316 EN 1.4401 SUS316 Stainless Steel Nail Wire
Description:
1) Grade: 201,202,301,304,304L,310S,316,316L,410,420,430,etc.
2) Standard: ASTM, DIN, GB, JIS, SUS
3) Dimension:0.25mm-15mm
4) Finish: Black/Bright/Pickled/Polished
5) Length: Unlimited or as customer requirements
6) Condition: Hot Rolled & Pickled, Hot Rolled Black Bar,Cold Drawn
7) Packing: Nylon bag or according to client's requirement
Mechanical properties
| TENSILE STRENGTH(MPA) | ELONGATION(%) | ||
| | | FOR SOFT-ANNEALED WIRE ONLY | |
| 0.20~0.30 | 640~980 | _ | _ | ≥20 |
| 0.30~0.60 | 590~930 | _ | _ | ≥20 |
| 0.60~1.00 | 540~880 | 830~1180 | 1180~1520 | ≥25 |
| 1.00~3.00 | 490~830 | 780~1130 | 1130~1470 | ≥25 |
| 3.00~6.00 | 490~830 | 730~1080 | 1080~1420 | ≥30 |
| 6.00~14.00 | 490~790 | 730~1030 | _ | ≥30 |
Physical Properties
| Diameter Tolerance & Oval Tolerance | Mechanical Properties | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
Chemical Composition
| AISI Grade | Chemical Composition(%) | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| 304 | =<0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304H | >0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | =<0.045 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
| 430 | =<0.12 | =<0.75 | =<1.00 | =<0.040 | =<0.030 | =<0.60 | 16.00~18.00 | - |
| 430A | =<0.06 | =<0.50 | =<0.50 | =<0.030 | =<0.50 | =<0.25 | 14.00~17.00 | - |
How to Enquiry Topone Stainless Steel Forming Wire in Efficiency
In order to quote you asap with right material in good price,we need you quote us with 10 details below .If you only know parts of them or only the wire application, you can talk with us online for help:
|
