Yuhong Holding Group Co.,LTD
Place of Origin: | China |
Brand Name: | atlas |
Certification: | ISO9001:2015 |
Model Number: | 0.2-15mm |
Minimum Order Quantity: | 500KG |
---|---|
Packaging Details: | coil or spool with plate. |
Delivery Time: | 1-15 days |
Payment Terms: | D/P, Western Union, L/C, T/T |
Supply Ability: | >500 Tons Per Month | Material: | 316 |
---|---|---|---|
Diameter: | 0.2-15mm | Packing: | By Customer Request |
Standard: | JIS G. EN. ASTM. DIN. GB Etc | Surface: | Bright |
High Light: | nail making wire,raw material for wire nail |

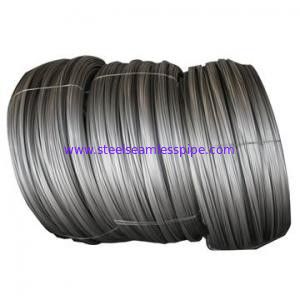

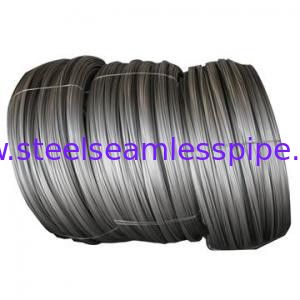

304 Stainless Steel Nail Wire for construction / industrials use
We are a coveted business organization engaged in catering to the variegated requirements of the customers by bringing forth durable Stainless Steel Nail Wire. These wires are demanded extensively by our clients across the country owing to their tempting characteristics. Customized as per the variegated demands of customers, these wires are available at industry leading prices. We also fabricate and design our products using optimum-grade raw material earned certified source.
Features:
Super-fine stranded wire
Flame tested
Maximum flexibility
Specifications:
Mechanical properties
| TENSILE STRENGTH(MPA) | ELONGATION(%) | ||
| | | FOR SOFT-ANNEALED WIRE ONLY | |
0.20~0.30 | 640~980 | _ | _ | ≥20 |
0.30~0.60 | 590~930 | _ | _ | ≥20 |
0.60~1.00 | 540~880 | 830~1180 | 1180~1520 | ≥25 |
1.00~3.00 | 490~830 | 780~1130 | 1130~1470 | ≥25 |
3.00~6.00 | 490~830 | 730~1080 | 1080~1420 | ≥30 |
6.00~14.00 | 490~790 | 730~1030 | _ | ≥30 |
Physical Properties
Diameter Tolerance & Oval Tolerance | Mechanical Properties | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
Chemical Composition
AISI Grade | Chemical Composition(%) | |||||||
C | Si | Mn | P | S | Ni | Cr | Mo | |
304 | =<0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
304H | >0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
304L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 9.00~13.50 | 18.00~20.00 | - |
316 | =<0.045 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
316L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
430 | =<0.12 | =<0.75 | =<1.00 | =<0.040 | =<0.030 | =<0.60 | 16.00~18.00 | - |
430A | =<0.06 | =<0.50 | =<0.50 | =<0.030 | =<0.50 | =<0.25 | 14.00~17.00 | - |
How to Enquiry Topone Stainless Steel Forming Wire in Efficiency
In order to quote you asap with right material in good price,we need you quote us with 10 details below .If you only know parts of them or only the wire application, you can talk with us online for help:
|
Contact Person: Mr. Jikin Cai
Tel: +86-13819835483
Fax: 0086-574-88017980
