Yuhong Holding Group Co.,LTD
Place of Origin: | China |
Brand Name: | ATLAS |
Certification: | ISO9001:2015 |
Model Number: | SUS304/AISI304 |
Minimum Order Quantity: | 500KG |
---|---|
Packaging Details: | coil or spool with plate. |
Delivery Time: | 1-15 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | >500 Tons Per Month | Material: | SUS304 AISI 304 |
---|---|---|---|
Surface: | Soap Coated/Bright | Coil Inner Diameter: | 250-1000mm |
Standard: | JIS G. EN ASTM. DIN. GB Etc | Packing: | Coil Or Spool |
High Light: | flat metal wire,ss flat wire |

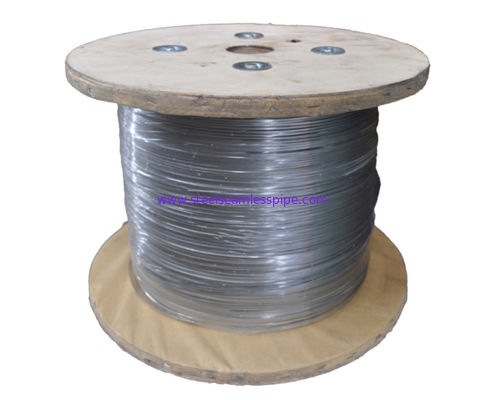

304 Stainless Steel Flat Wire with iso 9001 certificate
Stainless steel flat wire
Thickness is about 0.2-4mm,
Width is 0.4-12mm, different specifications can be ordered .
Common types:
2.5 x 0.50mm
2.5 x 0.60mm
2.5 x 0.70mm
304 (2.15*0.75mm)
316 (2.0*0.8mm)
316L (1.95*0.75mm)
201 (1.35*0.65mm)
430 (1.15*0.55mm)
Application: mainly used to bind the carbon, box;making clean ball,pruduce conveyor belt,etc.
Feature:The product with good surface smoothness and stong corrosion resistancefeatures,the surface looks bright and beautiful.
DIAMETER(MM) | TENSILE STRENGTH(MPA) | ELONGATION(%) | ||
SOFT-ANNEALED |
SEMI-HARD |
HARD |
FOR SOFT-ANNEALED WIRE ONLY | |
0.20~0.30 | 640~980 | _ | _ | ≥20 |
0.30~0.60 | 590~930 | _ | _ | ≥20 |
0.60~1.00 | 540~880 | 830~1180 | 1180~1520 | ≥25 |
1.00~3.00 | 490~830 | 780~1130 | 1130~1470 | ≥25 |
3.00~6.00 | 490~830 | 730~1080 | 1080~1420 | ≥30 |
6.00~14.00 | 490~790 | 730~1030 | _ | ≥30 |
