Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | ATLAS |
| Certification: | ISO9001:2015 |
| Model Number: | 304 |
| Minimum Order Quantity: | 500KG |
|---|---|
| Packaging Details: | coil or spool with plate. |
| Delivery Time: | 1-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | >500 Tons Per Month | Material: | 304 |
|---|---|---|---|
| Surface: | Soap Coated/Bright | Coil Inner Diameter: | 250-1000mm |
| Standard: | JIS G. EN ASTM. DIN. GB Etc | Packing: | Coil Or Spool |
| High Light: | flat metal wire,flat spring steel wire |
||

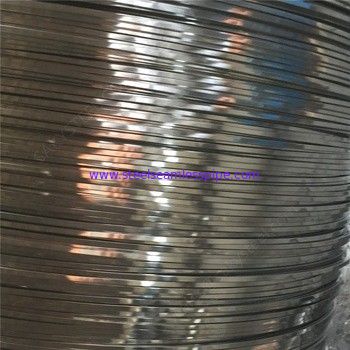

2mm stainless steel flat wire sus 304 stainless steel wire
| 1.Standard | ASTM/JIS/GB |
| 2.Grade | 201 430 304,316 etc |
| 3.Size Range | 0.8x3.8,1x6,2x8,1.45x7.88,2x7,as the customer's request. |
| 4.Craft: | Cold Drawn and Annealed |
| 5.Surface and Finishing: | bright smooth surface. |
| 6.Applications | Sakysteel's stainless steel profile wire used for Household electrical appliances, metal products, precision electronic. |
Common types:
2.5 x 0.50mm
2.5 x 0.60mm
2.5 x 0.70mm
304 (2.15*0.75mm)
316 (2.0*0.8mm)
316L (1.95*0.75mm)
201 (1.35*0.65mm)
430 (1.15*0.55mm)
Application: mainly used to bind the carbon, box;making clean ball,pruduce conveyor belt,etc.
Feature:The product with good surface smoothness and stong corrosion resistancefeatures,the surface looks bright and beautiful.
| DIAMETER(MM) | TENSILE STRENGTH(MPA) | ELONGATION(%) | ||
|
SOFT-ANNEALED |
SEMI-HARD |
HARD |
FOR SOFT-ANNEALED WIRE ONLY | |
| 0.20~0.30 | 640~980 | _ | _ | ≥20 |
| 0.30~0.60 | 590~930 | _ | _ | ≥20 |
| 0.60~1.00 | 540~880 | 830~1180 | 1180~1520 | ≥25 |
| 1.00~3.00 | 490~830 | 780~1130 | 1130~1470 | ≥25 |
| 3.00~6.00 | 490~830 | 730~1080 | 1080~1420 | ≥30 |
| 6.00~14.00 | 490~790 | 730~1030 | _ | ≥30 |
304 Stainless steel flat wire feature
1) Excellent linearity and helix for automatic coiling
2) Uniform and perfect surface
3) Excellent coil-forming ability
4) High elasticity and high fatigue-resistance
5) Strong heat-resistance against exposure to the toughest environment
Quality Assurance:
1. Every material will be inspected at least three times, which are raw material, wire rod and final wire.
2. Every material will be inspected by both machine and manual work.
3. Each coil of wire will be inspected of the surface defects before packing.
4. If the material is not in conformity to the order, we will refund 100% payment.
From a friendly greeting to an on-time delivery, our support staff and warehouse operators are dedicated to providing the highest level of service to our customers.
Contact Person: Mr. Jikin Cai
Tel: +86-13819835483
Fax: 0086-574-88017980
