Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, LR, GL, DNV, NK, TS, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | TP316L,TP304, TP304L , TP304H, TP309, TP310S, TP310H, TP316, TP316L, TP316Ti，TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, TP904L |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10days-> |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 tons per month |
| Standard: | ASTM A269 ASME SA269 , | Size: | 6.35mm (1/4"), 9.52mm (3/8"), 12.7mm(1/2"), 15.88mm (5/8"), 19.05mm(3/4"), 25.4mm (1"), 31.75mm(1-1/4"), 38.1mm (1-1/2"), 44.45mm(1-3/4"), 50.8mm(2"), 63.5mm(2-1/2"), 76.2mm(3"), 101.6mm (4") |
|---|---|---|---|
| Type: | Straight & U Bend & Coil | Surface: | Bright Annealed (BA), Pickled And Annlealed , Polished |
| NDT: | ET, HT, PT | TPI: | BV, SGS, LR, ABS, DNV, GL , MOODY, IBR, APS, V-TRUST,CCIC |
| Packing: | Ply- Wooden Case | ||
| High Light: | ASTM A269 SS SMLS Tube,Bright Annealing SS SMLS Tube,ASME SA269 Stainless Steel Welded Tube |
||

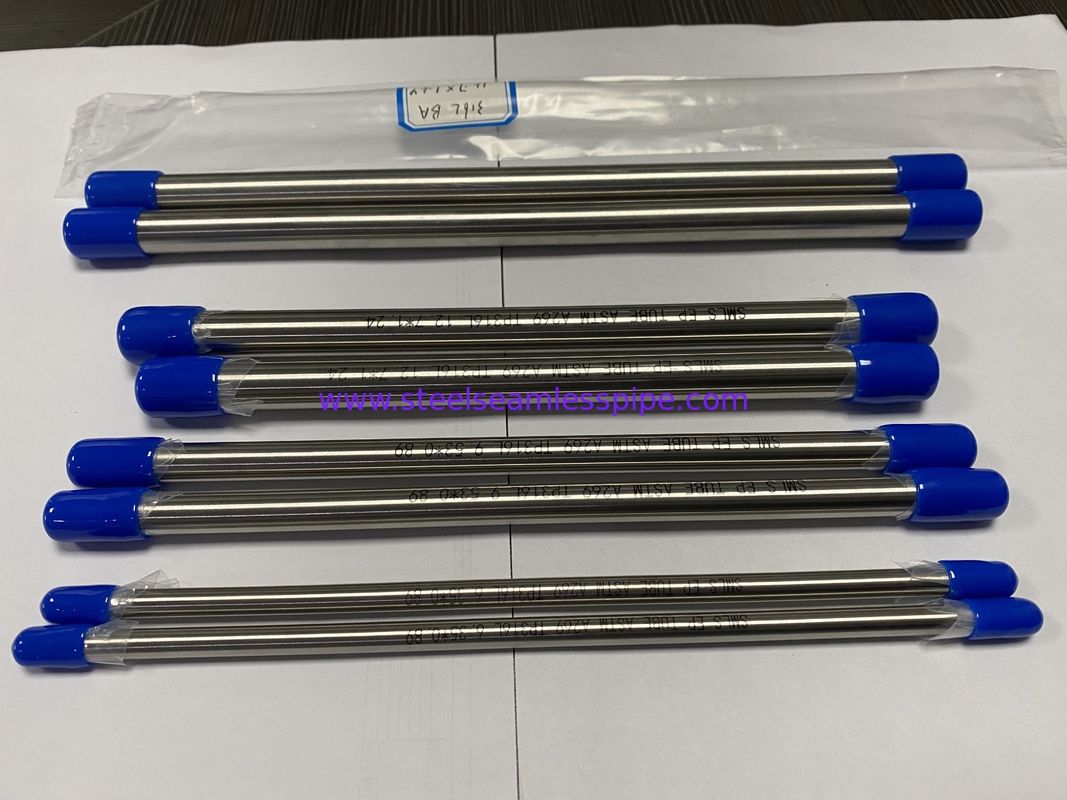

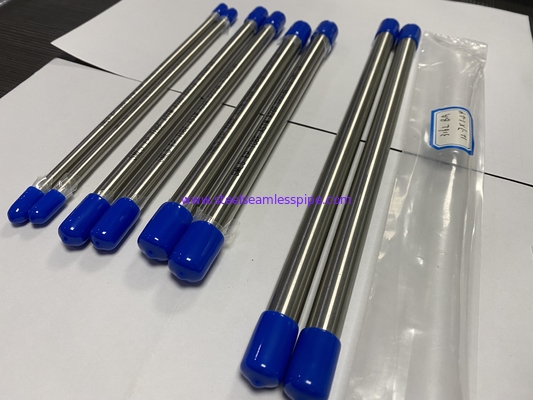

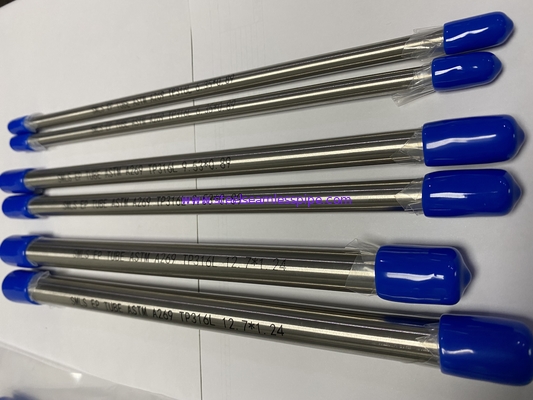

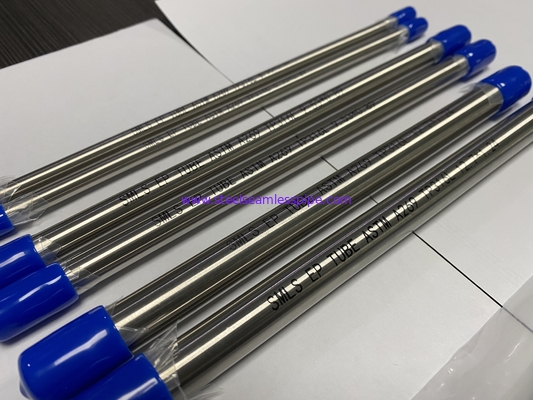

BA TUBES Bright Annealing Tubing, ASTM A269/ASME SA269 TP316L Stainless SMLS Tube 12.7x1.24 For Heat Exchanger
1) BA Tube Description:
Bright Annealed Tubes | BA Tube | Bright Annealed Stainless Steel Tubes | Bright Annealed Stainless Steel Tubing
2) BA Tube Specification:
ASTM A213 / A269 / A632
DIN 17458 / ISO 1127
3) BA Tube Reference Sizes:
6.35×0.89, 9.53×0.89, 12.7×1.24, 19.05×1.65, 25.4×2.11, 3/8, 5/8, 1/2, 3/4, 1, 11/4, 11/2, 2
Special sizes can be made to order.
BA Tube Main Testing Terms and Procedure:
1. Heat Treatment and Solution Annealing / Bright Annealing
2. Cutting to required length and deburring,
3. Chemical Composition Analysis Test With 100% PMI and One tube from each heat by Direct Reading Spectrometer
4. Visual Test and Endoscope Test for Surface Quality Test
5. 100% Hydrostatic Test and 100% Eddy Current Test
6. Ultrasonic Test subject to the MPS (Material Purchase Specification)
7. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test
8. Impact Test subject to Standard request
9. Grain Size Test and Intergranular Corrosion Test
10. Ultrasoic measuring of Wall Thickness
Material Grade:
|
American Standard |
Austenitic Steel: TP304, TP304L, TP304H, TP304N, TP310S, TP316, TP316L, TP316Ti, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, 904L… Duplex Steel : S31803, S32101, S32205, S32304, S32750, S32760 Others: TP405, TP409, TP410, TP430, TP439,... |
|
Europen Standard |
1.4162, 1.4301, 1.4307,1.4362, 1.4401, 1.4404, 1.4410, 1.4438, 1.4462, 1.4501, 1.4539, 1.4541, 1.4550, 1.4571, 1.4841, 1.4845,1.4878, 1.4948, |
|
Gost Standard |
08Х17Т, 08Х13, 12Х13, 12Х17, 15Х25Т, 04Х18Н10, 08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т, 10Х23Н18, 08Х18Н10, 08Х18Н10Т, 08Х18Н12Т, 08Х17Н15М3Т, 12Х18Н10Т, 12Х18Н12Т, 12Х18Н9, 17Х18Н9, 08Х22Н6Т |
