Yuhong Holding Group Co.,LTD
Place of Origin: | China |
Brand Name: | Yuhong |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | ASTM B564 Monel400 |
Minimum Order Quantity: | 100 KGS |
---|---|
Price: | Negotiable |

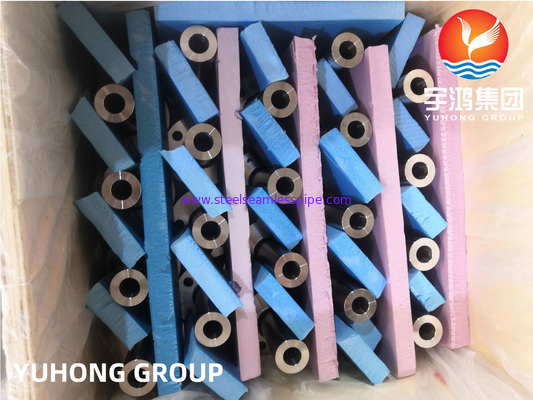

Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
Delivery Time: | 7 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000 ton/month |
Type: | Treaded Flange, Slip On Flange, Socket Weld Flange, Weld Neck Flange, Lap Joint Flange | Process: | Forged, Drilling/Bending/Stamping, Casting, Heating Treament |
---|---|---|---|
Inspection: | Mechinical Property Inspection, Factory Or Third Party Assigned, 100% Inspection | Pressure: | Class 150/300/600/900/1500/2500, PN 2.5/6/10/16/25/40, 0-63MPa, 150LB-2500LB |
High Light: | ASTM B564 Long Weld Neck Flange,UNS N04400 Long Weld Neck Flange,Alloy 400 Long Weld Neck Flange |

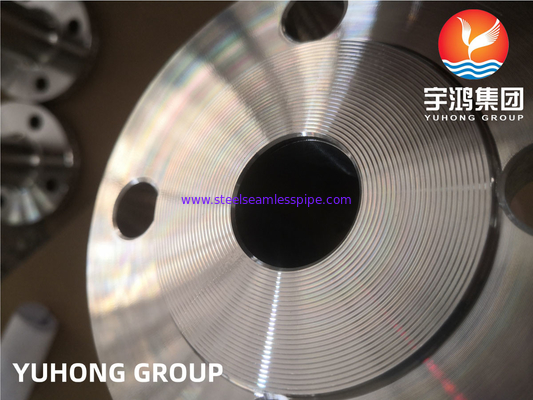

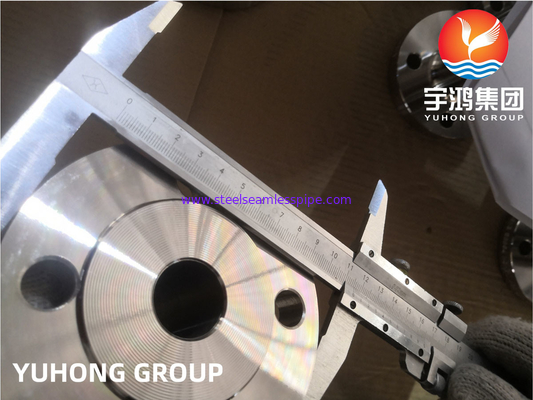

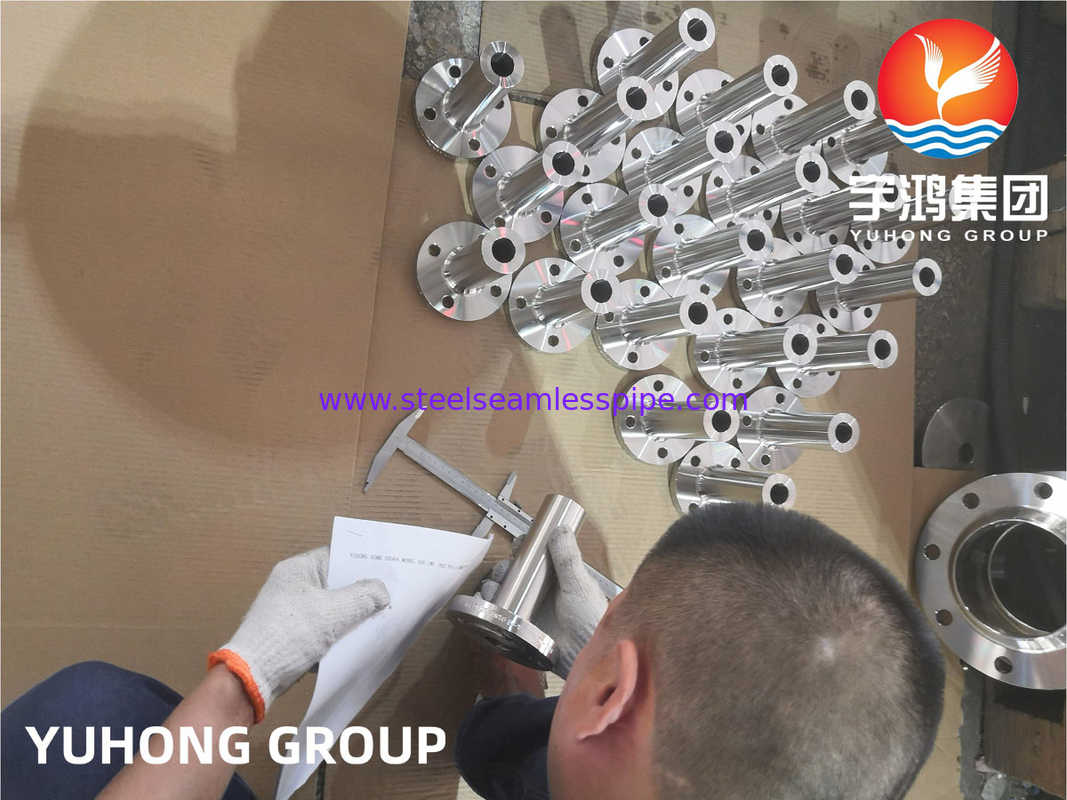

ASTM B564 Monel Alloy 400 LWN Flange Long Welded Neck Flange
YUHONG GROUP deal with Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy, Monel, Inconel, Incoloy) seamless and welded pipe and tube already more than 25 years, every year sell more than 80000 tons of steel pipe and tube.
Our client already cover more than 45 countries, like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Australia, Poland, France, etc. And our group branch company and factory have been already approved by : ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.
Monel 400 is a very popular nickel-copper alloy with better properties, which is often used in more critical and high-performance applications. Monel 400 has high strength, excellent acid and alkali resistance, and good thermal conductivity and ductility. This alloy can maintain its excellent characteristics and performance in the temperature range of minus to 1,000°F (538°C). Monel 400 can only be hardened by cold working.
Full Specification for Weld Neck Flange:
1. Standards:
(1) American Standard
ASME/ANSI B 16.5
(2) German Standard
DIN2641, DIN2642
(3) British Standard
BS 1560, BS 4504
(4) Australian & Japanese Standard
JIS B2220 / KS B1503, AS2129,
2. Material:
UNS N04400, N04401, N04404, N05500, N04405
3. Pressure Ratings:
PN2.5, PN6, PN10, PN16, PN25, PN40, PN64, PN80, PN100, PN250, PN320, PN400
150LB, 300LB, 400LB, 600LB, 900LB, 1500LB, 2500LB;
4. Size Range:
1/2" ~ 24" (DN15 ~ DN600)
SIZE
|
FLANGE
|
BARREL
|
BOLTING
|
Raised
Face Dia. R |
LENGTH
L |
WEIGHT
|
|||||
Nom
|
Unit
|
Bore
B |
OD
O |
Thk
T |
OD
D |
No. OF
Holes |
Hole
Size |
Bolt
Circle C |
POUND
KILO |
||
1/2
|
mm
inches |
12,7
0,50 |
88,9
3,50 |
11,2
0,44 |
31,8
1,25 |
4
|
15,7
0,62 |
60,5
2,38 |
34,9
1,38 |
228,6
9,00 |
3
1,36 |
3/4
|
mm
inches |
19,1
0,75 |
98,6
3,88 |
12,7
0,50 |
41,1
1,62 |
4
|
15,7
0,62 |
69,9
2,75 |
42,9
1,69 |
228,6
9,00 |
5
2,27 |
1
|
mm
inches |
25,4
1,00 |
108,0
4,25 |
14,2
0,56 |
50,8
2,00 |
4
|
15,7
0,62 |
79,2
3,12 |
50,8
2,00 |
228,6
9,00 |
7
3,17 |
1 1/4
|
mm
inches |
31,8
1,25 |
117,3
4,62 |
15,7
0,62 |
60,5
2,38 |
4
|
15,7
0,62 |
88,9
3,50 |
63,5
2,50 |
228,6
9,00 |
10
4,54 |
1 1/2
|
mm
inches |
38,1
1,50 |
127,0
5,00 |
15,5
0,69 |
66,5
2,62 |
4
|
15,7
0,62 |
98,6
3,88 |
73,0
2,88 |
228,6
9,00 |
12
5,44 |
2
|
mm
inches |
50,8
2,00 |
152,4
6,00 |
19,1
0,75 |
82,6
3,25 |
4
|
19,1
0,75 |
120,7
4,75 |
92,1
3,63 |
228,6
9,00 |
15
6,81 |
2 1/2
|
mm
inches |
63,5
2,50 |
177,8
7,00 |
22,4
0,88 |
95,3
3,75 |
4
|
19,1
0,75 |
139,7
5,50 |
104,8
4,13 |
228,6
9,00 |
22
9,98 |
3
|
mm
inches |
76,2
3,00 |
190,5
7,50 |
23,9
0,94 |
108,0
4,25 |
4
|
19,1
0,75 |
152,4
6,00 |
127,0
5,00 |
228,6
9,00 |
25
11,35 |
3 1/2
|
mm
inches |
88,9
3,50 |
215,9
8,50 |
23,9
0,94 |
124,0
4,88 |
8
|
19,1
0,75 |
177,8
7,00 |
139,7
5,50 |
228,6
9,00 |
32
14,52 |
4
|
mm
inches |
101,6
4,00 |
228,6
9,00 |
23,9
0,94 |
139,7
5,50 |
8
|
19,1
0,75 |
190,5
7,50 |
157,2
6,19 |
304,8
12,00 |
47
21,33 |
5
|
mm
inches |
127,0
5,00 |
254,0
10,00 |
23,9
0,94 |
165,1
6,50 |
8
|
22,4
0,88 |
215,9
8,50 |
185,7
7,31 |
304,8
12,00 |
57
25,87 |
6
|
mm
inches |
152,4
6,00 |
279,4
11,00 |
25,4
1,00 |
196,9
7,75 |
8
|
22,4
0,88 |
241,3
9,50 |
215,9
8,50 |
304,8
12,00 |
75
34,05 |
8
|
mm
inches |
203,2
8,00 |
342,9
13,50 |
29,4
1,12 |
247,7
9,75 |
8
|
22,4
0,88 |
298,5
11,75 |
269,9
10,63 |
304,8
12,00 |
102
46,30 |
10
|
mm
inches |
254,0
10,00 |
406,4
16,00 |
30,2
1,19 |
304,8
12,00 |
12
|
25,4
1,00 |
362,0
14,25 |
323,9
12,75 |
304,8
12,00 |
143
64,92 |
12
|
mm
inches |
304,8
12,00 |
482,6
19,00 |
31,8
1,25 |
365,3
14,38 |
12
|
25,4
1,00 |
431,8
17,00 |
381,0
15,00 |
304,8
12,00 |
205
93,07 |
14
|
mm
inches |
355,6
14,00 |
133,4
31,00 |
35,1
1,38 |
406,4
16,00 |
12
|
28,4
1,12 |
476,3
18,75 |
412,8
16,25 |
304,8
12,00 |
211
95,79 |
16
|
mm
inches |
406,4
16,00 |
596,9
23,50 |
36,6
1,44 |
457,2
18,00 |
16
|
28,4
1,12 |
539,8
21,25 |
469,9
18,50 |
304,8
12,00 |
246
111,68 |
18
|
mm
inches |
457,2
18,00 |
635,0
25,00 |
3,96
1,56 |
508,0
20,00 |
16
|
31,8
1,25 |
577,9
22,75 |
533,4
21,00 |
304,8
12,00 |
270
122,.58 |
20
|
mm
inches |
508,0
20,00 |
698,5
25,50 |
42,9
1,69 |
558,8
22,00 |
20
|
31,8
1,25 |
635,0
25,00 |
584,2
23,00 |
304,8
12,00 |
311
141,19 |
24
|
mm
inches |
609,6
24,00 |
812,8
32,00 |
4,78
1,88 |
666,8
26,25 |
20
|
35,1
1,38 |
749,3
29,50 |
692,2
27,25 |
304,8
12,00 |
423
192,04 |
