Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ISO9001-2008, PED, BV, DNV, ABS, NK, KR, LR |
| Model Number: | ASTM A182 F304 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | Cartons and Wooden Cases |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Swage Nipple | Standard: | ASTM A182 / ASME SA182 |
|---|---|---|---|
| Material: | Stainless Steel 304, 304L, 316L | Size: | 1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4",5",6",8",10",12" |
| Wall Thickness: | Sch 10s, Sch 20, STD, Sch 40, XS, Sch 80 | Connection: | Weld |
| End: | TBE, TOE, PBE, POE, BBE, BOE | Applications: | Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical |
| High Light: | stainless steel pipe fitting,stainless pipe fittings |
||

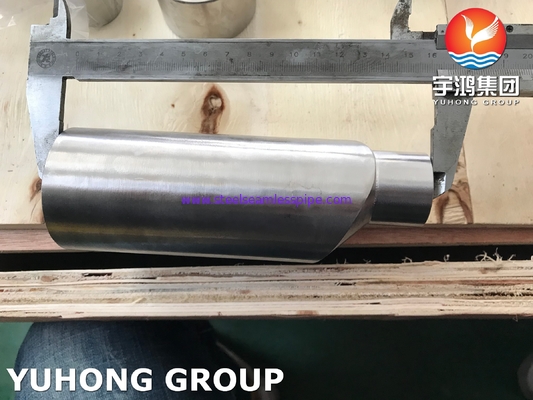

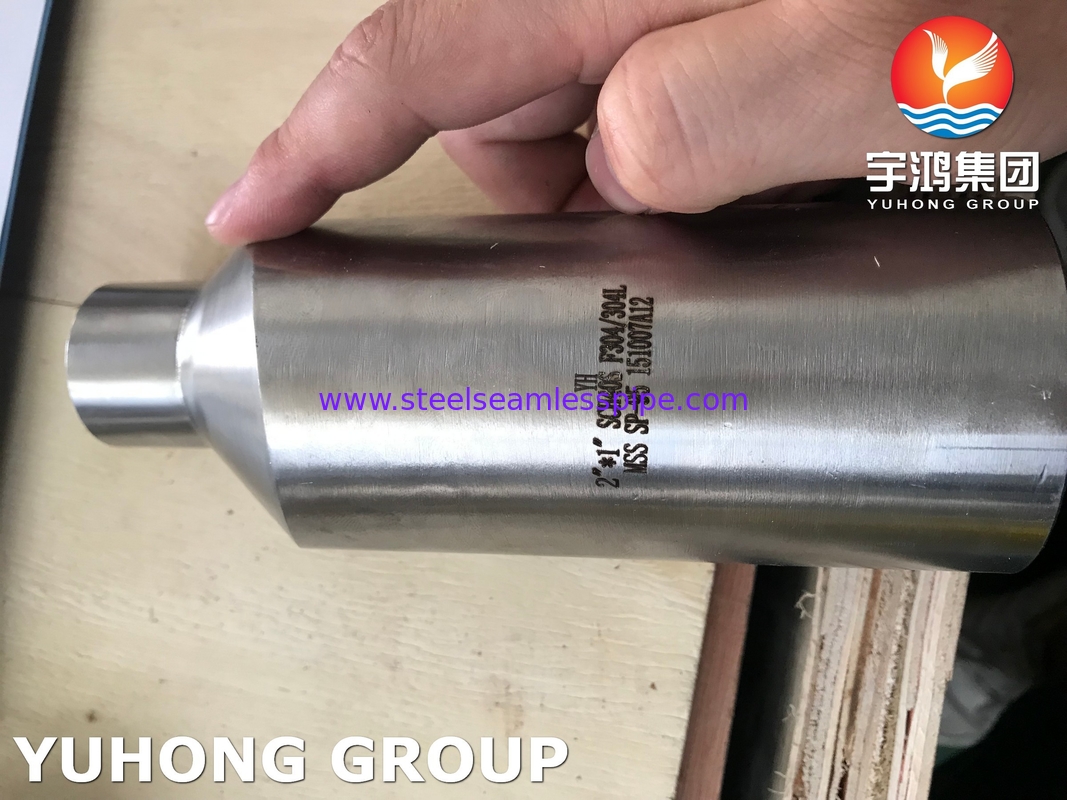

ASTM A182 F304 Stainless Steel Pipe Fitting Concentric Swage Nipple
Swage nipples are similar to reducer but are used for connecting buttweld pipes to smaller screwed or socket weld pipes. Forged swage nipple are designed to use in oil refineries, chemical processing, petrochemical and other industries.
| Size | 1/4 to 12 inch / DN8-DN300 |
| Pressure Rating | Sch 10s, Sch 20s, STD, Sch 40s, XS, Sch 80s |
| Standard | MSS-SP-95 |
| Type | Concentric and Eccentric Swage Nipple |
| End Type | TBE, TOE, PBE, POE, BBE, BOE, |
| Stainless Steel | ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321 |
| Caron Steel | ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70 |
| Alloy Steel | ASTM A182 F1, F5, F9, F11, F12, F22, F91 |
| Duplex Steel | ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760 |
Package of Stainless Steel 316 Forged Fittings
1. Marked with Grade, Lot No, Size, Standard and Pressure.
2. Wrapped forged swage nipple with plastic foam.
3. Packed stainless steel fittings into cartons and wooden cases.
Inspection of Stainless Steel Swage Nipple
1. Visual the surface. Such as dents, die marks, porosity, undercuts.
2. Check the marking. Such as size, material grade, pressure, heat no.

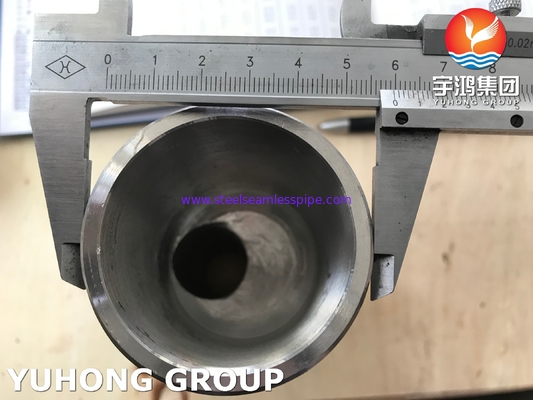

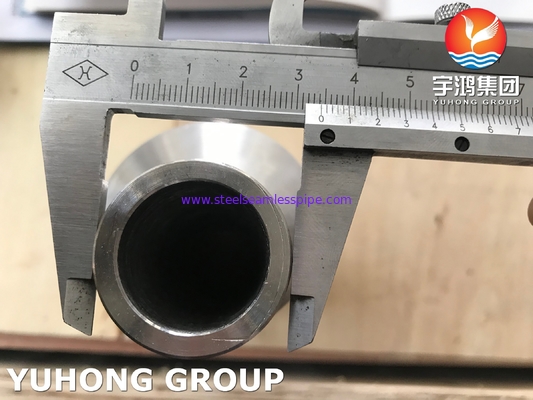

3. Measure the size. Such as diameter, thickness, height of end to end.
4. Test the chemical composition.
Applications
Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical
