Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A105 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | NEGOTIABLE |

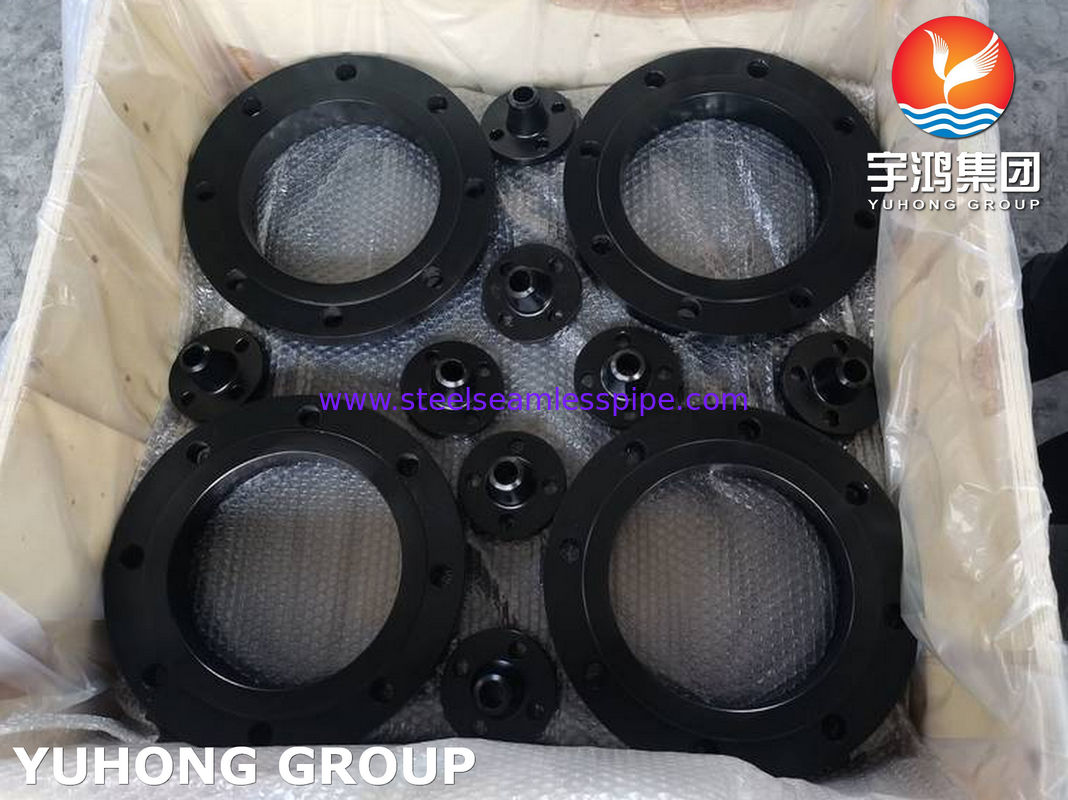

| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1500 Tons Per Month |
| Standard: | ANSI, DIN, JIS, BS, Etc. | Size: | Customized |
|---|---|---|---|
| Material: | Steel | Product Name: | Long Welding Neck Flange, Pipe Flange, Hydraulic Flange, Stainless Steel Flange |
| Application: | Petroleum, Chemical, Power, Gas, Metallurgy, Shipbuilding, Construction, Etc. | Pressure: | 150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB |
| Type: | Treaded Flange, Slip On Flange, Socket Weld Flange, Weld Neck Flange, Lap Joint Flange | Name: | DIN 2573 2543 GOST Stainless Steel Pipe Slip On Flange PN16, ANSI B16.5 150LB Weld Neck Carbon Steel Pipe Flanges, ANSI B16.5 2 Inch Pipe Carbon Steel Flange Class125, Stainless Steel Pipe Fittings |
| Process: | Forged, Drilling/Bending/Stamping, Casting, Heating Treament | Surface Treatment: | Heat Treament, Pickeling, Galvanized, Customize |
| Inspection: | Mechinical Property Inspection, Factory Or Third Party Assigned, 100% Inspection | Connection: | Welding, Threaded, Slip-on, Socket Welding, Lap Joint, Blind |
| Certificate: | ISO, CE, API, Etc. | Lead Time: | 7-15 Days |
| MOQ: | 1 Piece | Package: | Wooden Cases, Pallets, Or As Customers' Requirements |
| Shape: | Round | Surface Treatment: | Galvanized, Polishing, Sand Blasting, Etc. |
| High Light: | Carbon Steel Raised Face Flange,Painted Raised Face Flange,Raised Face Slip On Flange |
||

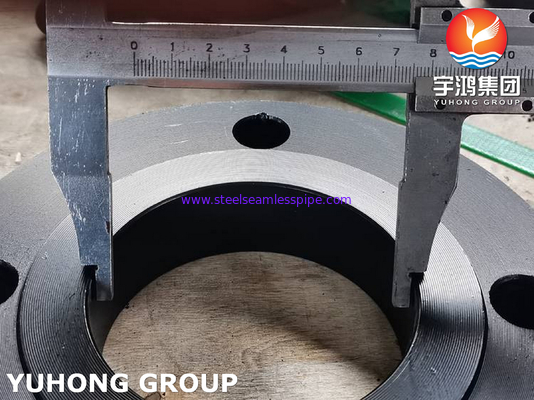

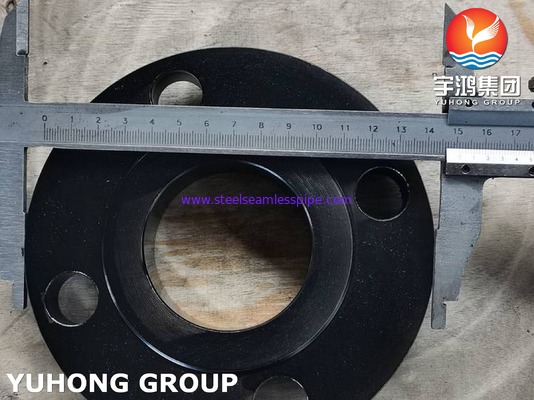

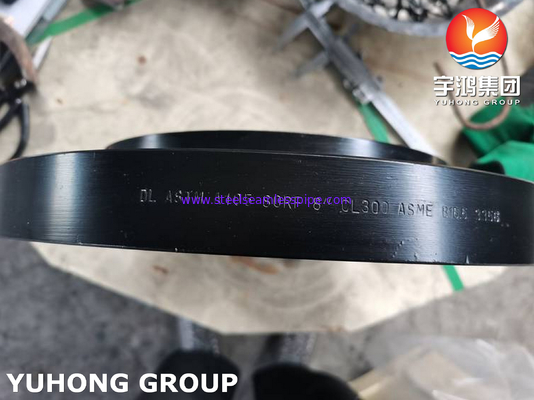

We are a manufacturer, supplier and exporter of Carbon Steel A105 / A105N Flanges, classified by the American Society for Testing and Materials as a standard covering forged carbon steel pipe components, which also includes carbon steel pipe flanges that can be used in pressure systems at room temperature and above. We manufacture Carbon Steel A105/A105N Blind Flanges which successfully contain and seal pipe ends in heavy pressure applications such as hydraulic systems because they have the greatest bending stress at the center.
Our carbon steel A105 slip flanges are suitable for non-critical conditions due to their low carbon content. However, our carbon steel A105N SWRF flanges are "standardized" flanges for better performance. We also provide various carbon steel ASTM A105 flanges such as ASTM A105 slip flange, carbon steel butt weld flange, carbon steel socket weld flange, A105N carbon steel blind flange, carbon steel orifice flange, A105 carbon steel Steel glasses blind flanges, A105 threaded/threaded flanges, carbon steel reducing flanges, ASTM A105N carbon steel ring joint flanges (RTJ), etc.
Specifications : ASTM A105 / ASME SA105, A105N
Dimensions: ANSI/ASME B16.5, B 16.47 Series A and B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard: ANSI flange, ASME flange, BS flange, DIN flange, EN flange, etc.
Sizes: 1/2" to 48"
Grade/pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, etc.
Flange Face Types: Flat Face (FF), Raised Face (RF), Ring Joint (RTJ)
| Element | Composition %, Note C |
|---|---|
| Carbon | .35 max |
| Manganese | .60-1.05 |
| Phosphorus | .035 max |
| Sulfur | .040 max |
| Silicon | .10-35 |
| Copper | .40 max, note A |
| Nickel | .40 max, note A |
| Chromium | .30 max, note A,B |
| Molybdenum | .12 max, note A,B |
| Vanadium | .08 max, note A |
Forged and Plate Flanges
| Products | Size | |
| ASTM A105 Carbon Steel Slip-On Flanges | ASTM A105 Carbon Steel Threaded Flanges | Sizes 1/2″ – 48″ Raised Face or Flat Face |
| ASTM A105 Carbon Steel Weld Neck Flanges | ASTM A105 Carbon Steel Socket Weld Flanges | |
| ASTM A105 Carbon Steel Blind Flanges | ASTM A105 Carbon Steel Reducing Flanges | |
| ASTM A105 Carbon Steel Lap Joint Flanges | ASTM A105 Carbon Steel Plate Flanges | |
| ASTM A105 Carbon Steel Orifice Flanges | ASTM A105 Carbon Steel Forged Flanges | |
| ASTM A105 Carbon Steel Ring Type Joint Flanges | ASTM A105 Carbon Steel Square Flanges |
|
Carbon Steel Flange Standards / Types And Pressure Class :
| ASME/ANSI B 16.5 | Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Welding Neck Flange, Blind Flange [Series A & B] |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange, Slip on Flange, Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS |
PN 6 TO PN 100 |
