Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A182 F51 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1500 Tons Per Month |
| Material: | Steel | Shape: | Equal, Reducing, Round |
|---|---|---|---|
| Connection: | Butt Weld | Technics: | Forged, Casting, Pushing, Butt Weld, Welding |
| Size: | 1/2 Inch | Standard: | ANSI, DIN, ASME, JIS, GB, Etc. |
| Product Name: | Black Painting Fittings, Press Fitting, Vaccum Pipe, Butt Welding Pipe Fitting, Stainless Steel Pipe Fittings | Application: | Gas And Oil Pipes, Petroleum Gas, Joining Pipe Lines |
| Thickness: | STD, DIN, SCH40, SGP, SCH10-XXS(2-60mm) | Schedule: | SCH 5- SCH XXS |
| Material Grade: | UNS S31254, 254 SMO, 1.4547 | Pressure Rating: | 3000 PSI |
| Specification: | ASTM A403 | Ndt: | Magnetic-particle Inspection， UT |
| Packing: | Plywood Case Or Pallet | Color: | On Quest,Natural Color,Black |
| Classs: | 3000#,6000#,9000# | Type: | Elbow |
| Dimension Standard: | ASME B16.9 | Oem: | Accept |
| Payment: | TT/LC | Connection Type: | Threaded |
| High Light: | Duplex Steel Coupling Elbow,High Pressure Pipe Coupling Elbow,Coupling 90 Degree Elbow |
||

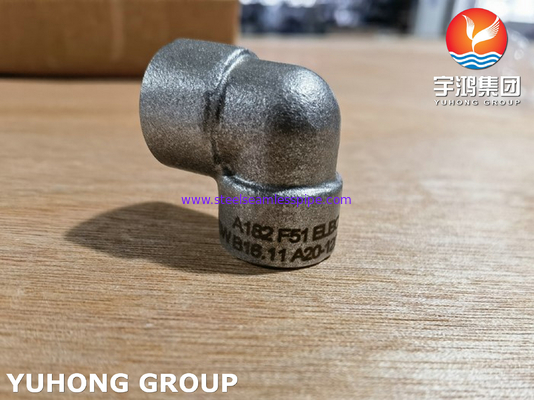

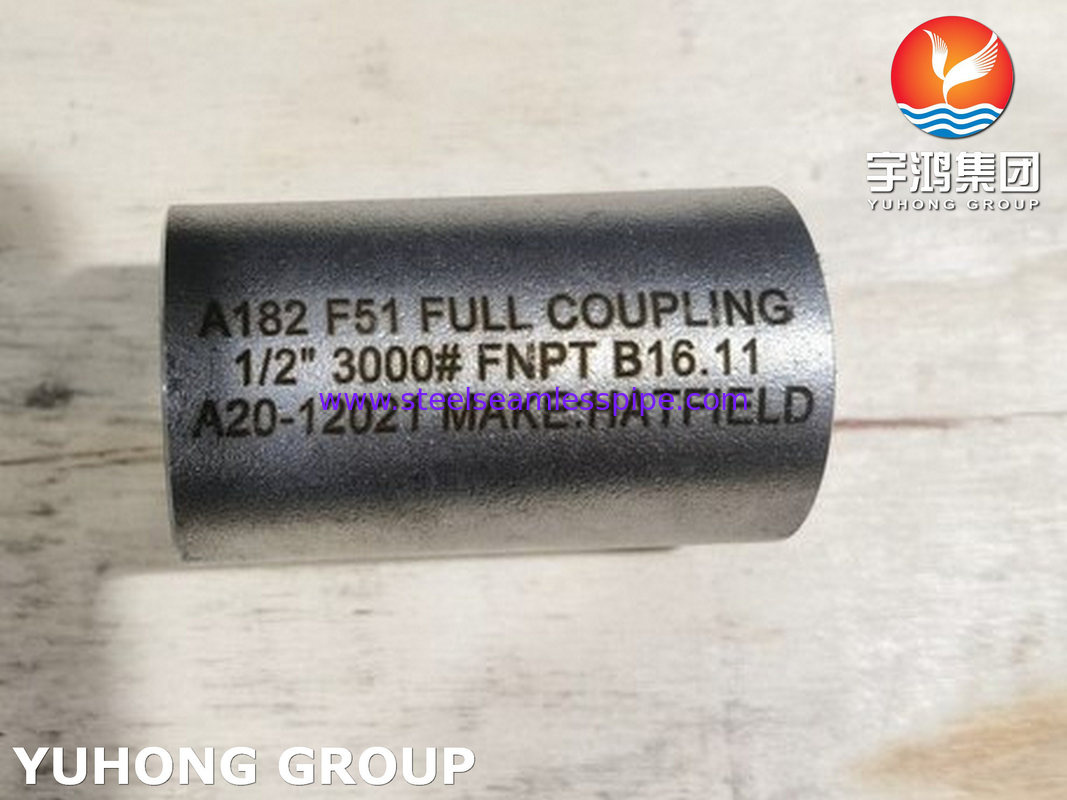

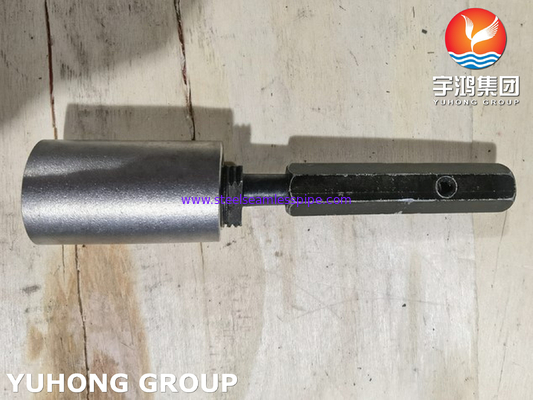

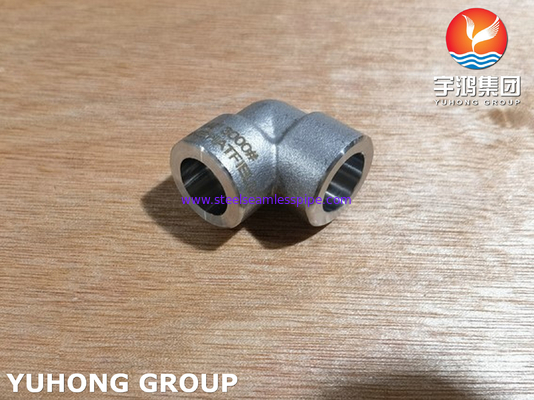

ASTM A182 F51 Duplex Steel Socket Weld Fitting is a pipe connection detail in which the pipe is inserted into the recessed area of a valve, fitting or flange. Compared to butt weld fittings, socket weld fittings are primarily used for Small Bore Piping; typically used for pipes with a nominal diameter of NPS 2 or smaller.
To connect pipes to valves and fittings or other parts of the pipe, angle seal welds can be used. Socket welded joint construction is an excellent choice as long as the benefits of high leakage integrity and structural strength are important design considerations.
We specialize in ASTM A182 F51 fittings for a variety of engineering applications.
We use high standard machines with the latest technology, capable of mass production of pipe fittings. With all the required specifications, configurations, dimensions, we are manufacturing perfectly matched and perfectly fitted accessories to meet our needs and meet the application requirements. We are a highly recognized professional manufacturer with a high level of industry expertise and the latest technology.
Our team has skilled and experienced experts who are constantly updating and implementing modern methods to improve quality and quantity. We provide door-to-door service with proper packaging and shipping to avoid any damage in transit. Our professionals oversee accessories at every stage of manufacture to ensure quality and prevent defects. With the best quality, best finish, accurate specifications and on-time delivery, we provide our customers with exceptional service.
| ASTM A182 F51 Duplex Steel Socket Weld Fitting Specification | ASTM A182 / ASTM SA182, ASTM A105 / ASME SA105, ASTM A350 / ASME SA350, ASTM A694 / ASME SA694, ASTM B462 / ASME SB462 / ASTM B564 / ASME SB564, ASTM B366 / ASME SB366, ASTM B381 / ASME SB381 |
| ASTM A182 F51 Duplex Steel Socket Weld Fittings Manufacturing Process | Forging / Socket / Threaded / Screwed |
| ASTM A182 F51 Duplex Steel Socket Weld Fittings Other Grades | Stainless Steel - F304, F304L, F304H, F310s, F316, F316L, F317L, F321, F347, F904L, F410, F446 etc. Carbon Steel - 105N, LF2, F42, F46, F52, F56, F60, F65 etc. Alloy Steel - F5, F9, F11, F22, F91, 4140, Class 1, 2, 3 etc. Duplex and Super Duplex - F51, F53, F55, UNS N031803, UNS N032750, UNS N032760 etc. Inconel - 600, 601, 625, 718, UNS N06600, UNS N06601, UNS N06625, UNS N07718 etc. Incoloy - 800, 800H, 800HT, 825, UNS N08800, UNS N08810, UNS N08811, UNS N08825 etc. Monel - 400, UNS N04400 etc. Hastelloy - C276, C22, UNS N010276, UNS N06022 etc. Titanium - Grade 2, Grade 3, UNS R50400, UNS R56200 etc. Copper Nickel - 90/10, 70/30, UNS C71500, UNS C70600 etc. Other - Alloy 20, SMO 254, F44, 6 Moly, UNS N08020, UNS N031254 etc. |
| ASTM A182 F51 Duplex Steel Socket Weld Fittings Outer Diameter | 1/8" NB TO 4" NB (DN6 to DN100) |
| ASTM A182 F51 Duplex Steel Socket Weld Fittings Pressure Class | 2000 LBS, 3000 LBS, 6000 LBS ,9000 LBS or As Per Custom Requirement |
| ASTM A182 F51 Duplex Steel Socket Weld Fittings Types | 45 Degree Elbow, 90 Degree Elbow, Lateral, Tee, Reducer Insert, Full Coupling, Half Coupling, Reducing Coupling, Cap, Union, Cross, Boss, Plug, Bushing etc. |
| ASTM A182 F51 Duplex Steel Socket Weld Fittings Dimension | ASME 16.11 - Socket Welding and Threaded Forged Fittings MSS SP-79 - Socket Welding Reducer Inserts MSS SP-83 - Socket Weld Union MSS SP-95 - Swage(d) Nipples and Bull Plugs BS 3799 - Specification for Steel Pipe Fittings, Screwed and Socket-welding for the petroleum industry. |
| ASTM A182 F51 Duplex Steel Socket Weld Fittings Other Testing | Tensile, Hardness Test, Chemical Analysis – Spectro Analysis, Positive Material Identification – PMI Testing, Flattening Test, Micro and Macro Test, Pitting Resistance Test, Flaring Test, Intergranular Corrosion (IGC) Test, NACE MR0175, Ultrasound Test, ASTM A262 Practice E, Charpy Impact Test, Grain Size, Dye Penetrant Test etc. |
| ASTM A182 F51 Duplex Steel Socket Weld Fittings Packaging | Carrate / Wooden Pallet / Wooden box-a |
| ASTM A182 F51 Duplex Steel Socket Weld Fittings Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| ASTM A182 F51 Duplex Steel Socket Weld Fittings Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
The chemical composition of ASTM A182 F51 Duplex Steel Socket Weld Fittings is outlined in the following table
| UNS N0 | Spec | Common Name | C | Mn | P | S | Si | Ni | Cr | Mo | Others |
| UNS N031803 | ASTM A182 / ASME SA182 | F51 | 0.030 | 2.00 | 0.030 | 0.020 | 1.00 | 4.5 - 6.5 | 21.0 - 23.0 | 2.5 - 3.5 | N 0.08 - 0.20 |
| UNS N032205 | ASTM A182 / ASME SA182 | F60 / 2205 | 0.030 | 2.00 | 0.030 | 0.020 | 1.00 | 4.5 - 6.5 | 22.0 - 23.0 | 3 - 3.5 | N 0.14 - 0.20 |
| UNS N032750 | ASTM A182 / ASME SA182 | F53 / SAF® 2507 | 0.030 | 1.20 | 0.035 | 0.020 | 0.80 | 6.0 - 8.0 | 24.0 - 26.0 | 3.0 - 5.0 | N 0.24 - 0.32, Cu 0.50 |
| UNS N032760 | ASTM A182 / ASME SA182 | F55 / Zeron® 100 | 0.030 | 1.00 | 0.030 | 0.010 | 1.00 | 6.0 - 8.0 | 24.0 - 26.0 | 3.0 - 4.0 | N 0.20 - 0.30, Cu 0.50 - 0.10, W 0.50 - 1.00 |
| UNS N0 | Spec | Common Name | Tensile Strength, min, ksi [MPa] |
Yield Strength, min, ksi [MPa]A |
Elongation in 2 in., [50 mm] or 4D, min, % |
Reduction of Area, min, % |
Brinell Hardness Number |
| UNS N031803 | ASTM A / SA182 | F51 | 90 [620] | 65 [450] | 25 | 45 | ... |
| UNS N032205 | ASTM A / SA182 | F60 / 2205 | 95 [655] | 65 [450] | 25 | 45 | ... |
| UNS N032750 | ASTM A / SA182 | F53 / SAF® 2507 | 116 [800] | 80 [550] | 15 | ... | 310 max |
| UNS N032760 | ASTM A / SA182 | F55 / Zeron® 100 | 109-130 [750-895] |
80 [550] | 25 | 45 | ... |
