Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Model Number: | ASTM A269 TP316L |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1500 Tons Per Month |
| Certification: | ISO, SGS, BV, ISO&SGS, ISO/CE/SGS | Steel Grade: | 300 Series, Stainless Steel 304/316L, 400 Series, X5CrNi18-20, 200 Series |
|---|---|---|---|
| Type: | Seamless, Welded, Round Pipe | Standard: | ASTM, AISI, DIN, EN, GB, JIS, Etc. |
| Length: | 6m Or As Customer's Requirement | Thickness: | 0.4-30mm, 1.0mm, 0.6-2500mm,1-60mm, 0.6-25mm |
| Technique: | Cold Rolled Hot Rolled, Cold Drawn, Extrusion, Cold Drawn/Cold Rolling Or Both Of Them | Product Name: | Stainless Steel Pipe, 304 304L 316 316L 321 310S Stainless Steel Welded/Seamless Tube |
| Material: | Stainless Steel | Outer Diameter: | 6-630mm, 6-762mm, 6-860mm, Customized |
| Grade: | 201/202/304/304L/316/316L/321/321H/347/347H/310S/410/420/430/440/439, Etc | Finish: | Brush Polish, Cold Drawn, Bright Annealed Or Un Annealed |
| Application: | Fluid Pipe, Boiler Pipe, Heat Exchanger Pipe, Etc. | Ends: | Plain End, Beveled End, Threaded End, Etc. |
| Inner Diameter: | 6-630mm | Outer Diameter: | 6-630mm |
| Processing Service: | Cutting, Bending, Welding, Etc. | Shape: | Round |
| Surface Finish: | Polished, Brushed, Etc. | Surface Treatment: | Bright Annealed |
| Tolerance: | ±0.2mm | Wall Thickness: | 0.3-30mm |

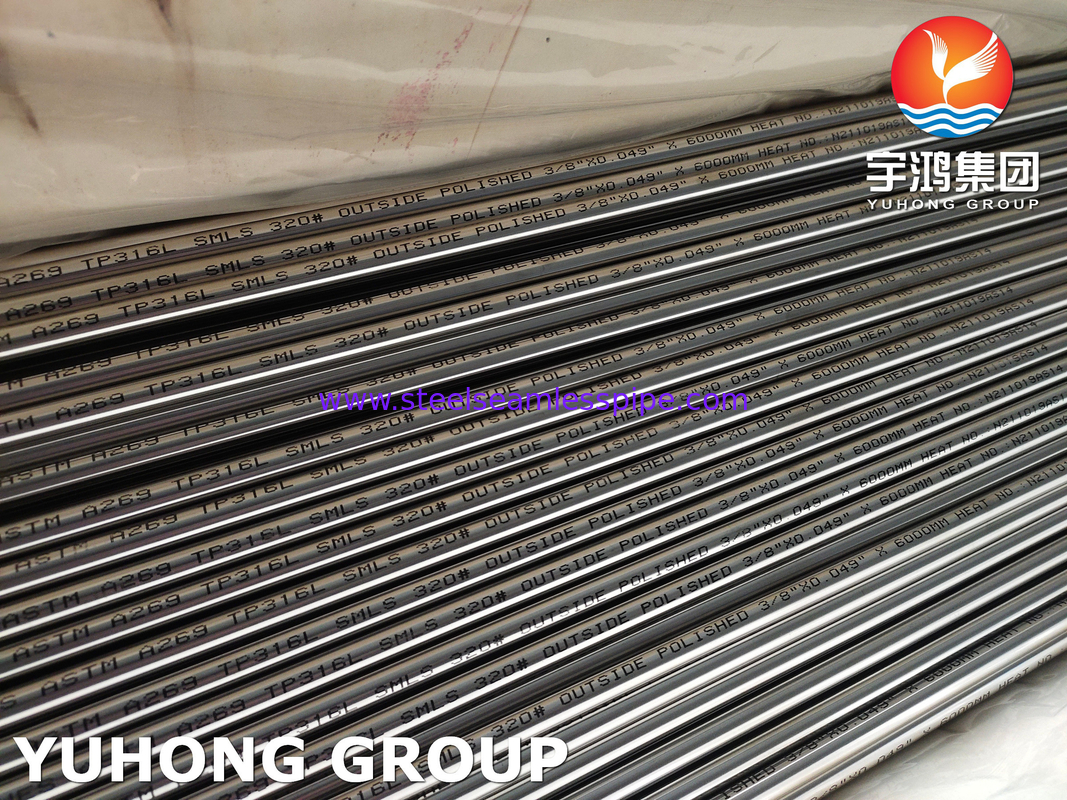

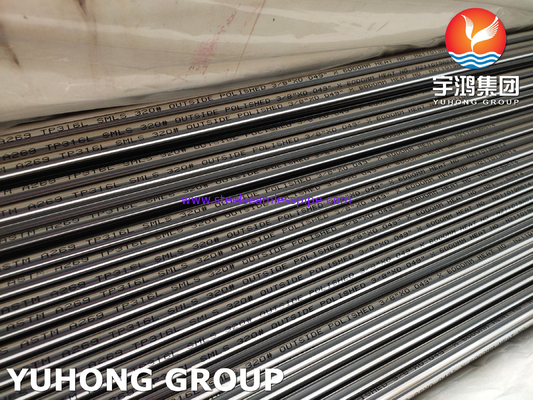

| High Light: | 320 Degree Polished Bright Annealed Tube,Bright Annealed Seamless Round Tube,Annealed Stainless Steel Tubing TP316L |
||
ASTM A269 seamless stainless steel tubing for low and high temperature service. These pipes can be made from austenitic steel using resistance welding, electrofusion welding or seamless cold drawn mechanisms. SA269 tubing is also available in different finishes and can be heat treated. SA 269 Tp 316 is more corrosion resistant than 304 material type and can be used in high pressure and high temperature as well as low pressure and low temperature applications. Therefore, SA 269 Tp 304 and ASTM A269 Tp316l material grade pipes have different schedules. ASTM A269 Tp316 pipe is used for high pressure and high temperature services such as hydraulic systems. Additional specifications for ASTM A269 pipe are available in the textile, chemical and marine industries. ASTM A269 has very high tolerances for chloride-rich environments and most oxidizers. Therefore, ASTM A269 seamless stainless steel pipe is ideal for the chemical and marine industries. In addition, ASTM A269 seamless pipe has good corrosion resistance for general use. ASTM A269 SS pipe is widely used in these industries due to its accuracy in size, strength and corrosion resistance.
| Shapes | Round, Rectangular, Square, Hydraulic, Straight, "U" Shape, Coiled, Honed Tubes, Pan Cake Coils |
| Manufacturing Type | Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded |
| Delivery Condition | Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF |
| Surface Finish | BA, 2B, No.4, No.1, No.3, No.8, 8K, HL, 2D, 1D, Mirror Polished, 180G, 320G, 400G Satin/ Hairline, 400G, 500G, 600G or 800G Mirror finish Tubing or Custom Finish as per customer's specification |
| Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS |
| Standard | SUS, JIS, AISI, ASTM, GB, DIN, EN |
| Relevant Standard | ASTM A213, ASTM A312, ASTM A269, ASTM A778, ASTM A554, ASTM A249, ASTM A269, ASTM A270, ASTM A789, DIN 17456, DIN17457, DIN 17459, JIS G3459, JIS G3463, GOST9941, EN10216, BS3605, GB13296 |
| Value Added Services |
|
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| END | Plain End, Beveled End, Treaded |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting, Moulding |
| Technique | Cold drawn, Cold rolled, Hot rolled, Extrusion Tube |
| Test Certificate |
|
| Packing | Ends Capped, Sleeved, Wooden Boxed |
| Port | Mumbai, India |
| Uses & Application |
|
| SS GRADE | HEAT TREATMENT | TEMPERURE F (C) MINIMUM | HARDNESS | |
|---|---|---|---|---|
| BRINELL | ROCKWELL | |||
| TP304 | Solution | 1900 (1040) | 192HBW/ 200HV | 90HRB |
| TP304L | Solution | 1900 (1040) | 192HBW/ 200HV | 90HRB |
| TP316 | Solution | 1900(1040) | 192HBW/ 200HV | 90HRB |
| TP316L | Solution | 1900(1040) | 192HBW/ 200HV | 90HRB |
| TP321 | Solution | 1900(1040) F | 192HBW/ 200HV | 90HRB |
| TP347 | Solution | 1900(1040) | 192HBW/ 200HV | 90HRB |
| SS GRADE | ASTM A269/SA 269 CHEMICAL COMPOSITION % MAXIMUM | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| C | MN | P | S | SI | CR | NI | MO | N B | NB | TI | |
| TP304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-11.0 | --- | --- | --- | --- |
| TP304L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-12.0 | --- | --- | --- | --- |
| TP316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | --- | --- | --- |
| TP316L | 0.035 D | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | --- | --- | --- |
| TP321 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-12.0 | --- | --- | --- | 5C -0.70 |
| TP347 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-12.0 | 10C -1.10 | --- | ||
| OD, INCH | OD TOLERANCE INCH(MM) | WT TOLERANCE % | LENGTH TOLERNACE INCH(MM) | |
|---|---|---|---|---|
| + | - | |||
| ≤1 /2 | ± 0.005 ( 0.13 ) | ±15 | 1 /8 ( 3.2 ) | 0 |
| > 1 /2~1 1 /2 | ±0.005(0.13) | ±10 | 1 /8(3.2) | 0 |
| > 1 1 /2~< 3 1 /2 | ± 0.010(0.25) | ±10 | 3 /16(4.8) | 0 |
| > 3 1 /2~< 5 1 /2 | ± 0.015(0.38) | ±10 | 3 /16(4.8) | 0 |
| > 5 1 /2~< 8 | ± 0.030(0.76) | ±10 | 3 /16(4.8) | 0 |
| 8~< 12 | ± 0.040(1.01) | ±10 | 3 /16(4.8) | 0 |
| 12~< 14 | ± 0.050(1.26) | ±10 | 3 /16(4.8) | 0 |
