Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A335 P11 Alloy Steel Studded Fin Tube |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Packaging Details: | Ply-wooden Case /Iron Case |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Studded Fin Tube | Tube Standard: | Carbon Steel, Stainless Steel, Alloy Steel |
|---|---|---|---|
| Tube Material: | Carbon Steel, Stainless Steel, Alloy Steel | Type: | Welding, Studded |
| Tube OD: | 20mm To 219mm | Tube Thickness: | 2mm To 16mm |
| Tube Length: | Can Customized | Fin Thickness: | 0.8mm To 4mm |
| Fin Density: | 43 Fins Per Meter To Max 287 Fins Per Meter | Fin Height: | 0.25" (6.35mm) To 1.5"(38mm) |
| Application: | Air Cooler, Heat Exchanger, Vaporizer, Condenser | ||
| High Light: | Alloy Steel Studded Fin Tube,ASTM A335 P11 Fin Tube,Heat Exchanger Extruded Finned Tube |
||

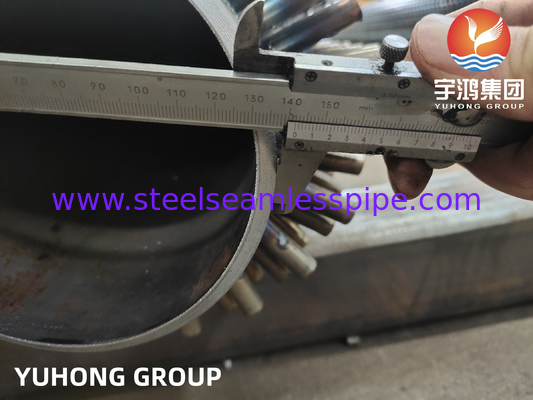

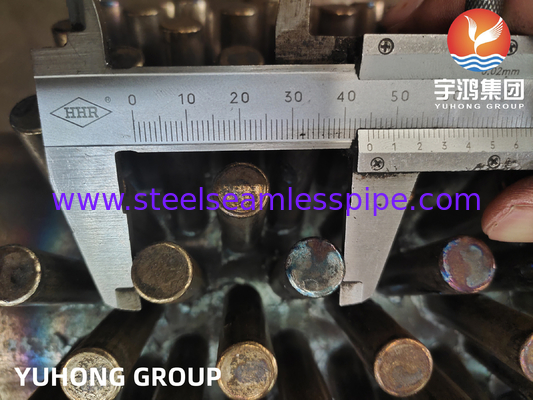

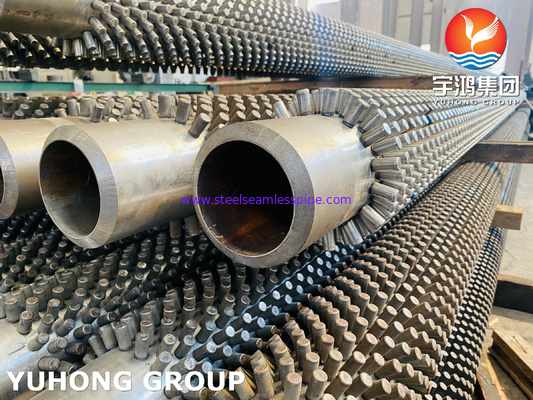

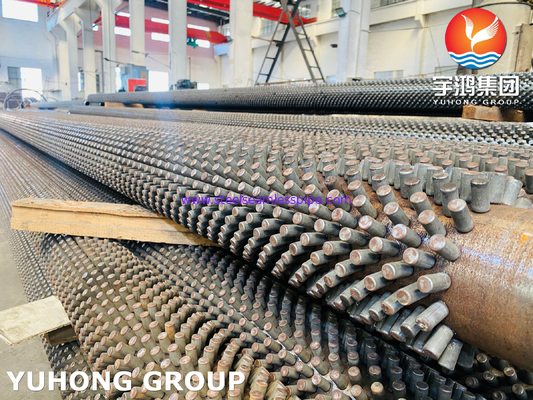

ASTM A335 P11 Alloy Steel Studded Pin Finned Tube / Pipe For Heat Exchanger
Studded Fin Tube/ Studded Pin Finned Tubes are tubes used in heat exchangers that have protruding studs and fins on their surface. These help to increase the surface area of the tubes, which in turn improves the heat transfer efficiency. These tubes are commonly used in high temperature and high pressure applications, such as in the chemical, petroleum, and natural gas industries. The studs can be made of a variety of materials, including carbon steel, stainless steel, and other alloys. The fins can also be made from different materials, such as aluminum or copper. Studded Pin Finned Tubes are designed to withstand harsh operating conditions and are a reliable choice for heat transfer applications.
Fin Tube Specification
| PRODUCT | TYPE | NAME | BARE TUBE MATERIAL | FIN MATERIAL |
| Heat Exchanger Finned Tube | EMBEDDED | G-TYPE FIN TUBE | CARBON STEEL, COPPER, STAINLESS STEEL, ALLOY | ALUMINUM |
| EXTRUDED | SINGLE METAL GOMBINED METAL | CARBON STEEL, COPPER, STAINLESS STEEL, ALLOY | COPPER, ALUMINUM | |
|
LOW FIN TUBE T-TYPE FIN TUEB |
CARBON STEEL, COPPER, STAINLESS STEEL, ALLOY | / | ||
|
BAMBOO TUBE CORRUGATED TUBE |
CARBON STEEL, COPPER, STAINLESS STEEL, ALLOY |
/ |
||
| WOUND | L/KL/LL TYPE FIN TUBE | CARBON STEEL, COPPER, STAINLESS STEEL, ALLOY | COPPER,ALUMINUM | |
| STRING | STRING FIN TUBE | ALUMINUM, COPPER, CARBON STEEL, STAINLESS STEL | ALUMINUM, COPPER, CARBON STEEL, STAINLESS STEL | |
| U-TYPE | U-TYPE TUBE | CARBON STEEL, COPPER, STAINLESS STEEL | / | |
| WELDING | HF WELDING FIN TUBE | CARBON STEEL, STAINLESS STEEL, ALLOY | CARBON STEEL, STAINLESS STEEL, ALLOY | |
| H/HH TYPE FIN TUBE | CARBON STEEL, STAINLESS STEEL, ALLOY | CARBON STEEL, STAINLESS STEEL, ALLOY | ||
| STUDDED FIN TUBE | CARBON STEEL, STAINLESS STEEL, ALLOY | CARBON STEEL, STAINLESS STEEL, ALLOY |
Alloy Steel Chemical Compositions
| Grade | UNS Designation | Composition, % | ||||||
| Carbon | Manganese | Phosphorus, max | Sulfur, max | Silicon | Chromium | Molybdenum | ||
| P1 | K11522 | 0.10-0.20 | 0.30-0.80 | 0.025 | 0.025 | 0.10-0.50 | -- | 0.44-0.65 |
| P2 | K11547 | 0.10-0.20 | 0.30-0.61 | 0.025 | 0.025 | 0.10-0.30 | 0.50-0.81 | 0.44-0.65 |
| P5 | K41545 | 0.15MAX | 0.30-0.60 | 0.025 | 0.025 | 0.50MAX | 4.00-6.00 | 0.45-0.65 |
| P9 | K90941 | 0.15MAX | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 1.00-1.50 | 0.44-0.65 |
| P11 | K11597 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
| P12 | K11562 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.5MAX | 0.80-1.25 | 0.44-0.65 |
| P15 | K11578 | 0.05-0.15 | 0..30-0.60 | 0.025 | 0.025 | 1.15-1.65 | -- | 0.44-0.65 |
| P21 | K31545 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50MAX | 2.65-3.35 | 0.80-1.06 |
Technical Details/Base Tube Details
Tube Diameter : 20 mm OD Min to 219 mm OD Max.
Tube Thickness : Minimum 2 mm up to 16mm
Tube Material : Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, duplex Steel, Super Duplex Steel, Inconel, High Chrome High Nickle & Incolloy, CK 20 material and some other material.
Fin Details
Fins Thickness : Min. 0.8 mm to Max. 4 mm
Fins Height : Min 0.25” (6.35 mm) To Max.1.5” (38 mm)
Fin Density : Min 43 Fins Per Meter To Max. 287 Fins Per Meter
Material : Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, Duplex Steel and Incolloy.
For a rapid quotation, plz send with following requirement:
Number of pieces,
base tube: Diameter, thickness, length and material specification.
Fins: material specification, type (solid or serrated), height, thickness, spacing, finned length and unfinned sections. Weld prep details if required.
Delivery period required.
Advantages of Studded Tubes
Studded Pin Finned Tubes are often chosen for heat transfer applications because they offer several advantages over other types of tubes. The studs and fins on the surface of the tubes increase the surface area, which improves heat transfer efficiency. This means that a smaller heat exchanger can be used to achieve the same level of heat transfer as a larger one, resulting in cost savings. Additionally, the studs and fins help to disrupt laminar flow and promote turbulent flow, which also enhances heat transfer. Studded Pin Finned Tubes are also durable and can withstand harsh operating conditions, making them a reliable choice for high temperature and high pressure applications.
1. As the pin rib of the studded tubes is a cantilever structure with a compact structure, the pin rib will vibrate under the impact of the air flow, making it difficult to accumulate soot.
2. due to the strong turbulent flushing of flue gas, the studded tubes heat exchange element has high heat transfer efficiency and strong self ash removal capability.
Application of Finned Tube in Industries
