Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | F22 |
| Minimum Order Quantity: | 500kgs |
|---|---|
| Price: | negotiation |
| Packaging Details: | PLYWOOD CASE |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C at sight |
| Supply Ability: | 10000Ton/Month |

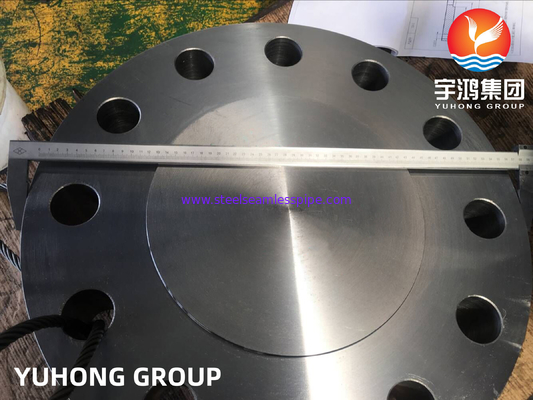

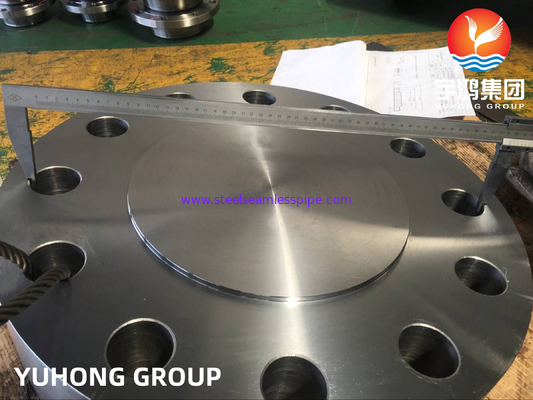

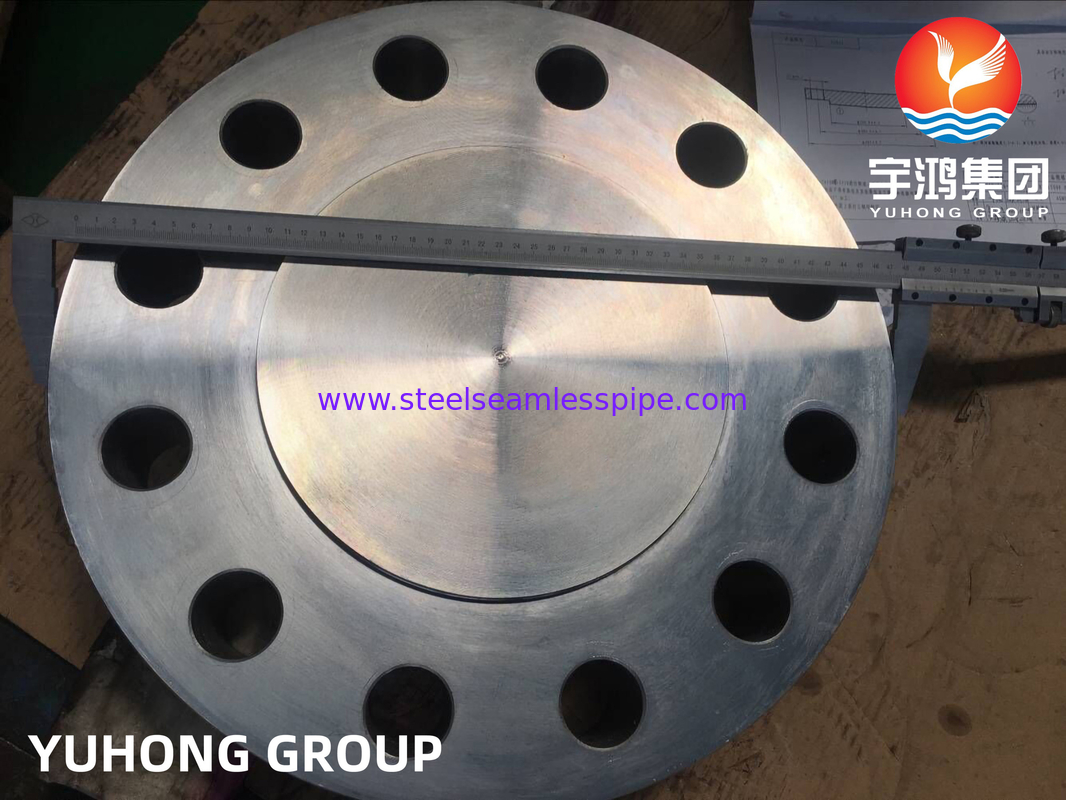

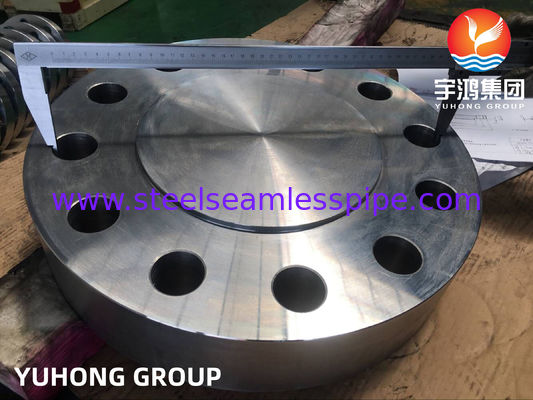

| TYPE: | BLRF | SIZE: | As Per Client |
|---|---|---|---|
| WT: | Sch10s To XXS | STANDARD: | ASTM A182 |
| High Light: | Alloy Steel BLRF Flange,Gr F22 Alloy Steel Flange,Plumbing Heating BLRF Flange |
||
What is F22 Flange?
Alloy Steel F22 Flanges come in different specifications and classes. A182 F22 is made up of chromium molybdenum alloy. The alloy is designed to work under high pressure and high temperature conditions. A182 Gr F22 Flanges have very high chloride corrosion resistance and can withstand harsh corrosive environments such as in the marine industry and in paper and pulp industry. ASTM A182 Grade F22 Flanges also hold excellent resistance against sulfuric acid which makes them suitable for chemical industries where sulfuric acid lines have to be connected together. ASTM A182 F22 Pipe Flanges can be delivered in different forms and shapes such as, raised face, welded neck, slip on, blind face and others.
Chemical Composition of A182 F22 Flanges
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A182 F22 | 0.05 - 0.15 | 0.3 - 0.6 | 0.5 | 0.03 | 0.045 | 0.8 - 1.25 | 0.044 - 0.65 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 380 | 585 | 20 % |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A182 F22 | 205 | 415 | 20 |
| ASME/ANSI B 16.5 | Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Welding Neck Flange, Blind Flange [Series A & B] |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange, Slip on Flange, Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Application
Oil and Gas Pipeline
Chemical Industry
Plumbing
Heating
Fabrication Industry
Structural Pipe
High Temperature Pressure equipment
