Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | UNS N04400 |
| Minimum Order Quantity: | 500kgs |
|---|---|
| Price: | negotiation |
| Packaging Details: | PLYWOOD CASE,PALLET |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C at sight |
| Supply Ability: | 1000tons/month |
| TYPE: | LWN | SIZE: | 1/2" TO 48" |
|---|---|---|---|
| WT: | Sch10s To XXS | STANDARD: | ASTM B564 |
| Material: | UNS N04400, MONEL 400 | Package: | Wooden Case / Wooden Pallet(big Size) |

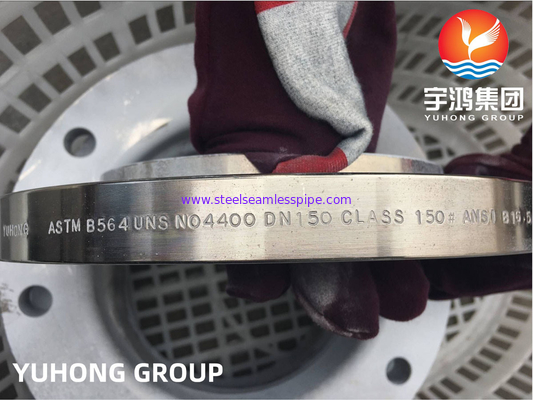

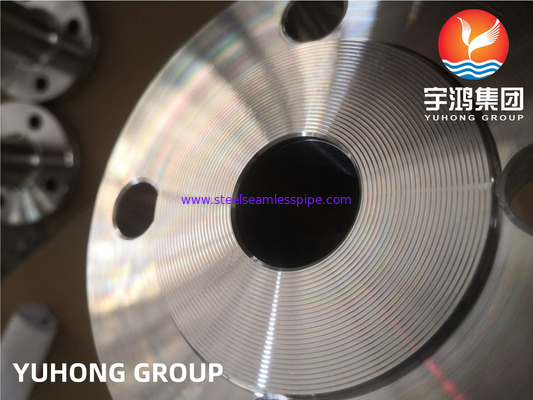

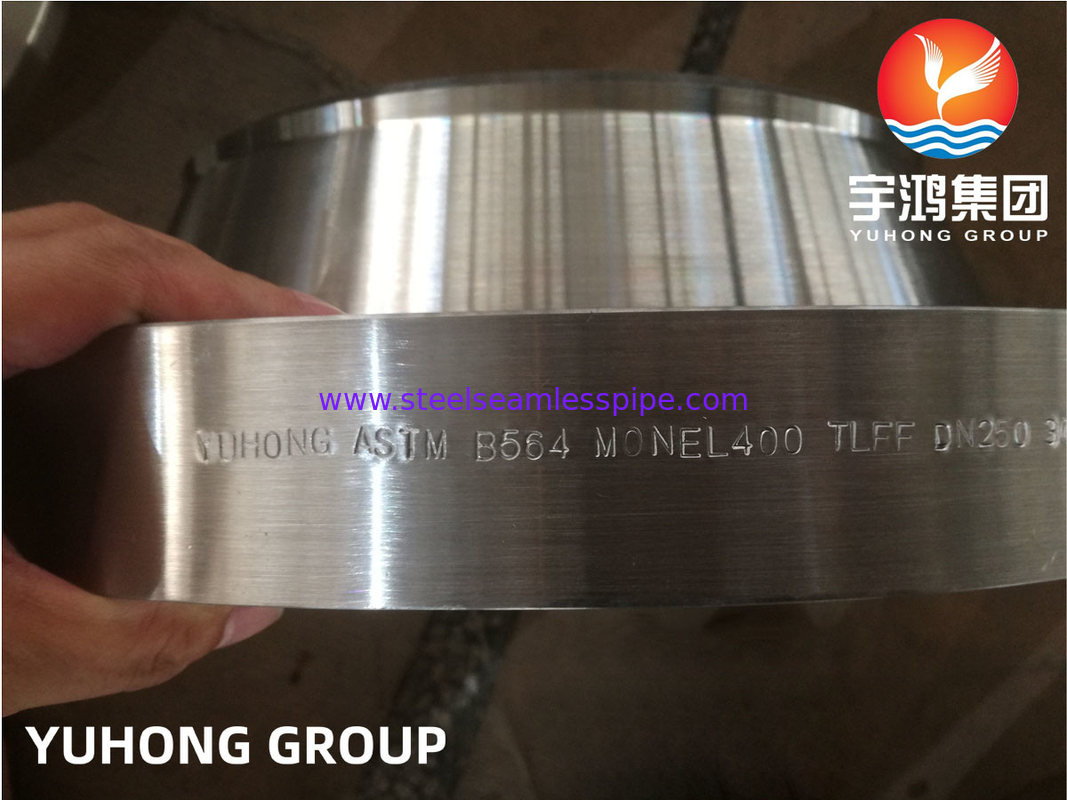

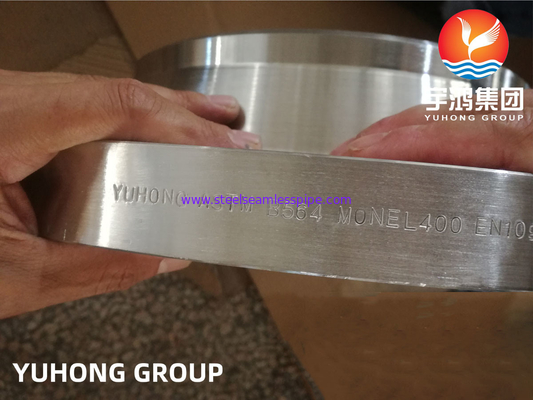

What is monel 400 Flange?
Alloy 400 is highly regarded as one of the best performing engineering alloys. In addition to its excellent corrosion resistance, the primary corrosion resistance of Monel 400 flanges is best suited for use in alkylation units. Concentrated acids, such as hydrofluoric acid and sulfuric acid, are used in these units in the petrochemical industry to convert olefins into alkyl compounds.
MATERIAL COMPOSITION:made of UNS N04400 material, Monel 400, a copper-nickel alloy containing approximately 67% nickel and 30% copper, with small amounts of iron, manganese, and silicon.
Properties: Monel 400 has good corrosion resistance, including resistance to seawater, salt water, acidic and alkaline environments. It also has good mechanical properties, high temperature strength and excellent wear resistance.
Processability: Monel 400 is easy to machine and weld, and can be molded and machined in a variety of ways.
Chemical Composition of ASTM B564 MONEL 400
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
Mechanical Properties of ASTM B564 MONEL 400
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
Equivalent Grades of ASTM B564 MONEL 400
| WERKSTOFF NR. | UNS | AFNOR | GOST | JIS | EN | BS |
| 2.4360 | N04400 | NU-30M | МНЖМц 28-2,5-1,5 | NW 4400 | NiCu30Fe | NA 13 |
| Ni | Al | S | C | Mn | Fe | Si | Cu |
| 63.0 min | 0.50 max | 0.02 max | 0.3 max | 2.0 max | 1.0 - 2.5 | 0.5 max | 28.0 - 34.0 |
Application
Oil and gas
Chemical industry
Petrochemical Industry
Plant engineering
marine engineering
Heat exchanger
