| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, LR, GL, DNV, NK, TS, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | Stainless Steel Shaped Steel Tube |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Packaging Details: | Ply-wooden Case /Iron Case |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C, T/T |
| Product Name: | Stainless Steel Seamless Tube | Material: | TP304/304L/304H/316L/309S/310S/316L/316H/317H/321, Etc. |
|---|---|---|---|
| Shape: | Half Circles , Oval , Squares , Rectangles | O.D.: | 1/2" |
| W.T.: | SCH 5S | Length: | Can Custom |
| End: | Plain Ends / Beveled Ends | Type: | Seamless / Welded |
| Surface: | Pickled And Annealed | ||
| High Light: | Stainless Steel 304 Rectangular Tube,Special Shape Stainless Steel Seamless Tube,Pickled Annealed Seamless Steel Tube |
||

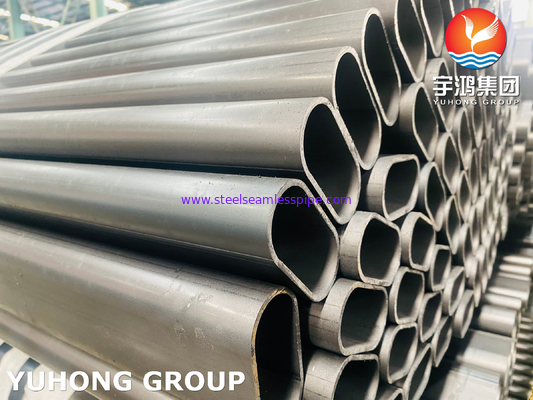

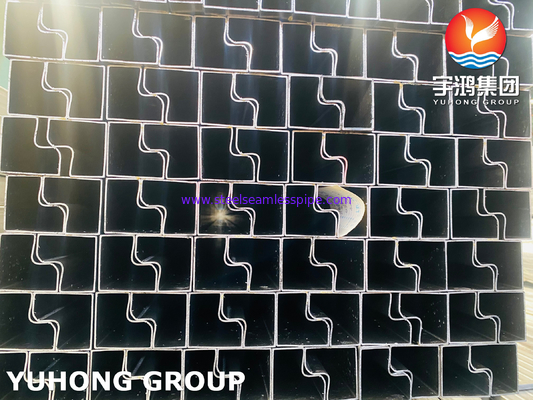

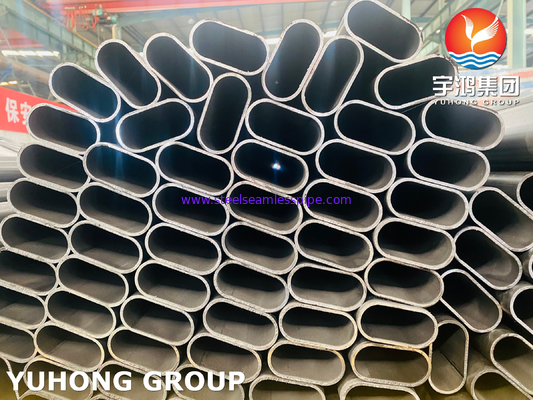

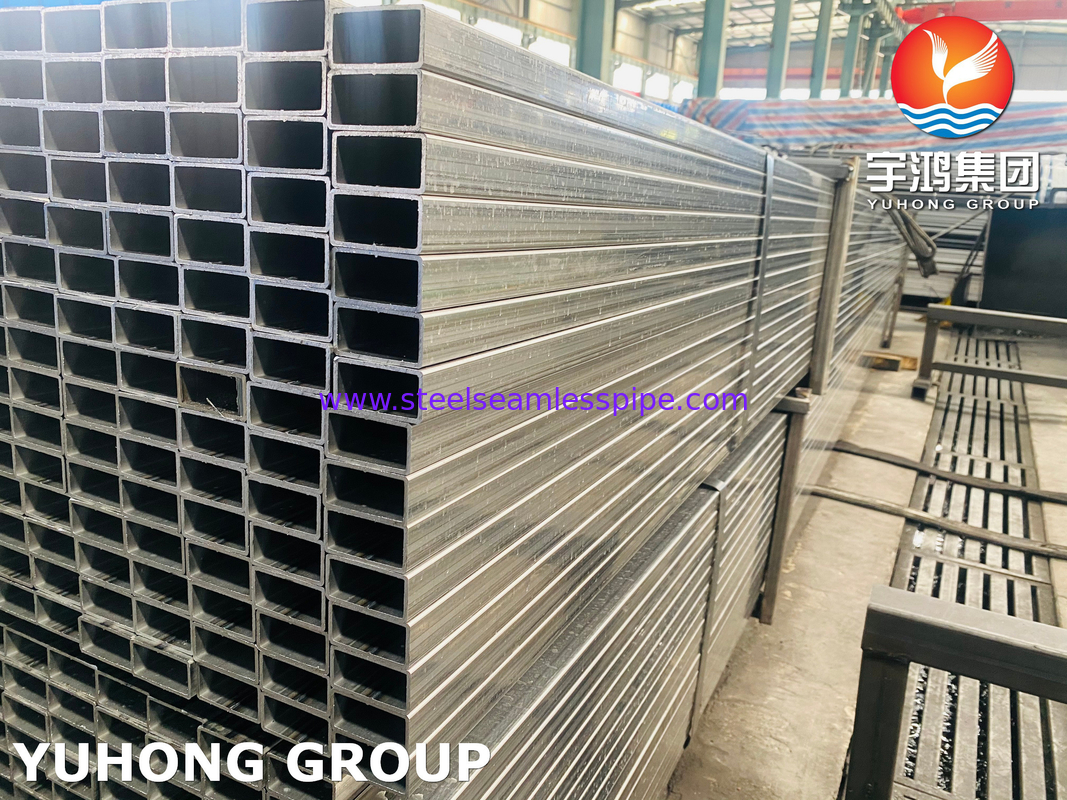

Special Shape Steel Tube Stainless Steel 304 Seamless Tube
Special-shaped seamless steel tube is a general term for seamless steel tubes with other cross-sectional shapes other than round tubes. Shaped tubes are more economical. Including non-circular cross-sectional profile, constant wall thickness, variable wall thickness, variable diameter and wall thickness along the length direction, symmetrical and asymmetric cross-section, etc. Such as square, rectangle, cone, trapezoid, spiral, etc. The special-shaped steel pipe can better adapt to the particularity of the conditions of use, save metal and improve the labor productivity of parts manufacturing. It is widely used in aviation, automobile, shipbuilding, mining machinery, agricultural machinery, construction, textile and boiler manufacturing. The methods of producing special-shaped pipes include cold drawing, electric welding, extrusion, hot rolling, etc. Among them, the cold drawing method has been widely used.
Standard Specification
ASTM A213 / A213M-11a:Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
ASTM A269 - 10:Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
ASTM A312 / A312M - 12:Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A511 / A511M - 12:Standard Specification for Seamless Stainless Steel Mechanical Tubing
ASTM A789 / A789M - 10a:Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service
ASTM A790 / A790M - 11:Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
DIN 17456-2010:GENERAL PUROSE SEAMLESS CIRCULAR STAINLESS STEEL TUBES.
DIN 17458-2010:Seamless Circular of Austenitic Stainless Steel Tube
EN10216-5 CT 1/2 : Stainless Steel Seamless Pipe & Tube
GOST 9941-81:SEAMLESS COLD- AND WARM-WORKED TUBES MADE OF CORROSION RESISTANT STEEL.
Others like BS, JIS standard or can supply
Material Grade
| American Standard |
Austenitic Steel: TP304,TP304L,TP304H, TP304N, TP314,TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… Duplex Steel : S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439,... |
| Europen Standard | 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501,1.4841 |
| GOST Standard | 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
Depending on requirements detailed by the customer, shaped tubing can be made stronger in some directions in a similar manner to the concept of an I-beam. All tubing drawn into shapes has to be formed through custom manufactured dies and subsequently straightened though specially formed tooling for straightening profiled tubing.
Application
Frequently, applications involve some type of stainless steel support for a product, a path or race for fiberoptics or other smaller components, or a dispensing application. Shaped seamless steel pipes are widely used in various structural parts, tools and mechanical parts. Compared with the round tube, the special-shaped tube generally has a larger moment of inertia and section modulus, and has a larger bending and torsion resistance, which can greatly reduce the structural weight and save steel.
