Place of Origin: | CHINA |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | ASTM B165/ UNS NO4400 |
Minimum Order Quantity: | 1 PC |
---|---|
Price: | 1-100000 USD |
Packaging Details: | Bundle/Ply Wooden Case |
Delivery Time: | 5-60 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000 tons/month |
Product: | SMLS Tube | Standard: | ASTM B165 |
---|---|---|---|
Grade: | UNS NO4400 | Material: | Nickel Alloy |
Shape: | Round/Square/Rectangle | Length: | 6 Meters Or Customized |
Testing: | ET, HT, Flattening Test; Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination; Tension Testing. | Package: | Standard Seaworthy Package |
High Light: | Monel 400 Seamless Tube,ASTM B165 Seamless Tube,SMLS Round Nickel Alloy Tube |

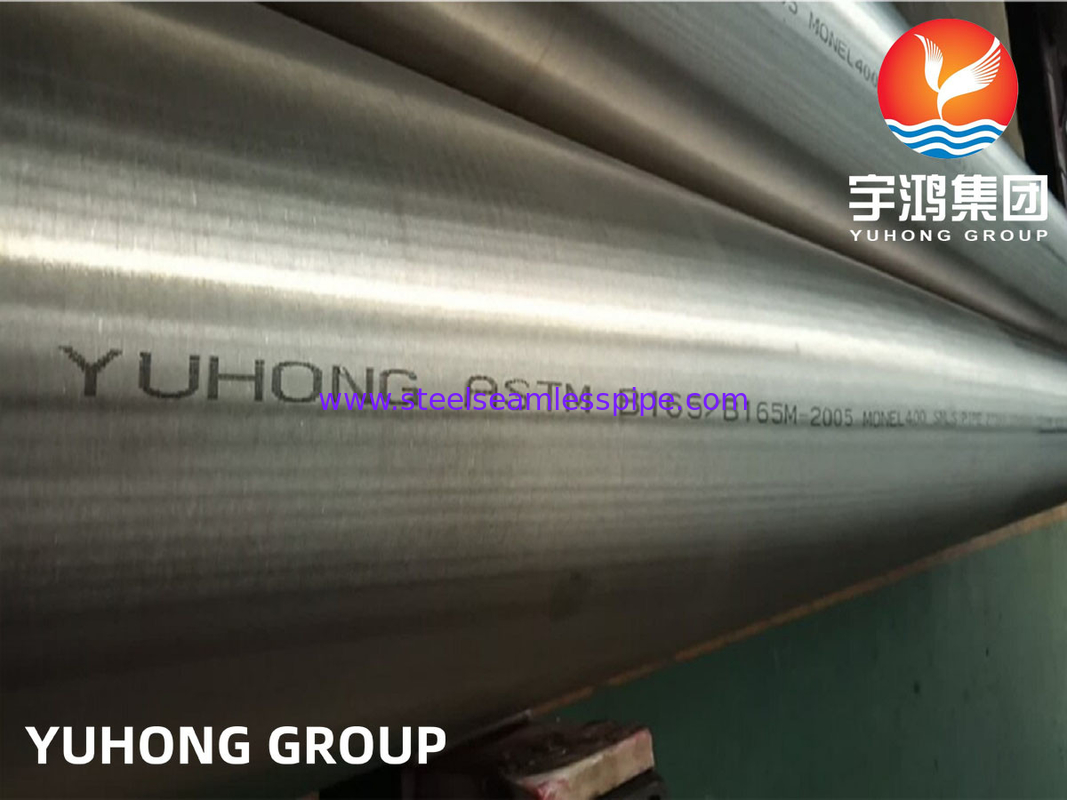

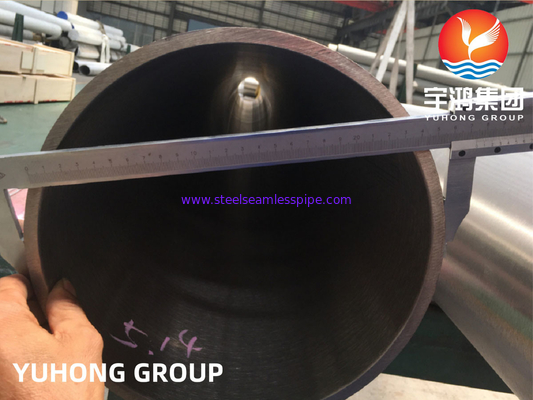

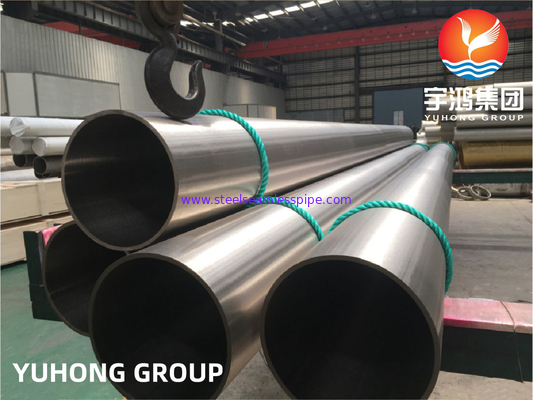

ASTM B165 UNS N04400 Monel 400 Nickel Alloy Seamless Tube
A solid solution alloy, Monel 400 is an alloy that exhibits superior resistance to the marine environment. This is an alloy that can only be strengthened by cold working. Cold-worked Alloy 400 tubing, produced to the ASTM B165 specification, is available in seamless or welded construction.
Nickel-based ASME SB 165 UNS N04400 exhibits a lower corrosion rate in fast-flowing brackish/saline water or seawater, as well as in steam at elevated temperatures. In the presence of caustic solutions, the resilience of a Monel pipe is amazing.
Additionally, exhibiting excellent corrosion resistance properties makes this alloy grade ideal for applications in various freshwater sources. Therefore, Monel 400 Pipe is used in chemical processes and marine environments.
Specification Of ASTM B165 UNS NO4400 SMLS Tube
Standards | ASTM B165/ ASME SB165, ASTM B730/ ASME SB730 UNS 4400 Tubing |
Size | 3.35 mm OD To 101.6 mm OD |
Inconel WERKSTOFF NR. 2.4360 Tube wall thickness | 0.020" –0.220", (special wall thicknesses available) |
Length | Single Random, Double Random, Standard & Cut length Tube |
Inconel WERKSTOFF NR. 2.4360 Tubing Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
Form | ‘U’ bent, Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Etc |
Types of 400 Alloy Tubing | Seamless, ERW, EFW, Welded, Fabricated Tube / Tubing |
400 Alloy Tube End | Plain End, Beveled End, Treaded Tube |

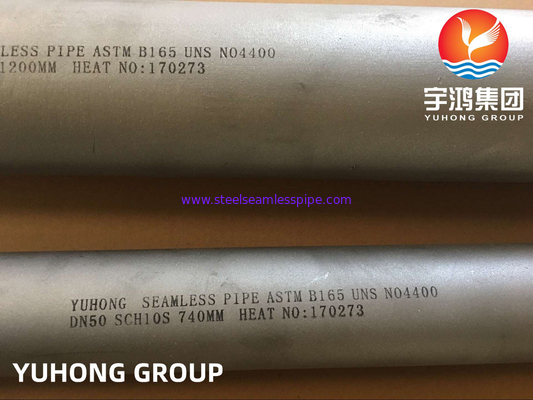

Marking | All ASTM B163 Monel 400 Tubing are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
Application & uses of Monel 400 Tube | Oil Tube, Gas Tube, Fluid Tube, Boiler Tube, Heat exchanger Tube, |
Value Added Service | Cutting,Beveling,Threading,Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
Specialize in | ASTM B165 Monel 400 Capillary Tube & Other Odd Size |
Monel NCF 400 Heat Exchanger & Condenser Tube | |
Test Certificate | Manufacturer Test Certificate |
Laboratory Test Certificate from Govt. Approved Lab. | |
Under Third Party Inspection | |
We can also cut, thread, and groove Monel NCF 400 Tube to meet your specifications. Monel 400 Tube Dimension ANSI/ ASME B36.10, B36.19, B2.1 |
Wall Thickness Of ASTM B165 UNS NO4400 SMLS Tube
Types of Monel 400 Tube | Out diameter (OD) | Wall thickness | Length |
NB Sizes (in stock) | 1/8” ~ 8” | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Upto 6 Meters |
Monel 400 Seamless Tube (Custom Sizes) | 5.0mm ~ 203.2mm | As per requirement | Upto 6 Meters |
Monel 400 Welded Tube (in Stock + Custom Sizes) | 5.0mm ~ 1219.2mm | 1.0 ~ 15.0 mm | Upto 6 Meters |
Chemical Composition Of ASTM B165 UNS NO4400 SMLS Tube
Element | Content, % |
Nickel [Ni] | ≥63.0 |
Copper [Cu] | 28.0~34.0 |
Iron [Fe] | ≤2.50 |
Manganese [Mn] | ≤2.00 |
Carbon [C] | ≤0.30 |
Silicon [Si] | ≤0.50 |
Sulfur [S] | ≤0.024 |
Mechanical Properties Of ASTM B165 UNS NO4400 SMLS Tube
Condition & Size | Tensile Strength, min.ksi [MPa] | Yield Strength, min.ksi [MPa] | Elongation,min. % |
*A | 70 [480] | 28 [195] | 35 |
*B | 70 [480] | 25 [170] | 35 |
*C | 85 [585] | 55 [380] | 15 |
