Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B167/ UNS NO6600 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Bundle/Ply Wooden Case |
| Delivery Time: | 5-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 tons/month |
| Product: | SMLS Tube | Standard: | ASTM B167 |
|---|---|---|---|
| Grade: | UNS NO6600 | Material: | Nickel Alloy |
| Shape: | Round/Square/Rectangle | Length: | 6 Meters Or Customized |
| Testing: | ET, HT, Flattening Test; Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination; Tension Testing. | Package: | Standard Seaworthy Package |
| High Light: | Monel 600 Nickel Alloy Seamless Tube,ASTM B167 Seamless Nickel Alloy Pipe |
||

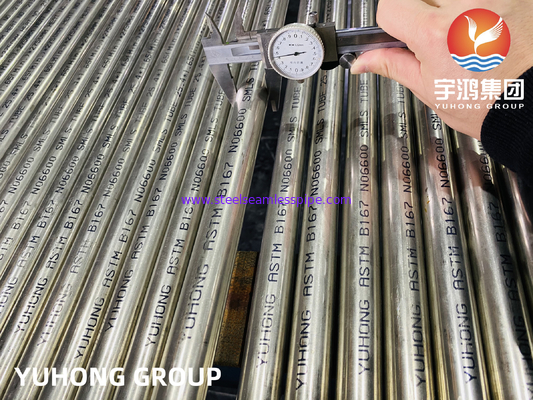

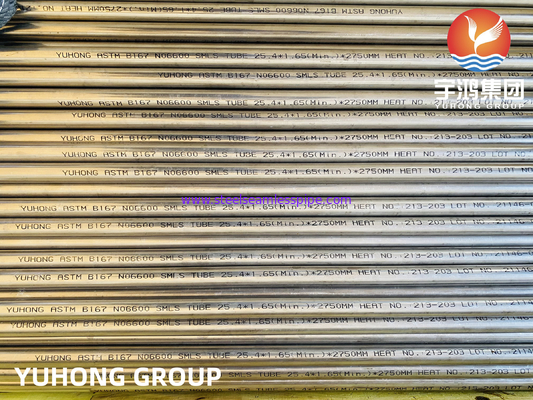

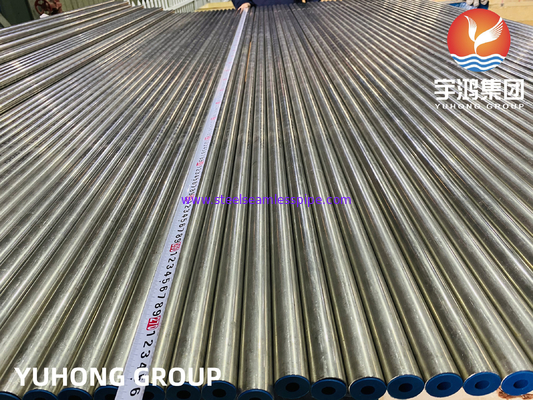

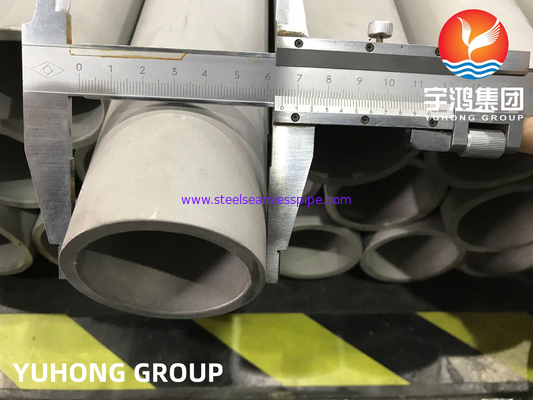

ASTM B167 Inconel UNS NO6600 Monel 600 Nickel Alloy Seamless Tube
Inconel 600 is a nickel-chromium alloy with good oxidation resistance at higher temperatures, with good resistance in carburizing and chloride containing environments.
Inconel 600 is a nickel-chromium alloy designed for use from cryogenic to elevated temperatures in the range of 2000 deg F(1093 deg C). The high nickel content of the alloy enables it to retain considerable resistance under reducing conditions and makes it resistant to corrosion by a number of organic and inorganic compounds. The nickel content gives it excellent resistance to chloride-ion stress-corrosion cracking and also provides excellent resistance to alkaline solutions.
Its chromium content gives the alloy resistance to sulfur compounds and various oxidizing environments. The chromium content of the alloy makes it superior to commercially pure nickel under oxidizing conditions. In strong oxidizing solutions like hot, concentrated nitric acid, 600 has poor resistance. Alloy 600 is relatively un-attacked by the majority of neutral and alkaline salt solutions and is used in some caustic environments. The alloy resists steam and mixtures of steam, air and carbon dioxide.
Specification Of ASTM B167 UNS NO6600 SMLS Tube
| Standards | ASTM B167/ ASME SB167, ASTM B730/ ASME SB730 UNS 4400 Tubing |
| Size | 5 mm OD To 203.2 mm OD |
| Inconel WERKSTOFF NR. 2.4360 Tube wall thickness | 0.020" –0.220", (special wall thicknesses available) |
| Length | Single Random, Double Random, Standard & Cut length Tube |
| Inconel WERKSTOFF NR. 2.4360 Tubing Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Form | ‘U’ bent, Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Etc |
| Types of 400 Alloy Tubing | Seamless, ERW, EFW, Welded, Fabricated Tube / Tubing |
| 400 Alloy Tube End | Plain End, Beveled End, Treaded Tube |
| Marking | All ASTM B163 Monel 600 Tubing are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application & uses of Monel 400 Tube | Oil Tube, Gas Tube, Fluid Tube, Boiler Tube, Heat exchanger Tube, |
| Value Added Service | Cutting,Beveling,Threading,Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Specialize in | ASTM B165 Monel 400 Capillary Tube & Other Odd Size |
| Monel NCF 400 Heat Exchanger & Condenser Tube | |
| Test Certificate | Manufacturer Test Certificate |
| Laboratory Test Certificate from Govt. Approved Lab. | |
| Under Third Party Inspection | |
| We can also cut, thread, and groove Monel NCF 400 Tube to meet your specifications. Monel 400 Tube Dimension ANSI/ ASME B36.10, B36.19, B2.1 | |
Wall Thickness Of ASTM B167 UNS NO6600 SMLS Tube
| Types of Monel 600 Tube | Out diameter (OD) | Wall thickness | Length |
| NB Sizes (in stock) | 1/8” ~ 8” | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Upto 6 Meters |
| Monel 600 Seamless Tube (Custom Sizes) | 5.0mm ~ 203.2mm | As per requirement | Upto 6 Meters |
| Monel 600 Welded Tube (in Stock + Custom Sizes) | 5.0mm ~ 1219.2mm | 1.0 ~ 15.0 mm | Upto 6 Meters |
Chemical Composition Of ASTM B167 UNS NO6600 SMLS Tube
| Element | Content, % |
| Nickel [Ni] | 72 Max |
| Copper [Cu] | 0.5 Max |
| Iron [Fe] | 6-10 |
| Manganese [Mn] | 1 Max |
| Carbon [C] | 0.15 Max |
| Silicon [Si] | 0.5 Max |
| Sulfur [S] | 0.015 Max |
Mechanical Properties Of ASTM B167 UNS NO6600 SMLS Tube
| Properties | Metric | Imperial |
| Density | 8.47 g/cm³ | 0.306 lb/in³ |
| Melting point | 1399°C | 2550°F |
