Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, BV, LR, DNV-GL, KR, CCS , TS, GOST, CCS, TUV, PED |
| Model Number: | ASTM B366 C22 |
| Minimum Order Quantity: | 10 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 5-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 tons/month |
| Product: | Pipe Fittings- Elbows | Material: | Alloy Steel |
|---|---|---|---|
| Standard: | ASTM B366 | Grade: | C22 |
| Type: | Seamless / ERW / Welded / Fabricated /Forged | Packaging: | PLY-WOODEN CASE OR PALLET |
| High Light: | Curvas Steel Pipe Elbow,Hastelloy C22 Alloy Steel Pipe Fittings,Alloy Steel Pipe Elbows |
||

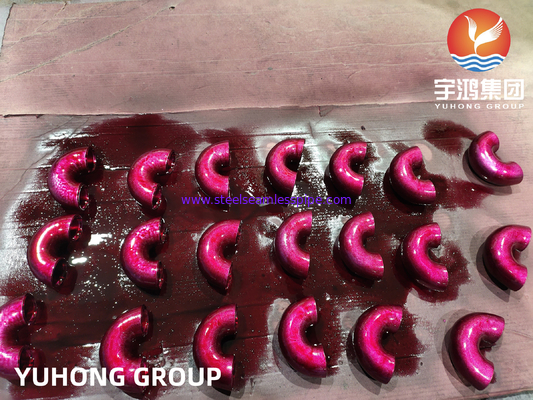

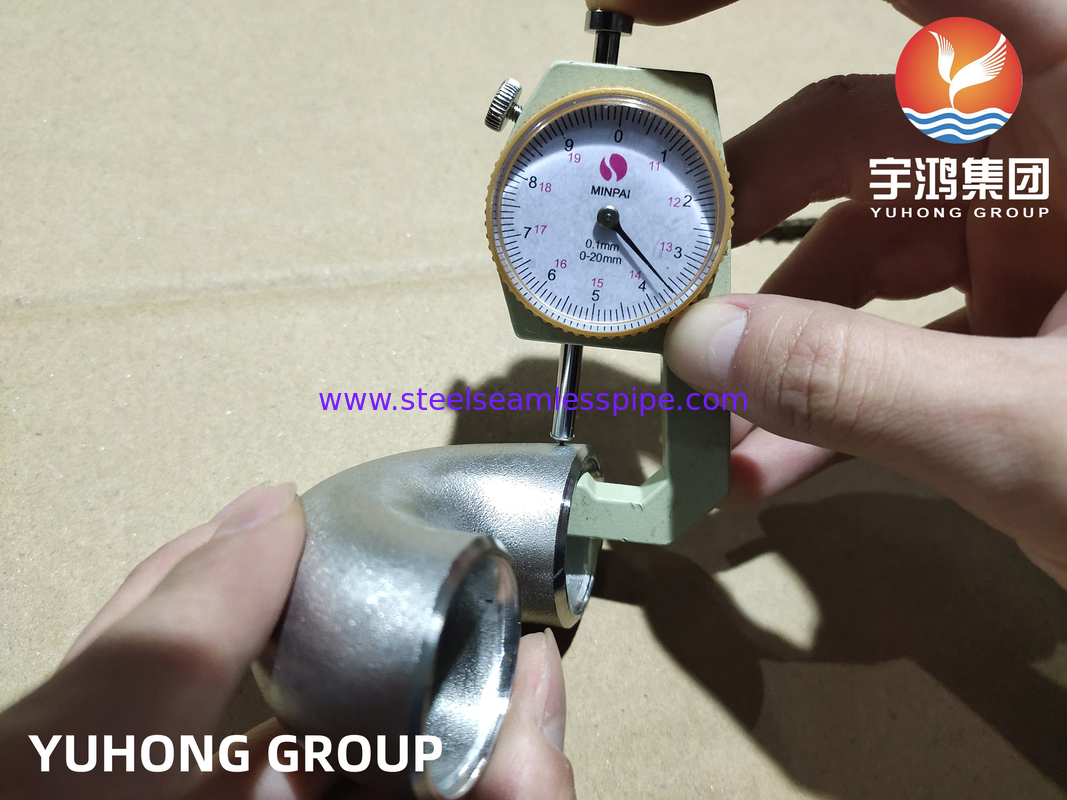

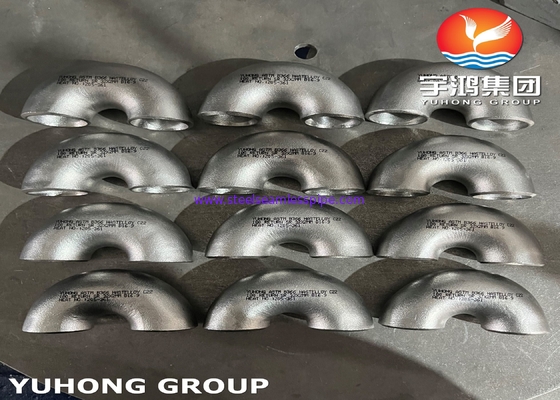

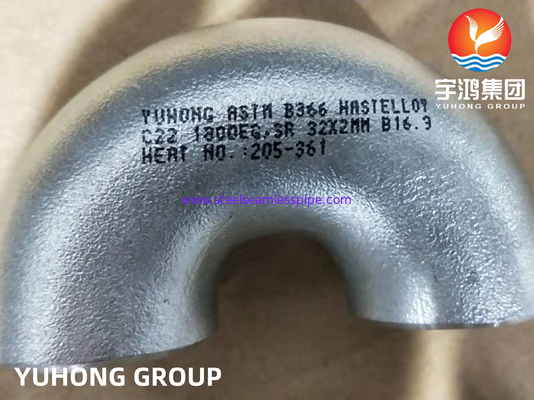

ASTM B366 Hastelloy C22 Alloy Steel Elbows Codos
YUHONG supplies ASTM B366 Hastelloy C22, it is a omnipotent of nickel, chromium and molybdenum mixed alloy, with better corrosion resistance performance than other alloys. Hastelloy C22 have a good resistance performance to pitting, crevice corrosion and stress corrosion cracking, have excellent inoxidability water medium performance, including the wet-chlorine, nitric acid or oxidizing acid mixed acid with chloride ion.
Meantime, Hastelloy C22 possesses perfect resistance to reduction and oxidation of processing enviroments, then it can be used in some complicated environment or with many different manufacture target factory depend on the omnipotent performance.
Hastelloy C22 also possess prominent resistance performance to different chemical environments, including strong oxidizing matter, such as iron chloride, copper chloride, chlorine, heat pollution liquid(organic and inorganic), formic acid, acetic acid, acetyl oxide, sea water and salting liquid and so on.
Hastelloy C22 alloy can resist the grain boundary precipitate form when jointing heat affected zone, this performance made it can applied in many kinds of chemical processing.
Specification Of ASTM B366 Hastelloy C22 Elbows
| Schedule | Schedule 5 TO Schedule XXS. |
| Size | Normal Pipe Size (NPS) 1⁄₂ to Normal Pipe Size (NPS) 48” |
| Standard | EN, ISO, DIN, JIS, NPT |
| Type | Elbow, Stub End, Bend, Tee, Reducer, Cap, Adapter, Wye, Cross, |
| Connection Type | Threaded/ Clamp End / End Bell / Weld/ Flange/ |
| Type | Butt Weld (BW), Seamless (SMLS) Welded |
| Surface Treatment | Sand Blasting, Sand Rolling, Sand Blasting |
| Thickness | Sch 5S, 20S, S10, S20, S30, 10S, S80, S100, S120, STD, 40S, S40, S60, XS, 80S, S140, S160, XXS and etc. |
| Type Of Dimension | BS1640, EN 10253 - 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Surface Treatment | Transparent oil, rust-proof black oil or hot galvanized |
Chemical Composition Max ASTM B366 Hastelloy C22
| Ni % | Cr % | Mo % | Fe % | W % | Co % | C % | Mn % | Si % | V % | P % | S % |
| balance | 20-22.5 | 12.5-14.5 | 2-6 | 2.5-3.5 | 2.5 | 0.015 | 0.5 | 0.08 | 0.35 | 0.02 | 0.02 |
Mechanical & Physical Property ASTM B366 Hastelloy C22
| Density | 8.69 g/cm3 |
| Melting Point | 1399 °C (2550 °F) |
| Tensile Strength | ksi – 100 , MPa – 690 |
| Yield Strength (0.2%Offset) | ksi – 45 , MPa – 310 |
| Elongation | 45% |
Application
Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc.
