Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B407 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 5-65 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000tons/month |
| Product: | Seamless Tube | Material: | Nickel Alloy Steel |
|---|---|---|---|
| Standard: | ASTM B407 | Grade: | UNS NO8811 |
| Type: | Round | Packing Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Third Party Inspection: | BV,SGS,ASP | Length: | Up To 6 Meters |
| High Light: | ASTM B407 SMLS Tube,Random Nickel Alloy Pipe,Seamless Random Nickel Tube |
||

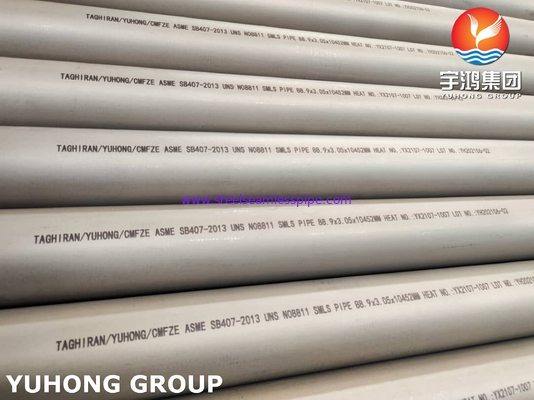

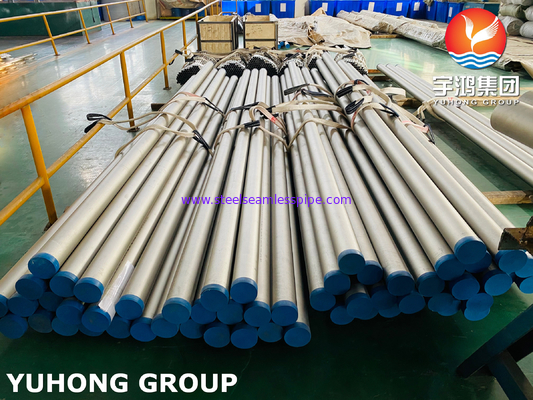

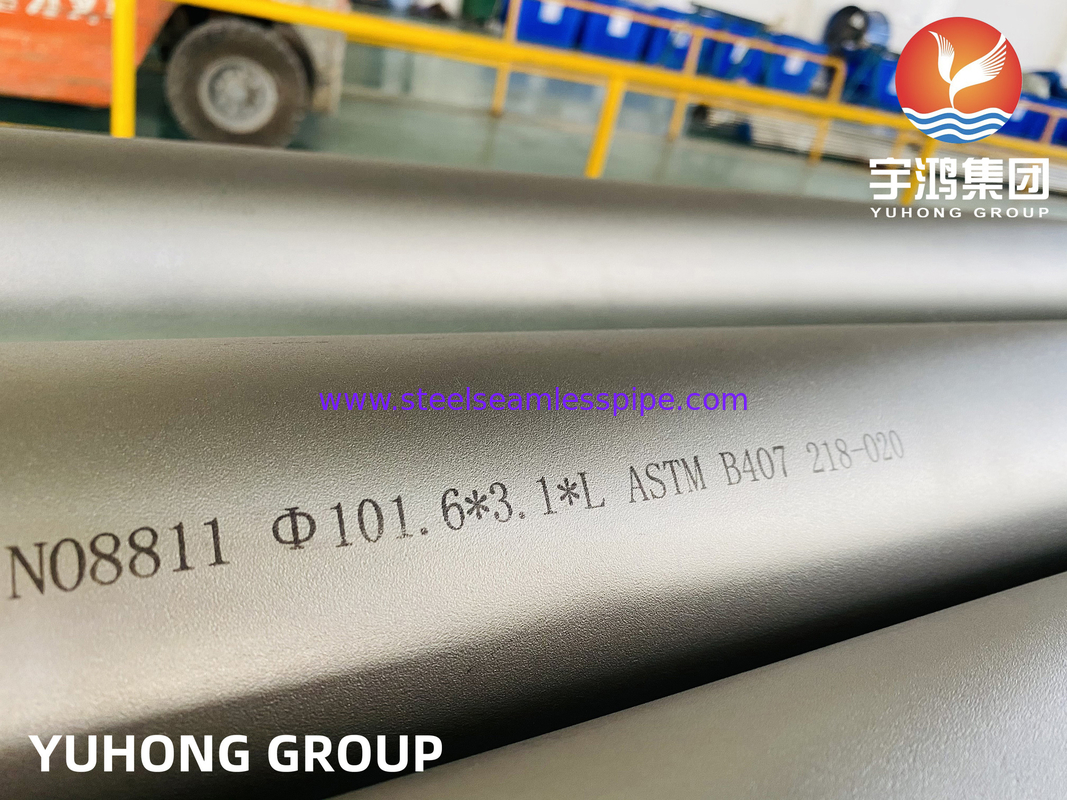

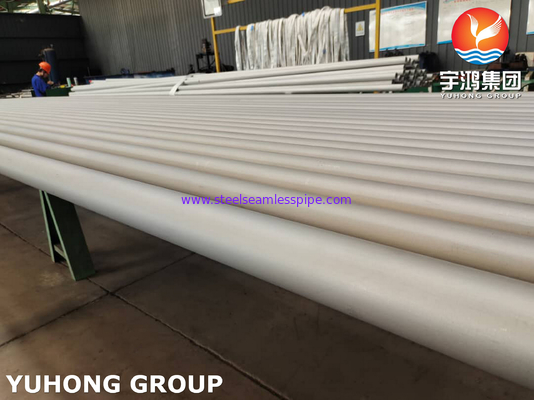

ASTM B407 UNS NO8811 Nickel Alloy Seamless Tube ,Tubo Aleación de Níquel
YUHONG supplies ASTM B407 UNS NO8811 Nickel Alloy SMLS Tube, the Incoloy 800HT material consists of nickel, iron, and chromium and is meant for high-temperature structural usage. The incoloy 800HT Tube has good strength, and they provide excellent corrosion resistance as well.
When exposed to high temperatures, the incoloy 800HT Tube shows excellent resistance to carburization and oxidation. The material is quite similar to other nickel alloys, except for the fact that it has a high carbon content, along with aluminum and titanium. The nickel content in the Alloy 800HT Tube makes it highly resistant to chloride stress corrosion and embrittlement. The Incoloy Alloy 800HT SMLS Tube in the annealed solution is known for its stress rupture and creep strength.
Specifications Of ASTM B407 UNS NO8811
| Dimensions | All Pipe is manufactured and inspected/tested to the relevant standards including ASTM, ASME, etc. | ||||
| Sizes | 1/2″NB TO 16" NB(seamless); 1/2″NB TO 24" NB(welded) | ||||
| OD Diameter | 6mm to 914mm | ||||
| Schedule | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules | ||||
| Testing |
Ultrasonic Test/Electric non-destructive testing/Flaring testing/Hydrostatic testing/Flattening testing/Visual surface inspection/Dimensional inspection,etc. |
||||
| Length | Mainly 6meter or required Length | ||||
| Wall Thickness | SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS DIN, JIS standard thickness | ||||
Chemical Composition Of ASTM B407 UNS NO8811
| Chemical Composition % | Cr | C | Cu | Fe | Ni | Mn | Si |
| 19.0-23.0 | 0.1max | 0.75max | 39.5min | 30.0-35.0 | 1.5max | 1.0max |
Mechanical Property Of ASTM B407 UNS NO8811
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 800 / 800H / 800HT | 7.94 g/cm3 | 1357-1385 °C | Psi – 87,000 , MPa – 600 | Psi – 43,000 , MPa – 295 | 44% |
Applications Industry
Calorifiers
Tank trucks
Propellor shafts
Industrial furnaces
Heat-treating equipment
Power station ash hoppers
Chemical and petrochemical processing
Pickling tank heaters, pickling tanks and equipment
Electrostatic precipitator electrodes,etc
