Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B514 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 5-65 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000tons/month |
| Product: | Welded Tube | Standard: | ASTM B514 |
|---|---|---|---|
| Grade: | UNS NO8800 / 800H | Material: | Nickel Alloy Steel |
| Type: | Round | Packing Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Third Party Inspection: | BV,SGS,ASP | Length: | Or As Required |
| High Light: | Welded Nickel Alloy Tube,800H Inconel Alloy Tube,ASTM B514 Nickel Alloy Tube |
||

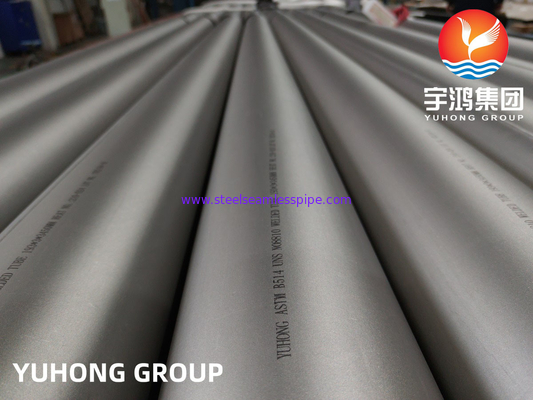

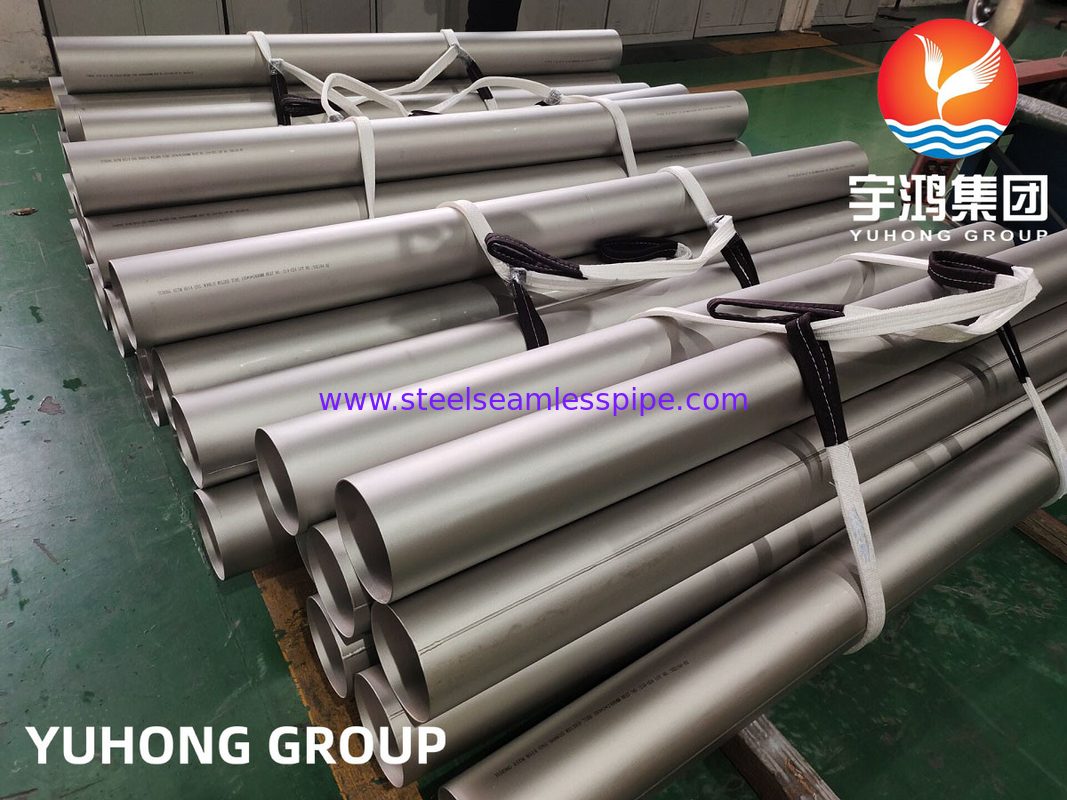

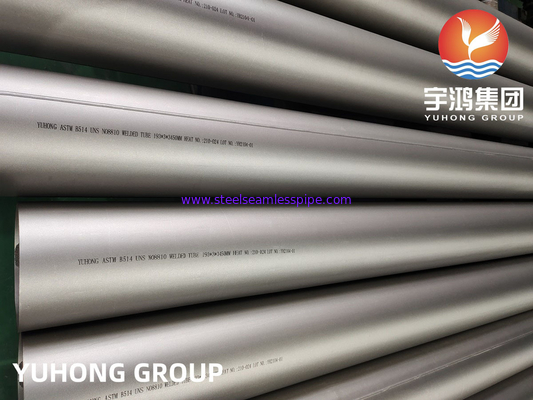

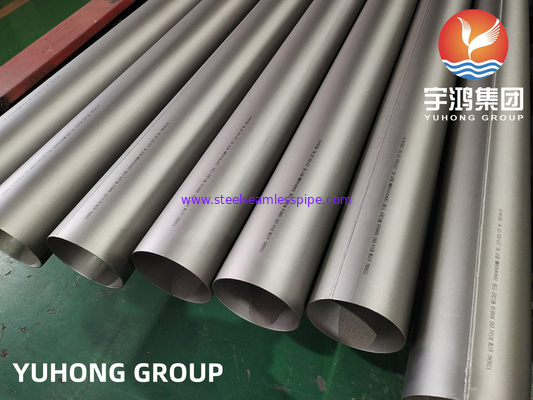

ASTM B514 800H Inconel Alloy Welded Tube , Tubo Aleación de Níquel
YUHONG supplies ASTM B514 UNS NO8800 / 800H Nickel Alloy Welded Tube, the Incoloy 800 material is a solid solution strengthened alloy of nickel, chromium and iron with small additions of aluminium and titanium. Incoloy 800H and Incoloy 800HT are developments of Incoloy 800, which give better performance at high temperature.
And Incoloy 800/800H/800HT are solid solution nickel chromium iron alloys with small additions of aluminium and titanium to improve corrosion and oxidation resistance. They are used for high temperature service, where resistance to oxidation and carburisation are required. What's more, The chromium and nickel contents of the alloy give excellent oxidation resistance, good resistance to carburisation and resistance to sulphidation at low concentrations of oxidising and reducing sulphur.
Specifications Of ASTM B514 UNS NO8800
| Dimensions | All Pipe is manufactured and inspected/tested to the relevant standards including ASTM, ASME, etc. | ||||
| Sizes | 1/2″NB TO 16" NB(seamless); 1/8″NB TO 24" NB(welded) | ||||
| OD Diameter | 5mm to 1219.2mm | ||||
| Schedule | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules | ||||
| Testing |
Ultrasonic Test/Electric non-destructive testing/Flaring testing/Hydrostatic testing/Flattening testing/Visual surface inspection/Dimensional inspection,etc. |
||||
| Length | Mainly 6meter or required Length | ||||
| Wall Thickness | SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS DIN, JIS standard thickness | ||||
Chemical Composition Of ASTM B514 UNS NO8800
| Chemical Composition % | Cr | C | Cu | Fe | Ni | Mn | Si |
| 19.0-23.0 | 0.1max | 0.75max | 39.5min | 30.0-35.0 | 1.5max | 1.0max |
Mechanical Property Of ASTM B514 UNS NO8800
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 800 / 800H / 800HT | 7.94 g/cm3 | 1357-1385 °C |
Psi –75000 MPa – 520 |
Psi – 30000 MPa – 205 |
30% |
Applications Industry
Marine Exhaust Systems
Gas Processing Industries
Industrial Furnaces
Heat-treating Equipment
Chemical and Petrochemical Processing
Super-heater and Re-heaters in Power Plants
Pressure Vessels
Heat Exchanger
Tank Trucks
