Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | UNS N08367,ALLOY 8367 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |

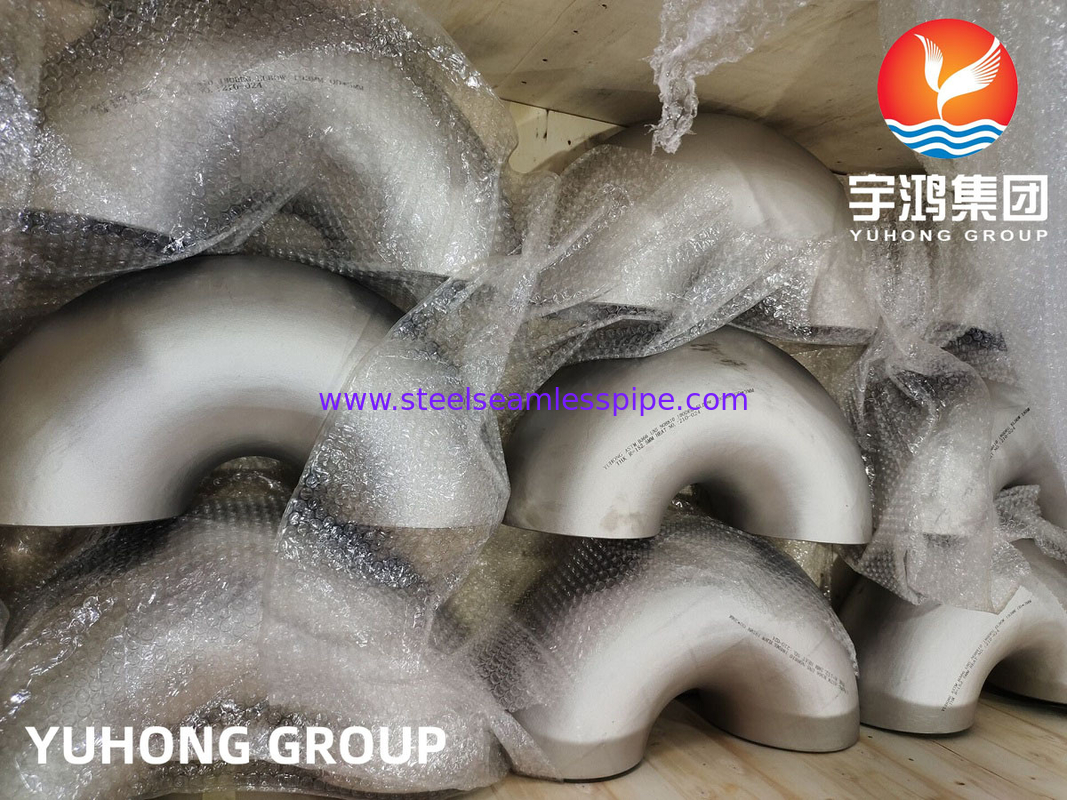

| Packaging Details: | PLY WOOD CASE,PALLET |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 pcs per month |
| Name: | Butt Weld Fittings Reducer Elbow | Shape: | Elbow |
|---|---|---|---|
| Technics: | Butt Weld | Material: | ALLOY 8367 |
| High Light: | AL6XN Butt Weld Fitting Elbow,Nickel Alloy Butt Weld Elbow,Nickel Alloy 90 Degree Elbow |
||

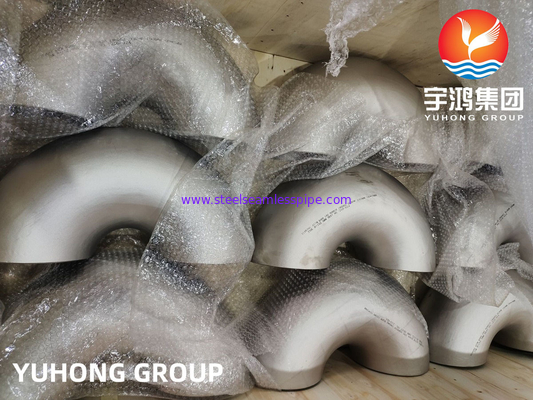

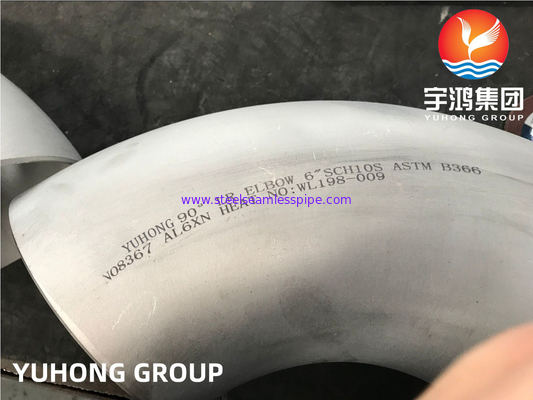

ASTM B366 AL6XN NO8367 Nickel Alloy Butt Weld Fitting 90Deg Elbow
Yuhong Group supply Boiler tube , Heat Exchange Tube, Air Cooling Tube , Condenser Tube more than 33 years , and our material grade contain Stainless Steel , Duplex Steel , Super Duplex Steel , Hastelloy , Monel , Inconel , Incoloy , Cr-Mo alloy , Copper alloy steel , and very year sell more than 80000 tons pipes and tubes to our client projects. And up to now we already export more than 55 countries. The pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.
What is AL6XN?
AL-6XN is an alloy made of nickel, chromium and molybdenum. The percentage of composition of these 3 elements in the alloy is as follows, Nickel 24%, Chromium 22% and Molybdenum 6.3%, with traces of other elements such as Nitrogen. AL6XN is a super austenitic stainless steel with low carbon and high purity. The UNS designation for this alloy is N08367.
AL-6XN shows a good resistance to chloride stress-corrosion cracking due to the high nickel and molybdenum contents. Because of the molybdenum content, it is also resistant to chloride pitting. The nitrogen content serves to further increase pitting resistance and also gives it higher strength than typical 300 series austenitic stainless steels, and thereby often allows it to be used in thinner sections. And the nitrogen content of AL6XN gives it a greater tensile strength than common austenitic stainless steels, while retaining high ductility and impact strength.
Stainless Steel AL-6XN Pipe Fittings Chemical Composition
| CR | NI | MO | C | N | MN | SI | P | S | |
| MIN | 20.00 | 23.50 | 6.00 | — | 0.18 | — | — | — | — |
| MAX | 22.00 | 25.50 | 7.00 | 0.25 | 2.00 | 1.00 | 0.04 | 0.03 | 0.75 |
ASME SB 366 UNS N08367 Buttweld Pipe Fittings Mechanical Properties
Representative Tensile and Impact Properties pipe fittings
|
Temp. °F (°C) |
Ult. Tensile Strength, psi |
.2% Yield Strength, psi |
Elongation in 2”, percent |
Charpy V-Notch Toughness, ft-lb |
|
-450 (-268) |
218,000 |
142,000 |
36 |
353* |
|
-320 (-196) |
196,000 |
107,000 |
49 |
85 |
|
-200 (-129) |
- |
- |
- |
100 |
|
70 (21) |
108,000 |
53,000 |
47 |
140 |
|
200 (93) |
99,900 |
49,400 |
47 |
- |
|
400 (204) |
903,000 |
40,400 |
46 |
- |
|
600 (316) |
86,000 |
36,300 |
47 |
- |
|
800 (427) |
87,000 |
36,000 |
48 |
- |
Equivalent Grades
|
STANDARD |
WERKSTOFF NR. |
UNS |
|
SSC-6MO / AL6XN |
- |
N08367 |
Typical Application Of AL6XN Pipe Fittings
· Chemical processing
· Oil and gas
· Desalination
· Water piping systems
· Transformer cases in marine environments
· Food processing equipment
· FGD scrubbers
· Reverse osmosis
· Heat exchangers
