| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | API , ABS, DNV, GL , LR, NK |
| Model Number: | ASTM B462 UNS N08367 Super Austenitic Stainless Steel |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 5-80 Days |
| Payment Terms: | L/C, T/T |
| Size: | 1/2"-120" | Application: | Petroleum,chemical,etc,fittings And Connection,beer |
|---|---|---|---|
| Process: | Forged | Connection Method: | RF/FF/RTJ |
| Pressure: | Class150/300/600/9001500/2500 | Type: | Threaded Flange,Slip On Flange,socket Weld Flange,weld Neck Flange,LAP Joint Flange |

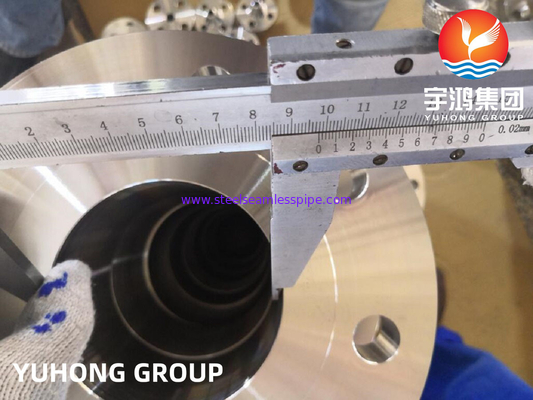

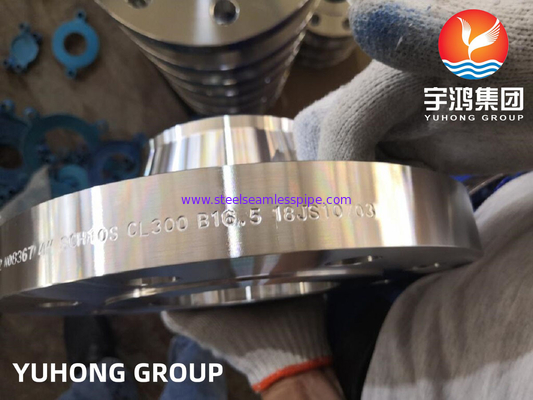

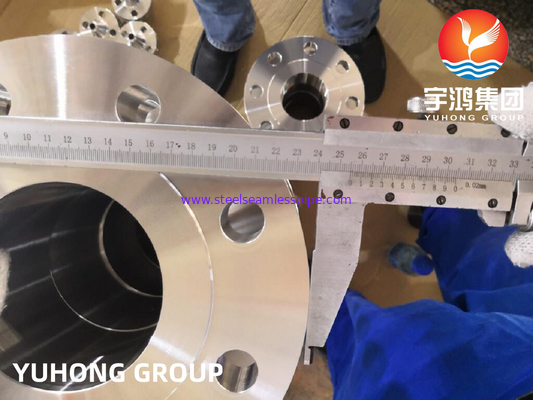

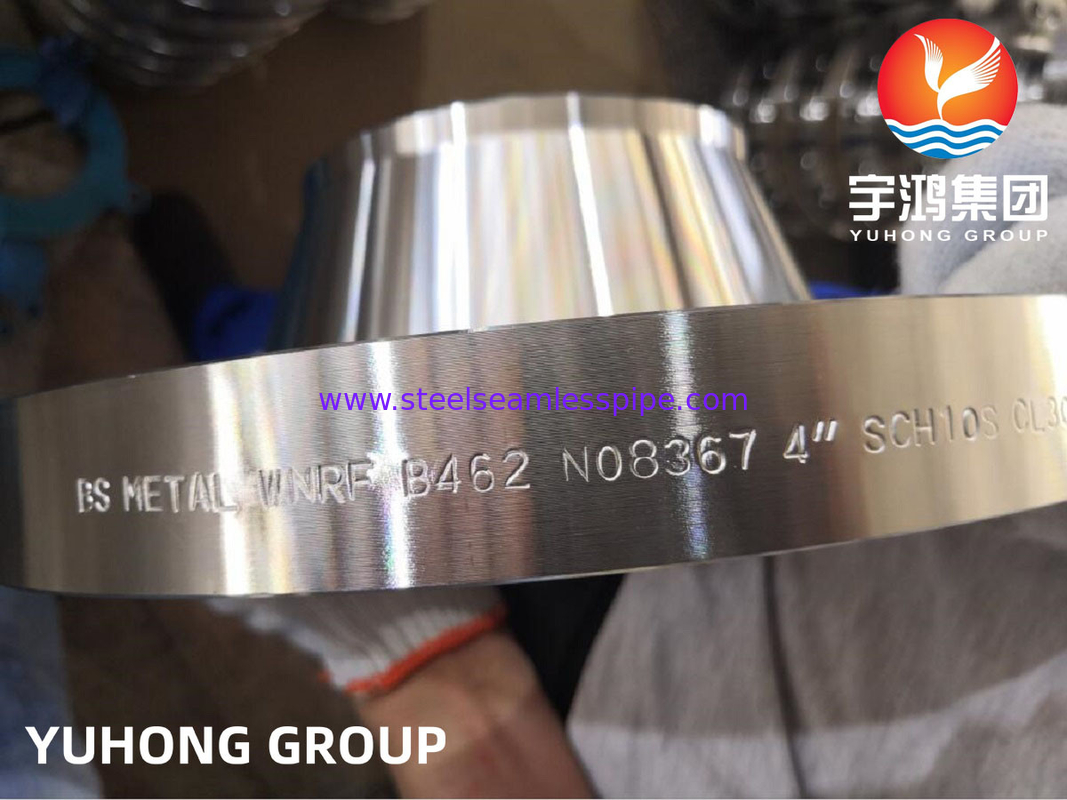

ASTM B462 UNS N08367 AL6XN Forged Stainless Steel Flange for Food Processing
YUHONG GROUP deal with stainless steel seamless pipe and tube already more than 33 years, every year sell more than 80000 tons of stainless steel seamless pipe and tube. Our client already cover more than 65 countries. Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.
Description
INCOLOY alloy 25-6HN is a 6% molybdenum super-austenitic stainless steel. It is an austenitic stainless steel alloy with high nickel (24%), chromium (22%), molybdenum (6%), and nitrogen (0.18%) content and is commonly known as superaustenitic stainless steel (alloys such as 254 SMO (UNS S31254) and 904L (UNS N08904) also fall under the superaustenitic designation) while 2205 (UNS S32305/ S31803) and 2507 (UNS S32750) are duplex and super duplex stainless steel, respectively. It offers an excellent combination of strength, ductility and resistance to corrosion by a variety of media at an economical price. It is readily formed and welded. The properties of the alloy are enhanced by its content of nitrogen. Its high content of nickel results in thermal stability and resistance to stress corrosion cracking. Designated as UNS N08367, alloy 25-6HN directly competes with Allegheny Ludlum alloy AL6XN®. The alloys are covered by the same ASTM, ASME, and NACE specifications. Applications are found in the air pollution control, power, chemical processing, marine, pulp and paper, and oil and gas industries. Alloy 25-6HN is a new addition to Special Metals existing line of high performance, super-austenitic stainless steels, INCOLOY alloys 25-6MO and 27-7MO.
Phsical Properties
| Melting Point | Density | Specific Gravity | Modulus of Elasticity in Tension |
| 1321 – 1393 ℃ | 8.06g/cm3 | 8.06 | 195 GPa |
Mechanical Properties
|
Alloy |
Tensile Strength, min ksi [MPa] |
Yield Strength, min ksi [MPa] |
Elongation in 2 in. or 50 mm, min, % |
Reduction of Area, min, % |
|---|---|---|---|---|
|
UNS N08020 |
95[655] |
45[310] |
30.0 |
50.0 |
Chemical Composition, %
|
Ni |
Cr |
Mo |
C |
N |
Mn |
Si |
P |
S |
Cu |
Fe |
|---|---|---|---|---|---|---|---|---|---|---|
|
23.5-25.5 |
20.00-22.00 |
6.00-7.00 |
0.03 Max |
0.18-0.25 |
2.0 Max |
1.00 Max |
.040 Max |
0.03 Max |
0.75 Max |
Remainder |
Applications
Components for chemical processing
manufacturing for offshore oil / gas platforms
pulp/paper production
desalination plants
marine application
flue gas scrubbers
food processing
