Yuhong Holding Group Co.,LTD
Place of Origin: | China, USA, Korea, UE |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | TP430Ti |
Minimum Order Quantity: | 1PC |
---|---|
Price: | negotiable |
Packaging Details: | Ply-wooden Case /Bundle |
Delivery Time: | Depends on quantity |
Payment Terms: | T/T, L/C |
Supply Ability: | 10000 tons per month |
Material Grade: | TP430Ti | Standard: | ASTM A268 |
---|---|---|---|
Type: | Seamless & Straight & U Bend & Coil | NDT: | ET, HT, UT |
W.T.: | 0.5 Mm-12mm | Size: | 6.25mm-203mm |
Length: | Single Random, Double Random & Cut Length. | Packing: | Ply-wooden Case /Iron Case/ Bundle |
Application: | Gas/food Processing/Chemical |

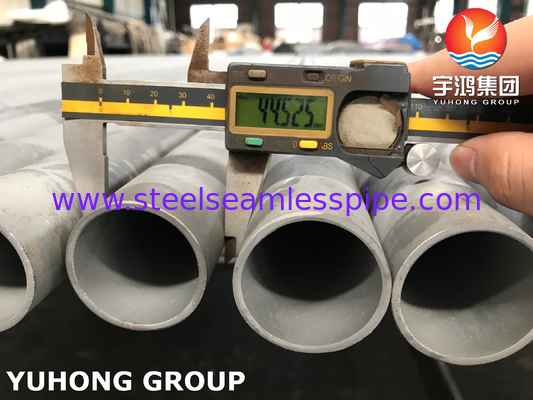

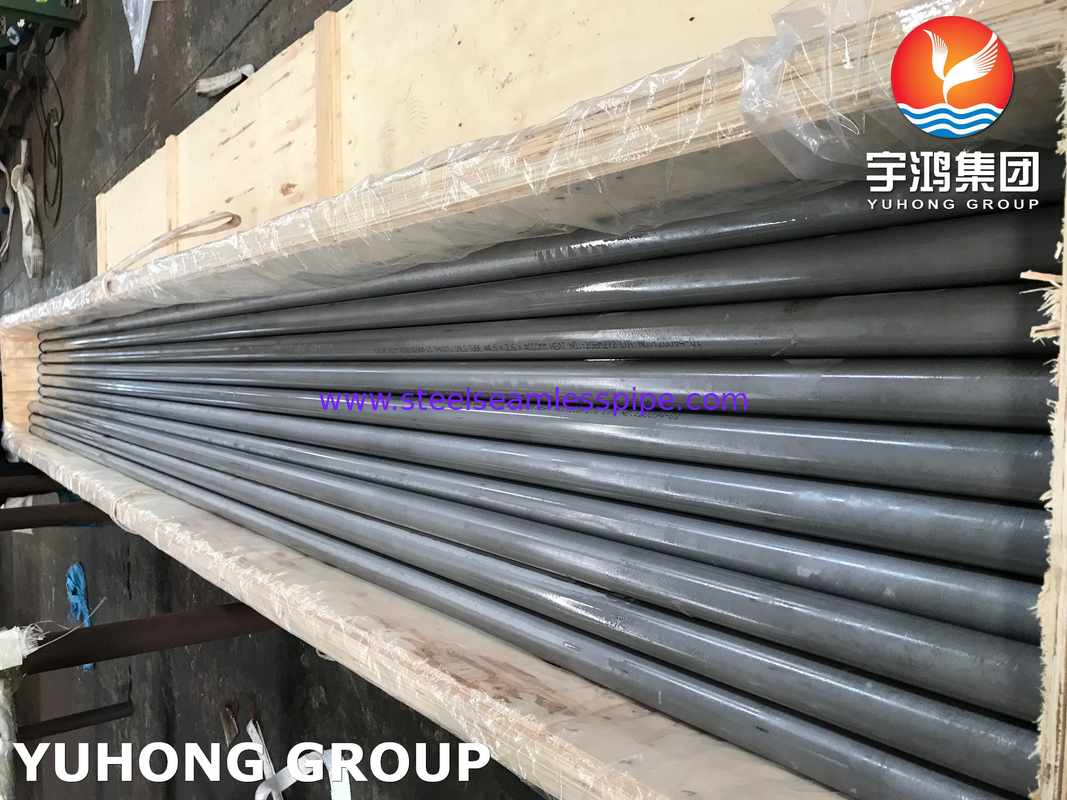

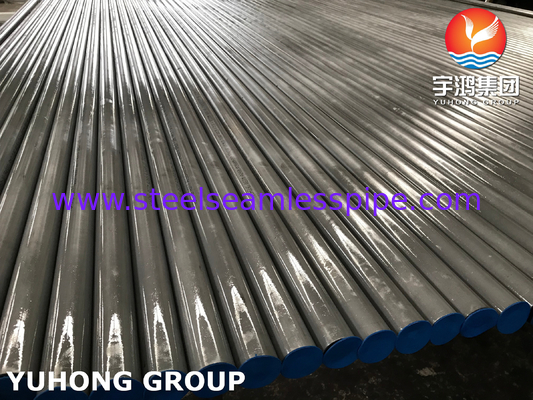

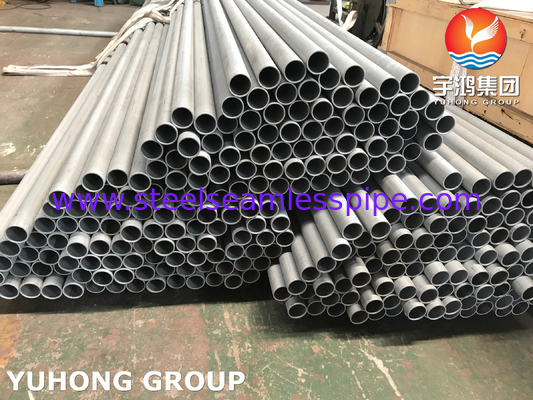

ASTM A268 TP430Ti Ferritic Stainless Steel Tube Petroleum Chemical Condense Heater
YUHONG GROUP deal with seamless steel pipe and tube already more than 33 years, every year sell more than 80000 tons of steel pipe and tube. Our client already cover more than 70 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France ...
Chemical Composition of ASTM A268 TP430Ti Stainless Steel Tube
Grade | C | Si | Mn | P | S | Cr | Ti | Ni |
TP430Ti, UNS S43036 | 0.10 max | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 25.0~27.5 | 5XC min, 0.75 max. | 0.75 max |
Mechanical Properties of A268 TP430Ti Stainless Steel Tube
Tensile strength Mpa, min | Yield strength Mpa, min | Elongation in 2'' %, min. |
415 | 240 | 20 |
Outside Diameter, In.[Mm] | OD Tolerance, In.[Mm] | Wall Thickness, % | Thin Wall Tubes |
---|---|---|---|
Up To1⁄2, [12.7], Excl | ±0.005 [0.13] | ±15 | |
1⁄2 To 11⁄2 [12.7 To 38.1], Excl/Td> | ±0.005 [0.13] | ±10< | Less Than 0.065 In. [1.6 Mm] Nominal |
11⁄2 To 31⁄2 [38.1 To 88.9], Excl | ±0.010 [0.25] | ±10 | Less Than 0.095 In. [2.4 Mm] Nominal |
31⁄2 To 51⁄2 [88.9 To 139.7], Excl | ±0.015 [0.38] | ±10 | Less Than 0.150 In. [3.8 Mm] Nominal |
51⁄2 To 8 [139.7 To 203.2], Incl | ±0.030 [0.76] | ±10 | Less Than 0.150 In. [3.8 Mm] Nominal |
Characteristics of ASTM A268 TP430Ti Stainless Steel Tube
Overwiew:
430Ti is an alternative to 430 with better formability and weldability for stamping, drawing and complex shape applications.
applications and complex shapes. It is a medium chromium ferritic stainless steel that can be used in many lightly corrosive environments.Used in many mildly corrosive environments. Due to its titanium alloying, 430Ti can be welded in all sizes without being susceptible to intergranular corrosion.
430Ti can be used at high temperatures, for example at the cold end of automotive exhaust systems.
Application:
petroleum
chemical
war and electricity industries
food processing
medical industry
machinery
hardware fields.
