Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China, |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | B111 / SB111 C68700 |
| Minimum Order Quantity: | 100KG |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C AT SIGHT |
| Supply Ability: | 1500tons/month |
| Name: | Aluminum Brass Tube | Standard: | ASTM B111 / ASME SB111 |
|---|---|---|---|
| Material: | C68700/CuZn20Al2As/HAL77-2 | Type Of Productis: | Seamless Tube |
| TPI: | BV, SGS, IEI, MOODY, DUV.... | NDT: | ET / HT |

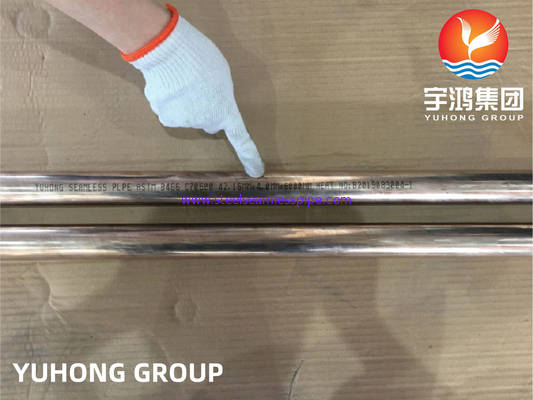

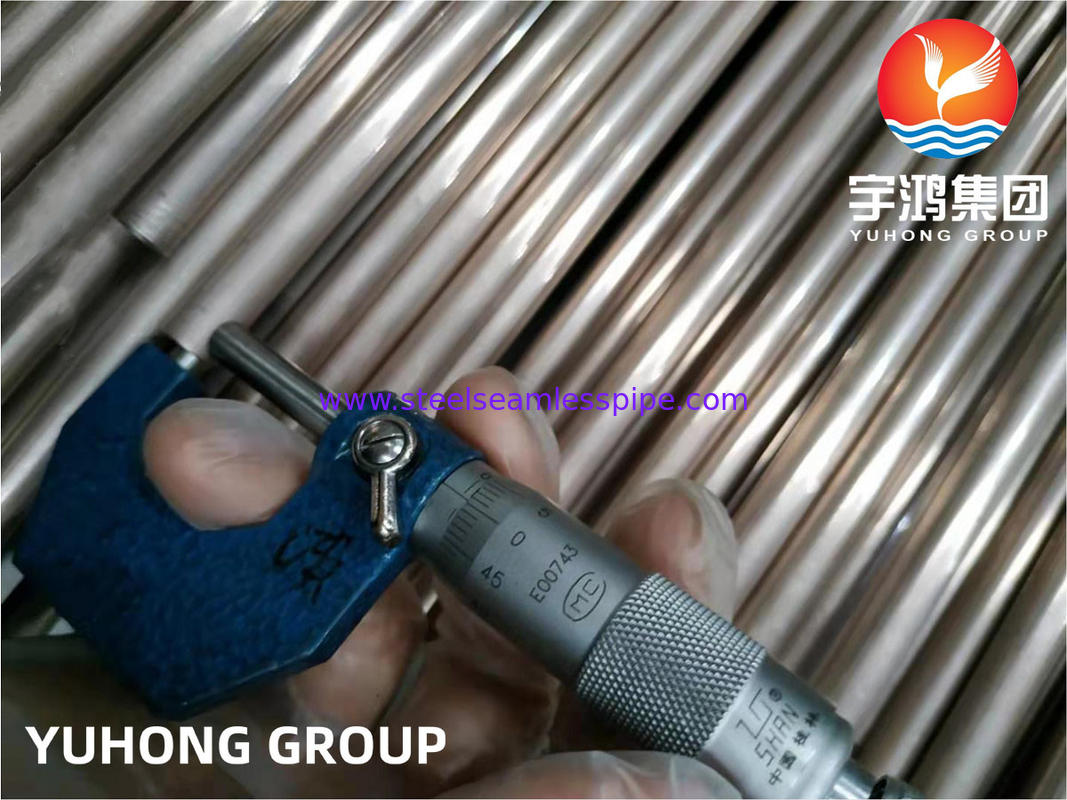

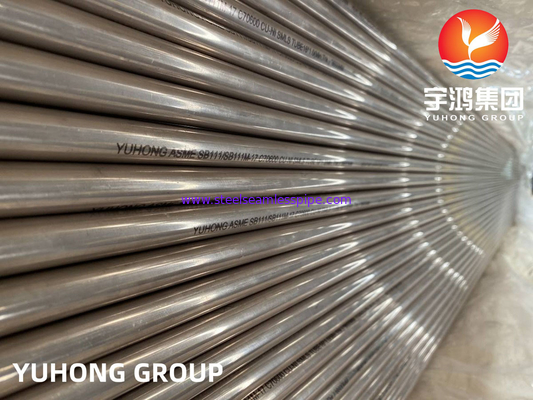

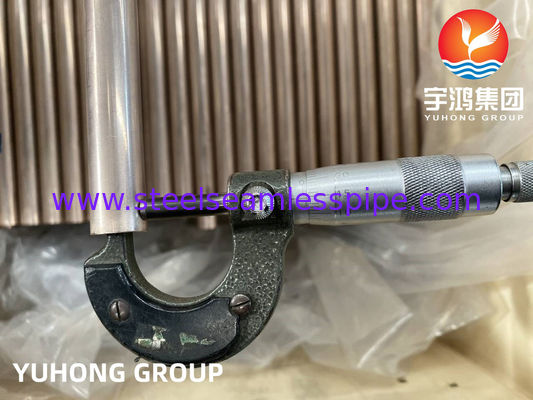

ASTM B111/ ASME SB111 C70600 Copper Nickel Tubes Cu-Ni 90/10 Seamless Tube
Yuhong Group has been dealing in stainless steel/duplex/nickel steel seamless pipes for more than 10 years, with annual sales of more than 80,000 tons of stainless steel/duplex/nickel steel seamless pipes. Our customers have covered more than 45 countries. Our stainless steel seamless pipes and tubes are widely used in mining, energy, petrochemical, chemical, food plants, paper mills, gas and fluid industries, etc. ANSI B16.10: B16.19 SCH 5S, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 60, SCH80S, XS, SCH 100, SCH 120, SCH160, XXS
Description
Metals such as copper-nickel alloys are named for their chemical composition. As the name suggests, the majority of its alloy consists of copper and a relatively small amount of nickel. While there are different grades on the market, one of the most common is a 90/10 grade copper-nickel tube, which, by the way, has an alloy that is 90% copper. In addition to the smaller 10% nickel in the alloy, the material will also contain trace amounts of elements such as manganese and iron. Although their composition contains trace amounts of these elements, the importance of adding them to cupramine-nickel 90/10 tubes can improve their performance in corrosive media. Thus, despite the subtle addition of these two elements to the alloy, their action is related to the improvement in the overall strength and corrosion resistance of the copper-nickel 90/10 tubes because of the individual metals' knack for malleability and malleability. In alloy form, the material exhibits very high ductility, allowing manufacturers to easily produce copper-nickel 90/10 welded tubes. While ductility is not the only factor to consider when using a pipe, its function, corrosion resistance and mechanical properties are also taken into account. C70600 copper-nickel is an alloy of copper further classified as copper-nickel (white copper-nickel). CW352H is the EN digital name for the material. C70600 is the UNS number. In addition, the EN chemical name is CuNi10Fe1Mn. The British Standard (BS) is CN102. The industry name is white copper 90/10.
Chemical composition of UNS C70600 copper nickel alloys
|
Element |
Content (%) |
|
Cu |
88.7 |
|
Fe |
1.3 |
|
Ni |
10.0 |
Mechanical Structure Of 90/10 Copper Nickel Tube
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.1 g/cm3 | 1443 °C (2430 °F) | Psi – 35,000, MPa – 241 | Psi -80,000, MPa -551 | 30 % |
UNS C70600 Welded Tubes Equivalent
| STANDARD | UNS | WERKSTOFF NR. |
| Cupro Nickel 90/10 | C70600 | 2.0872 |
Applications
