Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | UNS N08825, Incoloy 825, Alloy 825 |
| Minimum Order Quantity: | 3 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case / Pallet |
| Delivery Time: | 10-60 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM B564, ASME SB564 | Material Grade: | UNS N08825, Incoloy 825, Alloy 825 |
|---|---|---|---|
| Product Name: | Nickel Alloy Weld Neck Flange | Type: | Threaded Flange,Slip On Flange,Socket Weld Flange,Weld Neck Flange,LAP Joint Flange |
| Size: | 1/2"-48" | Technics: | Froged |
| Pressure: | Class150/300/600/9001500/2500 | Process: | Forging+machining+heating Treatment |
| Surface Treatment: | Heat Treatment,Galvanized,pickeling | Applications: | Construction,Heat Exchanger,oil And Gas,Industry,boiler |

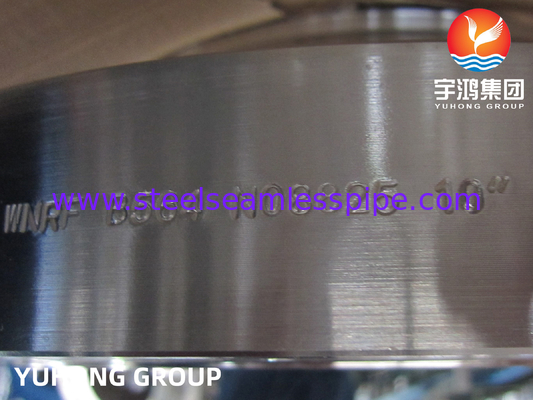

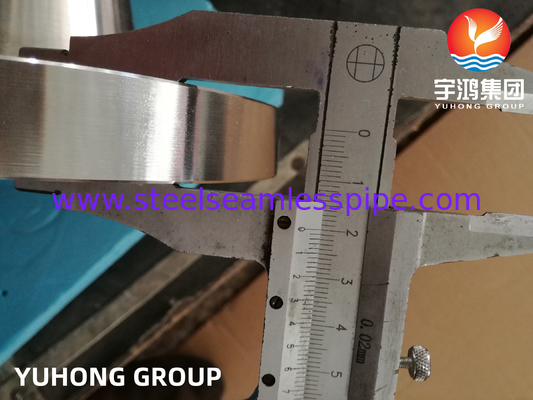

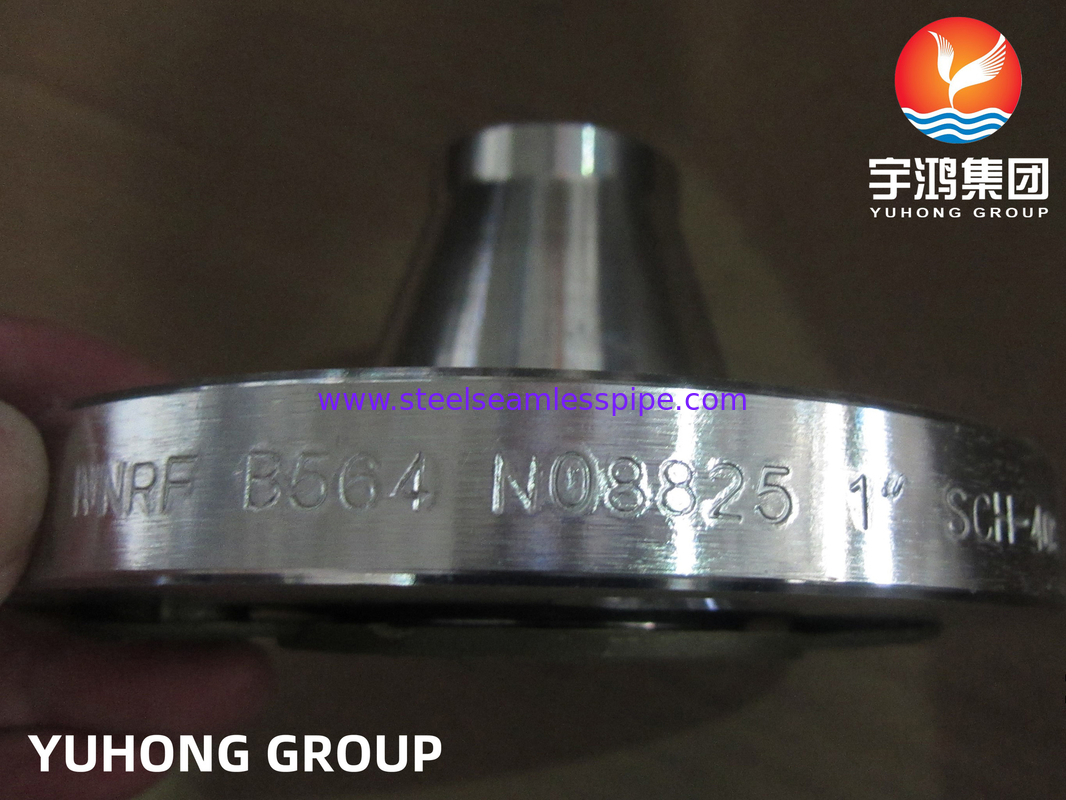

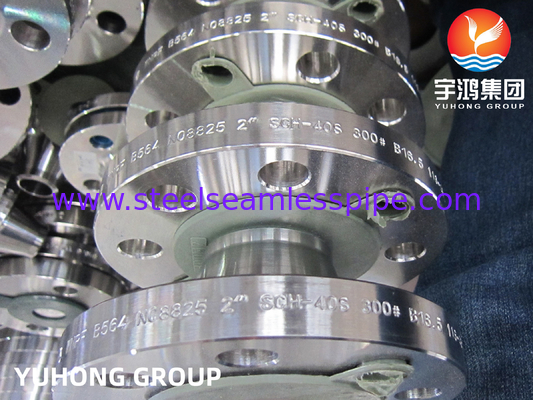

ASTM B564 UNS N08825, Incoloy 825 Nickel Alloy Steel Weld Neck RF Flange B16.5
ASTM B564 Incoloy 825 is a nickel-iron-chromium alloy with additions of molybdenum and copper. This nickel alloy steel has exceptional resistance to many corrosive environments. It's similar to alloy 800 but has improved resistance to aqueous corrosion. It has excellent resistance to both reducing and oxidizing acids, to stress-corrosion cracking, and to localized attack such as pitting and crevice corrosion. Incoloy 825 has resistant to sulfuric and phosphoric acids. This nickel alloy steel is used for chemical processing, pollution-control equipment, oil and gas well piping, nuclear fuel reprocessing, acid production, and pickling equipment. These flanges have good ductility and impact strength. At the normal temperatures, it possesses good creep rupture strength. Moreover, its tensile properties are enhanced at room temperatures too. It retains good structural stability after the metal treatment process.
Equivalent Grades:
| Grade | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
| BS | En | No | AFNOR | ||||
| Incoloy 825 | N08825 | NA 16 | NiCr21Mo | 2.4858 | NFE30C20DUM | ЭП703 | NCF 825 |
Specifications:
| Size | 1/2" (15 NB) to 48" (1200NB) |
| Pressure Rating | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Standards | ANSI/ASME B16.5 |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
Chemical Compostion:
| Manganese | ≤1 |
| Sulfur | ≤0.03 |
| Chromium | 19.5-23.5 |
| Molybdenum | 2.5-3.5 |
| Copper | 1.5-3 |
| Silicon | ≤0.5 |
| Aluminum | ≤0.2 |
| Titanium | 0.6-1.2 |
| Carbon | ≤0.05 |
| Nickel | 38-46 |
| Iron | ≥22 |
Mechanical Strength:
| Elongation | Density | Tensile Properties | Melting Point | Yield Properties |
| 30 % | 8.14 g/cm3 | Psi – 80,000 , MPa – 550 | 1400 °C (2550 °F) | Psi – 32,000 , MPa – 220 |
Applications:
Power Generation
Gas Processing
Pharmaceuticals
Chemical Equipment
Petrochemical Equipment
Sea Water Equipment
Heat Exchangers & Condensers
Pulp and Paper Industry
Off-Shore Oil Drilling Companies
