Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | TP316 |
| Minimum Order Quantity: | 500kgs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case / Iron Case |
| Delivery Time: | Depending on QTY |
| Payment Terms: | T/T, L/C at sight |
| Supply Ability: | 100 tons per month |
| Product Name: | Stainless Steel U Bend Tube | Standard: | ASTM A213/ASME SA213 |
|---|---|---|---|
| Material Grade: | TP316L | Length: | Single, Random |
| Technique: | Cold Rolled And Cold Drawn | NDT: | HT, ET, UT Etc. |
| Application: | Tubular Heat Exchanger/Industrial Heating | ||
| High Light: | TP316L Stainless Steel U Bend Tube,Food U Bend Tube,ASTM A213 Condenser Tube |
||

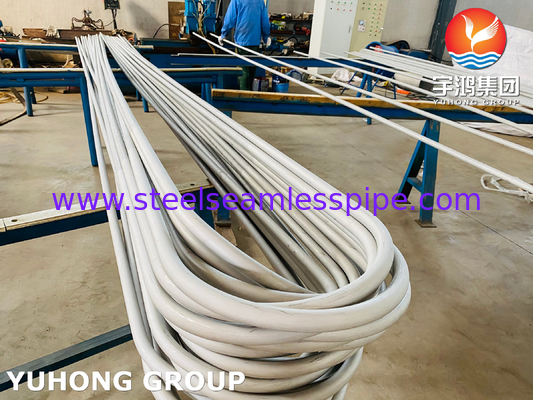

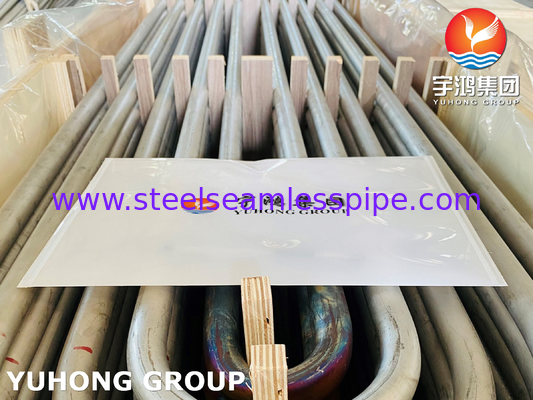

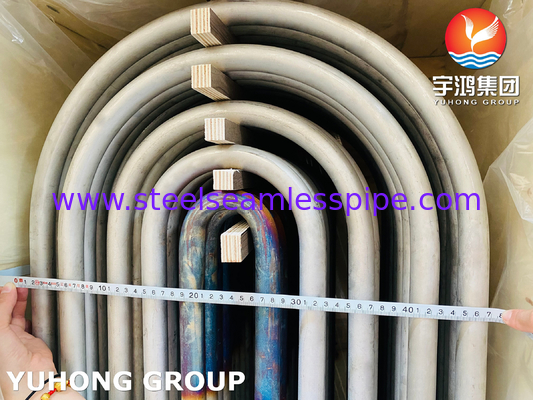

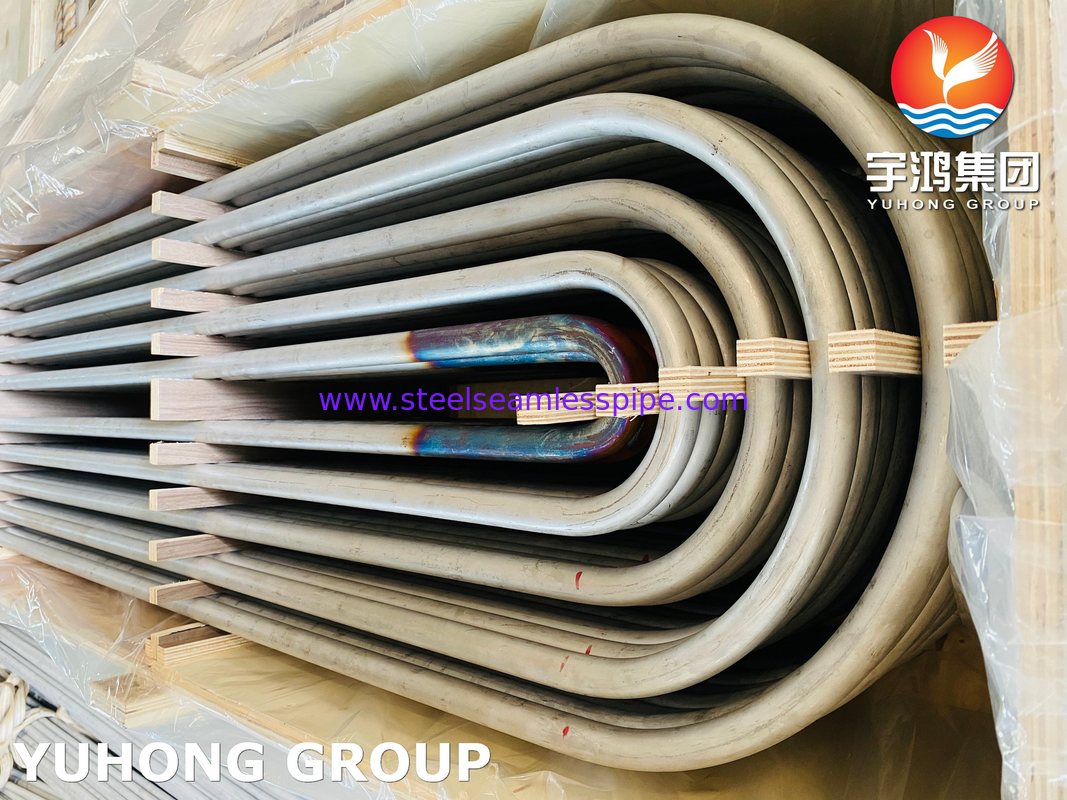

What is Stainless Steel U Bend Tube?
Stainless steel U-tube is also known as anisotropic heating tube. In the high-temperature stainless steel seamless tube uniformly distributed high-temperature resistance wire in the gap part densely filled with thermal conductivity and insulation properties are good crystalline magnesium oxide powder, this structure is not only advanced, high thermal efficiency, and uniform heating, when the high-temperature resistance wire in the electric current through the resulting heat through the crystalline magnesium oxide powder diffusion of the surface of the metal tube, and then transferred to the heated parts or water to achieve the purpose of heating.
Simple structure, high thermal efficiency, good mechanical strength, good adaptability to harsh environments. Stainless steel U-tube can be used for the heating of various liquids and acid and alkali salts, and also adapts to the heating and melting of metals with low solubility point (lead, zinc, tin, pasteurized alloy).
Characteristic of ASTM A213 TP316LStainless Steel U Bend Tube
316L stainless steel grade is an austenitic stainless steel containing molybdenum. 316L is more resistant to general corrosion and pitting and crevice corrosion than conventional chromium-nickel austenitic stainless steels such as 304.
316L stainless steel also offers higher creep, stress-rupture, and tensile strength at elevated temperatures. Recommended temperature ranges include -255°C to 605°C (-425°F to 1200°F).
In addition to excellent corrosion resistance and strength properties, alloys 316 and 316L chromium-nickel-molybdenum alloys also offer excellent manufacturability and malleability, which is typical of austenitic stainless steels, 316L is often used in marine environments.
Equivalent Material Grade ASTM A213 TP316L
| Standard | SS 316L |
| WERKSTOFF NR. | 1.4404 / 1.4435 |
| UNS | S31603 |
| JIS | SUS 316L |
| BS | 316S11 / 316S13 |
| GOST | 03Ch17N14M3 / 03Ch17N14M2 |
| AFNOR | Z3CND17‐11‐02 / Z3CND18‐14‐03 |
| EN | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Mechanical Properties of ASTM A213 TP316L
| Tensile Strength(Mpa) | Yield Point(Mpa) | Elongation(%) | Elongation(%) | |
|---|---|---|---|---|
| 316L | 485 | 170 | 35 | 25 |
| 1.4404 | 490-690 | 190 | 40 | 30 |
Chemical Composition of ASTM A213 TP316L
| C | Mn | P | S | Si | Ni | Cr | Mo | N | |
|---|---|---|---|---|---|---|---|---|---|
| 316L | 0.035 | 2.00 | 0.045 | 0.030 | 1.0 | 10-14 | 16-18 | 2-3 | |
| 1.4404 | 0.03 | 2.00 | 0.040 | 0.015 | 1.0 | 10-13 | 16.5-18.5 | 2-2.5 | 0.11 |
Dimensional Tolerance of ASTM A213 TP316L
| SPECIFICATION | SIZE OD RANGE INCHES | TOLERANCES | |||
|---|---|---|---|---|---|
| O.D. | WALL | ||||
| PLUS | MINUS | PLUS | MINUS | ||
| ASTM-A-213 | Under 1.000 | .004" | .004" | 20% | 0% |
| ASME-SA-213 | 1.000 to 1.500 | .006" | .005" | 20% | 0% |
| Cold Finished Seamless | 1.501 to 1.999 | .008" | .008" | 22% | 0% |
| Heat Exchanger Tube | 2.000 to 2.499 | .010" | .010" | 22% | 0% |
| Minimum Wall | 2.500 to 2.999 | .012" | .012" | 22% | 0% |
| 3.000 to 4.000 | .015" | .015" | 22% | 0% | |
| 4.001 to 5.000 | .015" | .025" | 22% | 0% | |
Application
Heat Exchanger
Condenser
Food equipment
Refrigeration Equipment
Automotive
